Quick Details
-
Memory Type:
-
DDR3
-
Graphics Card Type:
-
Integrated-need CPU support
-
Chipset:
-
Intel Haswell I3/I5/I7
-
FSB / HT:
-
2.0GHz
-
Brand Name:
-
Fodenn
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-

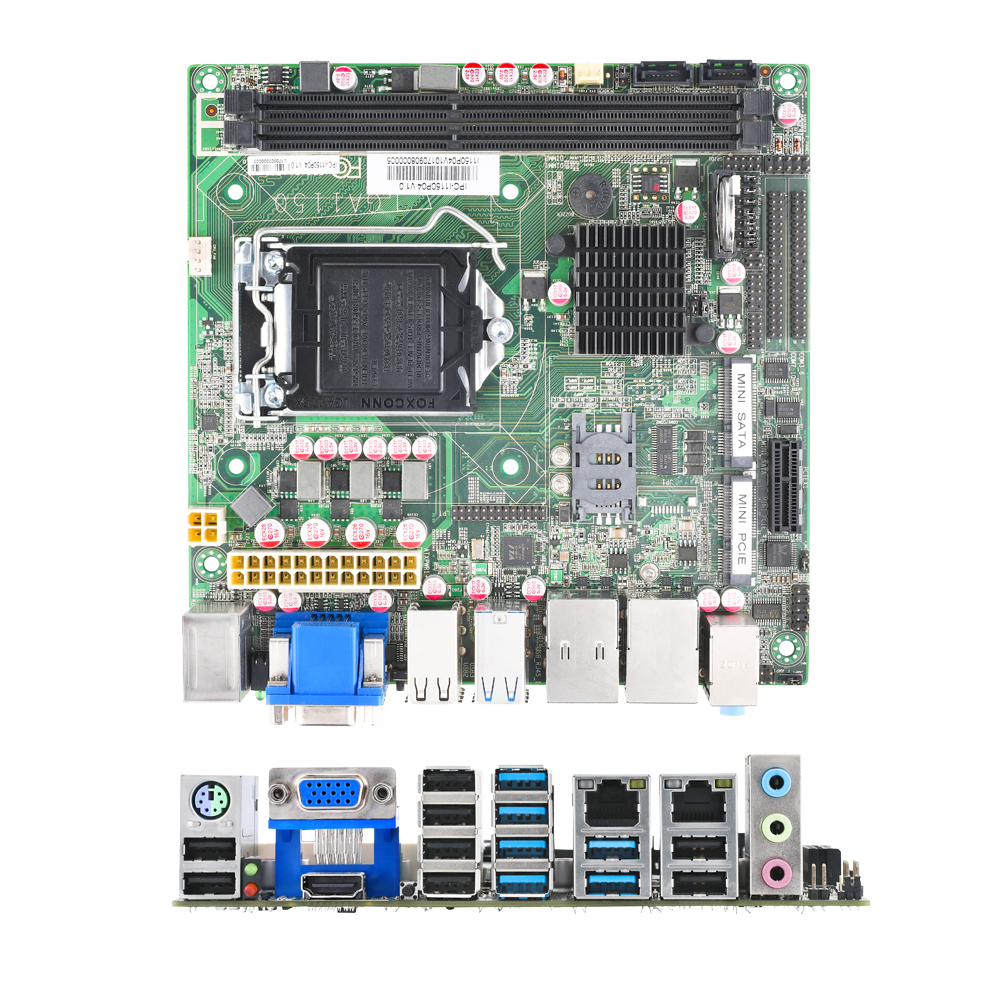

Standard MINI-ITX Industrial Motherboard
-
CPU:
-
Intel Haswell I3/I5/I7
-
System Memory:
-
2*DIMM DDR3/1333/1600 1.5V
-
Storage:
-
1*SATA3.0,1*SATA2.0,1*MSATA
-
Network:
-
RTL 8111EGigabit
-
Operating System:
-
WIN7/8/8.1/LINUX/UNIX
-
LAN:
-
2*RJ45
-
COM:
-
10COM(COM2 suppoert RS422/RS485)
-
USB:
-
14*USB(6*USB3.0+8*USB2.0)
-
Dimension:
-
170MM*170MM
Quick Details
-
Maximum Ram Capacity:
-
16GB
-
Application:
-
Industrial
-
Form Factor:
-
X86
-
Memory Type:
-
DDR3
-
Graphics Card Type:
-
Integrated-need CPU support
-
Chipset:
-
Intel Haswell I3/I5/I7
-
FSB / HT:
-
2.0GHz
-
Brand Name:
-
Fodenn
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
Standard MINI-ITX Industrial Motherboard
-
CPU:
-
Intel Haswell I3/I5/I7
-
System Memory:
-
2*DIMM DDR3/1333/1600 1.5V
-
Storage:
-
1*SATA3.0,1*SATA2.0,1*MSATA
-
Network:
-
RTL 8111EGigabit
-
Operating System:
-
WIN7/8/8.1/LINUX/UNIX
-
LAN:
-
2*RJ45
-
COM:
-
10COM(COM2 suppoert RS422/RS485)
-
USB:
-
14*USB(6*USB3.0+8*USB2.0)
-
Dimension:
-
170MM*170MM
Features
1.Intel Haswell Highspeed processor
2.LGA 1150 port MINI industrial embedded motherboard
3.Support VGA+HDMI sync/asynchronous display
4.Support DDR3 desktop memory
5.Support 10 COM(COM1/2 Support RS422/485) Support 14 USB port (6*USB3.0+8*USB2.0)
6.Onboard 1 MSATA port Onboard 1 MINIPCIE
Specification
|
Processor
|
CPU
|
Intel Haswell i3/i5/i7processor
|
||
|
|
Socket Type
|
LGA 1150 Socket CPU
|
||
|
|
BIOS
|
AMI EFI 64Mbit
|
||
|
|
Chipset
|
H81
|
||
|
Memory
|
Slot/Type
|
2*DIMM DDR3/1333/1600 1.5V
|
||
|
|
Maximum Memory
|
16GB
|
||
|
Display
|
GPU
|
Intel HD Graphics
|
||
|
|
Out-put Port
|
VGA+HDMI
|
||
|
Audio
|
ALC 662
|
1*LINE-OUT，I*MIC IN，1*LINE-IN，support power amplifier
|
||
|
Network card
|
RTL 8111E Gigabit LAN
|
2*RJ45
|
||
|
Other Function
|
Watchdog
|
256Levels，Programmable 0-255 Seconds/min
|
||
|
Rear I/O Port
|
Display Port
|
VGA+HDMI
|
||
|
|
LAN Port
|
2*RJ45 Gigabit
|
||
|
|
USB Port
|
2*USB3.0, 8*USB2.0 Port
|
||
|
|
Audio Port
|
2*LINE-OUT，1*MIC-IN，1*LINE-IN
|
||
|
|
PS/2 Port
|
1*PS/2 Two in one
|
||
|
Expanable Port
|
LPT Pin
|
1*LPT Pin
|
||
|
|
1*PCIE
|
1*PCIEX1 SLOT
|
||
|
|
COM Pin
|
1-10*COM Pin, COM1、COM2 Support RS422/RS485 Support 5V/12V power supply
|
||
|
|
COM Pin
|
1-10*COM Pin, COM1、COM2 Support RS422/RS485 Support 5V/12V power supply
|
||
|
|
MINI-PCIE
|
1*full length MINI-PCIE expandable 3G/WIFI/4G
|
||
|
|
MSATA
|
1*MSATA
|
||
|
Storage
|
SATA Port
|
1*SATA3.0,1*SATA2.0，1*MSATA
|
||
|
Physical parameters
|
|
|
||
|
Operating System
|
WIN7,WIN8，WIN8.1，LINUX，UNIX
|
|
||
|
Dimensions
|
170MMX170MM
|
|
||
|
Environment
|
Working Temperature: 0-60℃
|
|
||
|
|
Relative Humidity: 0-95%RH
|
|
||
