Trusted factory 20ft 40ft container lifting spreader beam products reputatest made in Vietnam International quality

Trusted factory 20ft 40ft container lifting spreader beam products reputatest made in Vietnam International quality

FOB Reference Price: Get Latest Price

≥1 Sets

US $10200

≥5 Sets

US $10000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: Phuong Nam Phat

Product Name:: Container lifting spreader

Size:: Can be used from cont 20ft to 45 ft

Material:: special steel

Load capacity:: 40 tons

Charging:: none

Keyword:: Container spreader

Application:: Construction works on Seaport

Advantage:: can be controlled separately for each corner

Color:: Depend to customer

Port:: HCMC

Quick Details

Warranty:: 1 Year

Weight (KG):: 2200

Place of Origin:: Ho Chi Minh City, Vietnam

Brand Name:: Phuong Nam Phat

Product Name:: Container lifting spreader

Size:: Can be used from cont 20ft to 45 ft

Material:: special steel

Load capacity:: 40 tons

Charging:: none

Keyword:: Container spreader

Application:: Construction works on Seaport

Advantage:: can be controlled separately for each corner

Color:: Depend to customer

Port:: HCMC

Product Description

BASIC INFORMATIONS	40 FT	20 FT
Weight	4400 kg	2200 kg
Gross load	40000 kg	36000 kg
Load level	Φ44	Φ42

Auto twist Container Spreader Descriptions:

The container spreader is a device used for lifting, loading, unloading containers in the seaport, on vessels. The spreader can be used on a container crane.

Mechanism working of container spreaders:

The spreader used for containers has a locking mechanism at each corner that attaches the four corners of the container. The spreader can be used with a container crane or any other machinery to lift containers. The twist locks are activated by landing and lifting the spreader from the container by the crane operator.

Especially, They are also used under mobile harbor cranes, as well as spare spreaders. No hydraulic or electric systems are needed.
The common size of container spreaders:
The semi-automatic spreader is designed for the handling of 20 ft/ 40 ft ISO containers with single or double hook jib cranes, in ports, or on vessels.

Technical specifications of Auto twist Container Spreader

The fixed spreader is a special spreader for lifting standard 20 ft / 40ft containers. It is all- mechanical, without aby electric or hydraulic components. The spreader has the function of mechanical automatic opening and closing the hook. It is connected with manual operation, only the pin action is needed. Opening nad closing lock indicating device is set on the spreader, so that thground staff can judge the direction of the opening and closing lock off by pin.

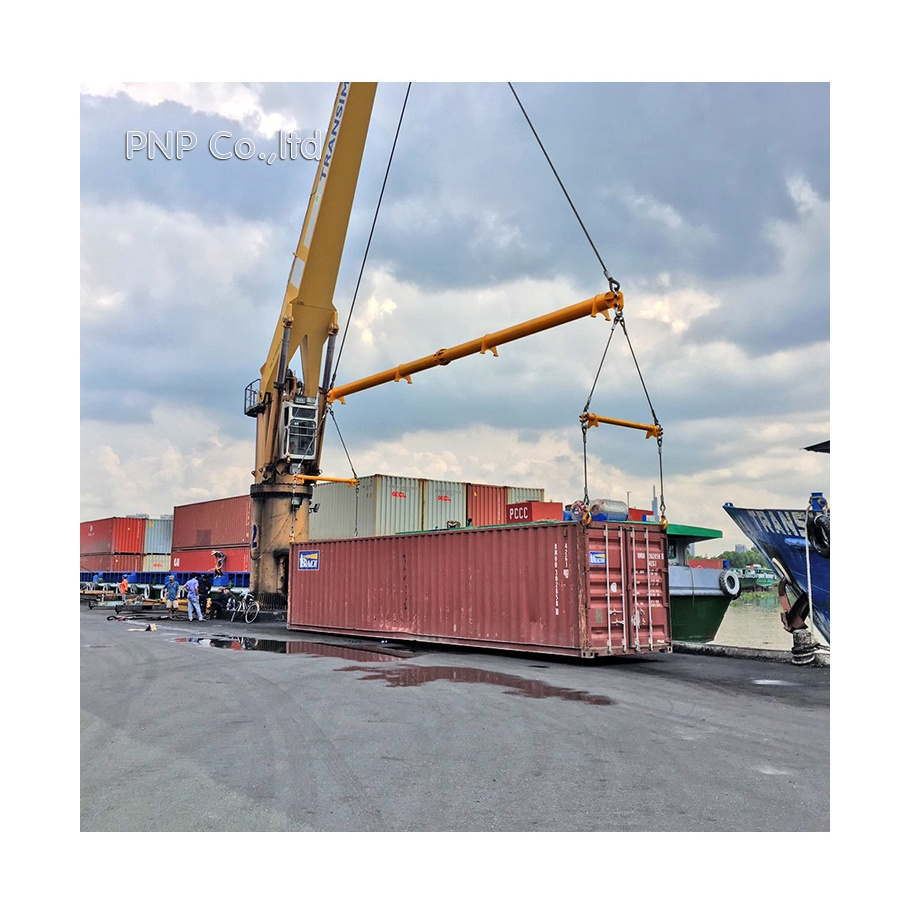

PHOTO OF CONTAINER LIFTING SPREADER

Specification

DRAWING OF CONTAINER LIFTING SPREADER

SPECIFICATIONS OF CONTAINER AUTO TWIST SPREADER

Name	Auto twist Container Spreader ( Container lifting spreader )
Place of Origin	Viet Nam
Brand name	Phuong Nam Phat
Material	Special steel
Version	2023, demounted version for easy transport including: lifting lugs and safety pins, 4 Retractable flippers flexibility.
Size overview	Size 20ft: 6.039 x 2.438mm Size 40ft:12.171 x 2.438mm
Spreader weight	40ft = 4.400 kg/pcs. 20ft = 2.200 kg/pcs without extra equipment.
Lifting capacity (SWL)	20ft = 36.000 kg, 40ft = 40.000kg, ± 10 % eccentric load
Core Components (Flipper device)	No power, fixed flippers. The spreader has the function of mechanical automatic opening and closing the hook.
Twistlock mode	ISO floating twistlock, semi-automatic.
4 Lateral Hooks included	Complete set of wires, safety Certification, Lifting Lugs, Safety Pins
Color	Colour signal yellow
Connect to lifting	Connection to the spreader through the Twistlocks of the main spreader.
Application	Construction works on Seaport/ lifting Portal crane Gantry crane Crane in the plant It works with any type of spreader and on any type of machine
Maintenance	Easy maintenance as it has only got mechanic parts.
Observe	Red/ white coloured panels indicate the crane operator of the situation of the twistlocks.
