Quick Details
-
Motor power:
-
40w
-
Repeatability accuracy("):
-
±2
-
time of changing tool and lock:
-
1s
-
max. tangential torque:
-
100 N.m
-
Motor Paraphrased:
-
1400
-
center height of high stiffness Turret:
-
40/48/51/57/77
-
MOQ:
-
1 Set
-
Sample:
-
Avilable
-
Advantage:
-
Accurate Positioning
-
Package:
-
Wooden case
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Weight (KG):
-
10
-
Brand Name:
-
DRAKE
-
Motor power:
-
40w
-
Repeatability accuracy("):
-
±2
-
time of changing tool and lock:
-
1s
-
max. tangential torque:
-
100 N.m
-
Motor Paraphrased:
-
1400
-
center height of high stiffness Turret:
-
40/48/51/57/77
-
MOQ:
-
1 Set
-
Sample:
-
Avilable
-
Advantage:
-
Accurate Positioning
-
Package:
-
Wooden case

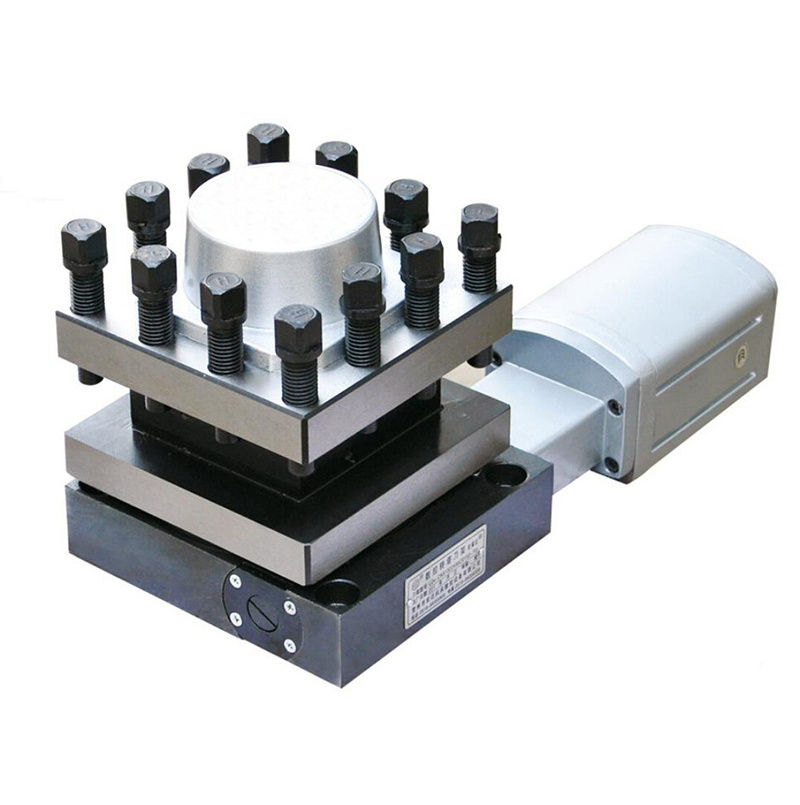

LD4 Series NC Turret Features
Model LD4 series vertical NC turret adopts the working principle of worm wheel and worm for driving, face gear coupling as fine indexing mechanism, big screw for clamping, sending signal with hall unit. It features fast change tools, high repeatability accuracy, high stiffness. It is a popular product for economic NC lathe.
NOTE:
1. Confirm various parameters when choosing models of turret. Choose the number of stations according to quantity of part procedure and complicacy.
2. Choose tool specifications according to model of machine tool and cutting force. Choose the front type or rear type tool turret according to the cutting directions of the machine tool.
3. After the mounting of boring cutter seat of horizontal turret, Self-bore the inner hole according to the size of boring bar and make a corresponding mark. The tool should be fixed in the former position in the later mounting.
4. The distance tool reaching out of upper housing distance is usually not more than 2/3 upper housing size. Please note when placing an order,if more than the limit.
5. Touch by hand or other things is forbidden when turret is running to avoid injury or damage.
6. If customers have any special requirements or changes in parameters, please offer some data and contact with our company.
2. Choose tool specifications according to model of machine tool and cutting force. Choose the front type or rear type tool turret according to the cutting directions of the machine tool.
3. After the mounting of boring cutter seat of horizontal turret, Self-bore the inner hole according to the size of boring bar and make a corresponding mark. The tool should be fixed in the former position in the later mounting.
4. The distance tool reaching out of upper housing distance is usually not more than 2/3 upper housing size. Please note when placing an order,if more than the limit.
5. Touch by hand or other things is forbidden when turret is running to avoid injury or damage.
6. If customers have any special requirements or changes in parameters, please offer some data and contact with our company.
|
|
