Quick Details
-
Brand Name:
-
GRT
-
Use:
-
Telecom, Datacom, Storage device
-
Warranty Time:
-
3 years
-
Operating wavelength:
-
850nm
-
Transmission Distance:
-
550m
-
Certification:
-
ISO9001, CE, FCC, RoHS
-
DDM diagnostic function:
-
yes
-
OEM, ODM services:
-
yes
-
Data Rate:
-
1.25Gbps
-
Commercial Case Temperature:
-
0-70°
-
Application:
-
Switches, Routers, VPN, Firewall
Quick Details
-
Type:
-
Fiber Optic Transceivers
-
Model Number:
-
G-8501DNL
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
GRT
-
Use:
-
Telecom, Datacom, Storage device
-
Warranty Time:
-
3 years
-
Operating wavelength:
-
850nm
-
Transmission Distance:
-
550m
-
Certification:
-
ISO9001, CE, FCC, RoHS
-
DDM diagnostic function:
-
yes
-
OEM, ODM services:
-
yes
-
Data Rate:
-
1.25Gbps
-
Commercial Case Temperature:
-
0-70°
-
Application:
-
Switches, Routers, VPN, Firewall

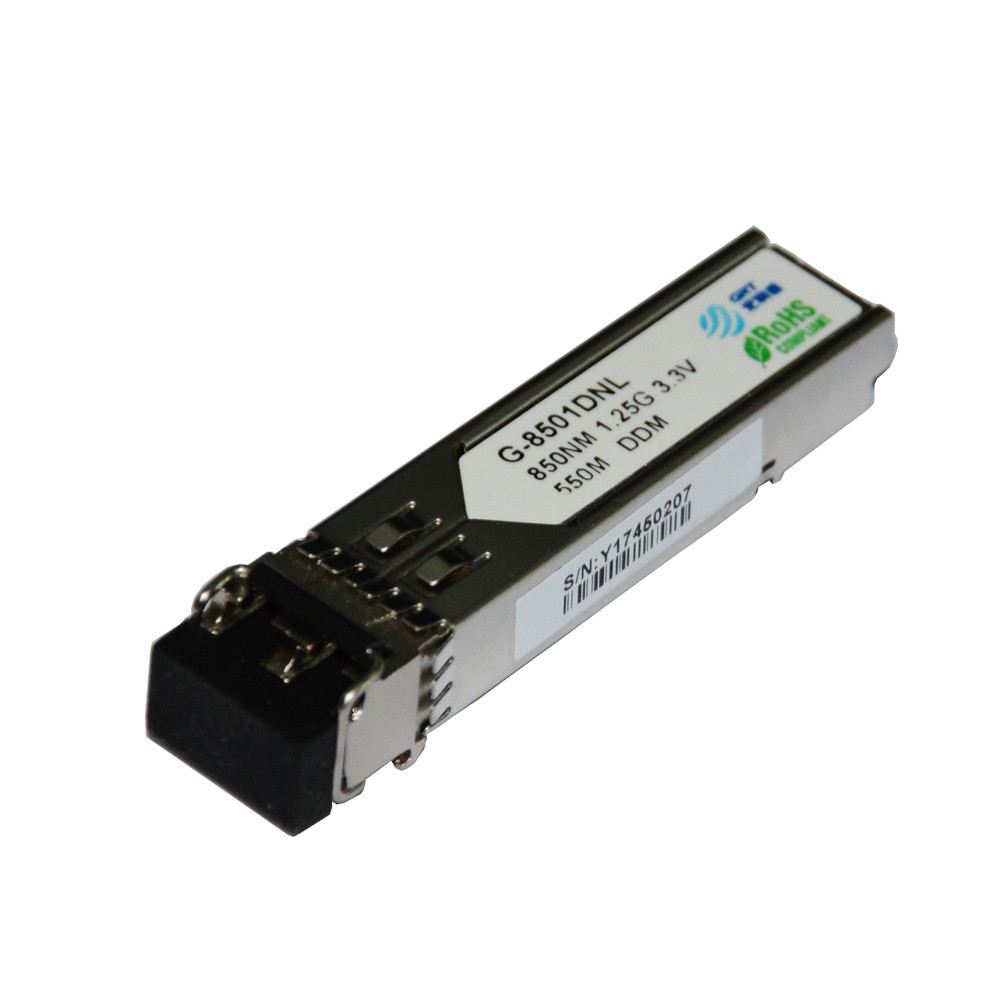

SFP Fiber Optical Transceiver Module supporting 1.25Gbps 850nm reach 550m with DDM
1. Key Features
-
- SFP package with LC connector
- 850nm vcsel laser and PIN photo detector
- Up to 550m transmission on SMF
- +3.3V single power supply
- LVPECL compatible data input/output interface
- Low EMI and excellent ESD protection
- laser safety standard IEC-60825 compliant
- Compatible with RoHS-6,lead free
- Digital Diagnostic SFF-8472 compliant
2. Application
- NIC network cards
- Switches
- Routers
- VPN equipment
- Traffic control device
- GAP
- Fiber Media Converter
- Firewall
- Storage device
- Telecommunication
- Fiber Channel
3. Customer Ordering
For each model of optical module, there're 3 levels for choice.
|
Product Level |
Description |
| Aerospace Level | made by 100% imported material |
| Telecommunication Level | 60% of material are imported |
| Network Level | chipset imported, others are of dometic brand |
4. Compatibility
All of GRT's transceiver modules are open sourced, can be coded to be fully compatible with major brands' products and devices, such as Intel, Dell, , Finisar, Arista, HP, Mellanox, Juniper, HUAWEI, H3C, etc.
For other brands' devices, please specify when ordering so that we can write corresponding codes for your easy application.
5. Normal Package & Notes on application
- Please keep the transceiver modules from dust, moist and oil contamination.
- Try to avoid the electrostatic.
- Try to avoid direct contact with sensitive areas such as connecting finger.
- We can ship by TNT, FedEx, EMS, UPS, DHL, or other named forwarders as per your request.
For the optical transceivers, standard package for 20pcs in one blister box.
