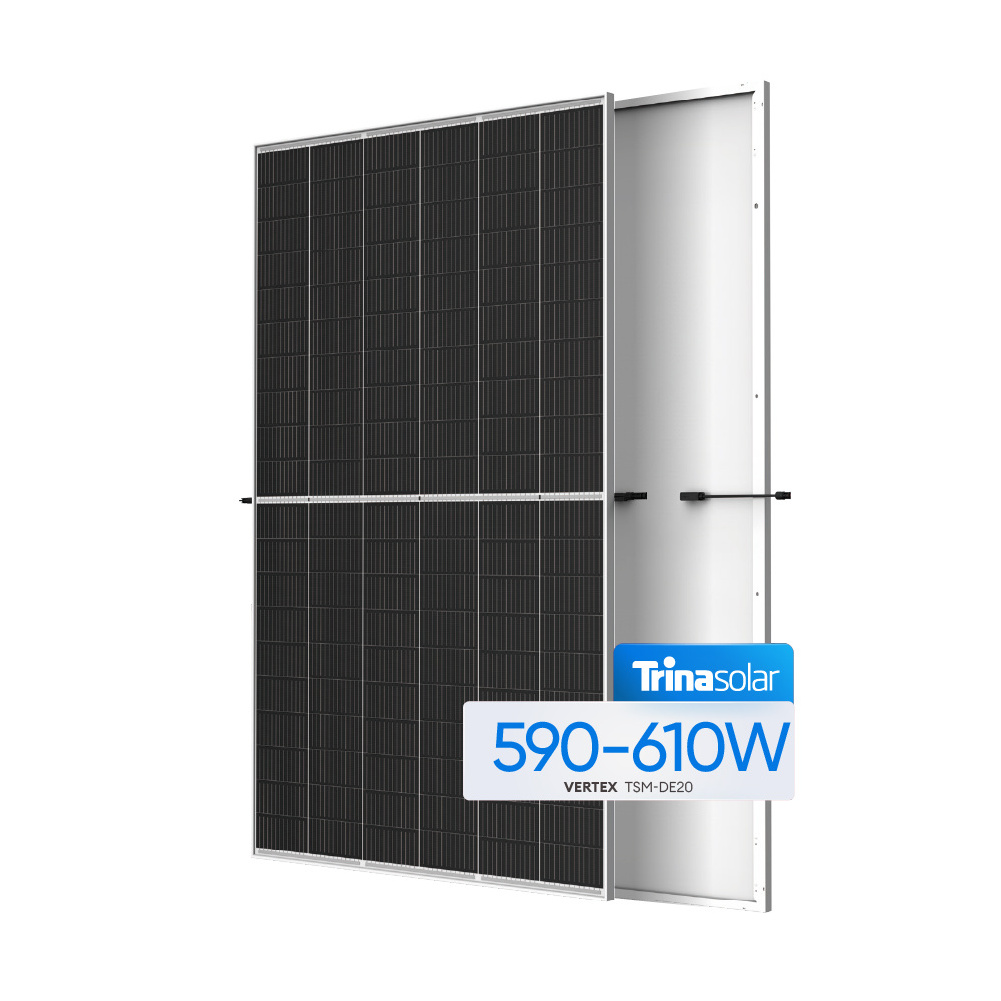

Trina Photovoltaic PV Modules 590W 600W 610W Monocrystalline Silicon Solar Panels

Trina Photovoltaic PV Modules 590W 600W 610W Monocrystalline Silicon Solar Panels

FOB Reference Price: Get Latest Price

≥36 Pieces

US $75

≥180 Pieces

US $60

≥720 Pieces

US $55

≥2808 Pieces

US $54

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Warranty:: 30 YEARS

Brand Name:: Trina

Model Number:: TSM-DE20 590-610M

Place of Origin:: Anhui, China

Panel Dimensions:: 2172*1303*33mm (85.51*51.30*1.30 inches)

Solar Cell:: N Type Mono-crystallinel

No. of cells:: 144 cells

Front Glass:: 3.2 mm (0.13 inches), HighTarmission, AR Coated Heat Stengtered Glass

Encapsulant Material:: EVA / POE

Weight:: 30.6 kg (67.5 lb)

Frame:: 33mm(1.30 inches) Anodized Aluminium Alloy

J-Box:: IP 68 rated

Connector:: MC4 EVO2/TS4*

Cables:: Photovoltaic Technology Cable 4.0mm2 (0.006 inches2)

Backsheet:: White

Quick Details

Cell size:: 210mmx210mm

Type:: PERC, Half Cell, Bifacial, Double-glass, All Black, HJT, N-TYPE, TOPCON

Panel Efficiency:: 22.5%

Warranty:: 30 YEARS

Brand Name:: Trina

Model Number:: TSM-DE20 590-610M

Place of Origin:: Anhui, China

Panel Dimensions:: 2172*1303*33mm (85.51*51.30*1.30 inches)

Solar Cell:: N Type Mono-crystallinel

No. of cells:: 144 cells

Front Glass:: 3.2 mm (0.13 inches), HighTarmission, AR Coated Heat Stengtered Glass

Encapsulant Material:: EVA / POE

Weight:: 30.6 kg (67.5 lb)

Frame:: 33mm(1.30 inches) Anodized Aluminium Alloy

J-Box:: IP 68 rated

Connector:: MC4 EVO2/TS4*

Cables:: Photovoltaic Technology Cable 4.0mm2 (0.006 inches2)

Backsheet:: White

Trina Solar Panel

Specification

Module Type: TSM-DE20 590-610M	590	595	600	605	610
Peak Power Watts-Pmax(Wp)*	590	595	600	605	610
Power Tolerance-Pmax(W)	0 ~ +5
Maximum Power Voltage-Vmpp(V)	34.0	34.2	34.4	34.6	34.8
Maximum Power Current-Impp(A)	17.35	17.40	17.44	17.49	17.53
Open Circuit Voltage-Voc(V)	41.1	41.3	41.5	41.7	41.9
Short Circuit Current-Isc(A)	18.42	18.47	18.52	18.57	18.62
Module Efficiency(%)	20.8	21.0	21.2	21.4	21.6
Maximum System Voltage	1500V DC (IEC)
Max Series Fuse Rating	30A
Operational Temperature	-40~+85ºC
Temperature Coeffcient of Pmax	- 0.34%/°C
Temperature Coeffcient of Voc	- 0.25%/°C
Temperature Coeffcient of Isc	0.04%/°C

Vertex & VertexS & Vertex N Series

675~700W Bifacial

Vertex N TSM-NEG21C.20

Cells Layout: 132 Half Cells(2x66)

Dimensions: 2384X1303X33mm
Weight: 38.3kg
Modules per box: 33pcs
Modules per 40' container: 594pcs

650~670W Mono-facial

Vertex TSM-DE21

Cells Layout: 132 Half Cells(2x66)

Dimensions: 2384X1303X33mm
Weight: 33.3kg
Modules per box: 33pcs
Modules per 40' container: 594pcs

645~665W Bifacial

Vertex TSM-DEG21C.20

Cells Layout: 132 Half Cells(2x66)

Dimensions: 2384X1303X33mm
Weight: 38.3kg
Modules per box: 33pcs
Modules per 40' container: 594pcs

590~610W Mono-facial

Vertex TSM-DE20

Cells Layout: 120 Half Cells(2x60)

Dimensions: 2172x1303x33mm
Weight: 30.6kg
Modules per box: 33pcs
Modules per 40' container: 594pcs

585~610W Bifacial

Vertex TSM-NEG19RC.20

Cells Layout: 132 Half Cells(2x60)Dimensions: 2382x1134x30mm
Weight: 33.7kg
Modules per box: 36pcs
Modules per 40' container: 720pcs

565~585W Mono-facial

Vertex TSM-DE19R

Cells Layout: 132 Half Cells(2x60)

Dimensions: 2382x1134x30mm
Weight: 28.8kg
Modules per box: 36pcs
Modules per 40' container: 720pcs

425~450W Mono-facial

Vertex S TSM-NEG9R.28

Cells Layout: 144 Half Cells(2x72)

Dimensions: 1762x1134x30mm
Weight: 21.0kg
Modules per box: 36pcs
Modules per 40' container: 936pcs

415~445W Bifacial

Vertex S TSM-NEG9RC.27

Cells Layout: 144 Half Cells(2x72)

Dimensions: 1762x1134x30mm
Weight: 21.0kg
Modules per box: 36pcs
Modules per 40' container: 936pcs

415~435W Mono-facial

Vertex S TSM-DEG9R.28

Cells Layout: 144 Half Cells(2x72)

Dimensions: 1762x1134x30mm
Weight: 21.8kg
Modules per box: 36pcs
Modules per 40' container: 936pcs

415~435W Mono-facial

Vertex S TSM-DEG9R.20

Cells Layout: 144 Half Cells(2x72)

Dimensions: 1762x1134x30mm
Weight: 21.8kg
Modules per box: 36pcs
Modules per 40' container: 936pcs .
