Quick Details
-
Weight (KG):
-
0.8 KG
-
Dimension:
-
60 * 40 * 40mm
-
Product name:
-
NEJE Master A30130 450nm laser module kit
-
Cooling Mode::
-
Temperature sensor intelligent control + 10000 rpm 40mm cooling fan
-
Heatsink Material:
-
Aircraft Aluminum + Brass Shell
-
life time:
-
10000 to 20000hours
-
Pixel:
-
2266 x 2266 px
-
Module Input:
-
40W
-
Wavelength:
-
445-450nm
-
Luminous Color:
-
blue
-
Optical OUT PUT Power:
-
FAC 5.5W
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Spare Parts Type:
-
module
-
Brand Name:
-
NEJE
-
Weight (KG):
-
0.8 KG
-
Dimension:
-
60 * 40 * 40mm
-
Product name:
-
NEJE Master A30130 450nm laser module kit
-
Cooling Mode::
-
Temperature sensor intelligent control + 10000 rpm 40mm cooling fan
-
Heatsink Material:
-
Aircraft Aluminum + Brass Shell
-
life time:
-
10000 to 20000hours
-
Pixel:
-
2266 x 2266 px
-
Module Input:
-
40W
-
Wavelength:
-
445-450nm
-
Luminous Color:
-
blue
-
Optical OUT PUT Power:
-
FAC 5.5W
1. Warehouse in Netherlands,Poland,UK,Gemany,Spain,USA, Russia
2. Accept Dropshipping and Delivery in 24 hours
3. Factory direct sell
4.Accept OEM/ODM orders
450nm Professional Continuous 40W Laser Cutting / Engraving Module Blue Light With TTL / PWM Modulation for CNC DIY kit
Product details
| Dimension | 60 * 40 * 40mm |
| Product name | NEJE Master A30130 450nm laser module kit |
| Cooling Mode: | Temperature sensor intelligent control + 10000 rpm 40mm cooling fan |
| Heatsink Material | Aircraft Aluminum + Brass Shell |
| life time | 10000 to 20000hours |
| Pixel | 2266 x 2266 px |
| Module Input | 40W |
| Wavelength | 445-450nm |
| Luminous Color | blue |
| Optical OUT PUT Power | FAC 5.5W |
A30130 Laser Moudle Feature:
- Designed for Laser Engraver, 3D printer, CNC mill, arduino project.
- FAC 5.5W Optical power output, 4mm plywood from 1 pass(speed 200), 3mm black acrylic board from 1 pass, Able to engrave stainless steel, but it needs good focus adjustment.
- More Safety, Built-in protective glass to protect eyes! Even without wearing protective glasses, the operation is more comfortable.
- More Quiet, Intelligent drive adjust the cooling fan speed according laser temperature.
- Easy use, Digital PWM wave pulse signal generator adjustable frequency duty cycle board for neje laser module.
- slidable mounting fixture is provided for easy adjustment of focus.
A30130 General Specification:

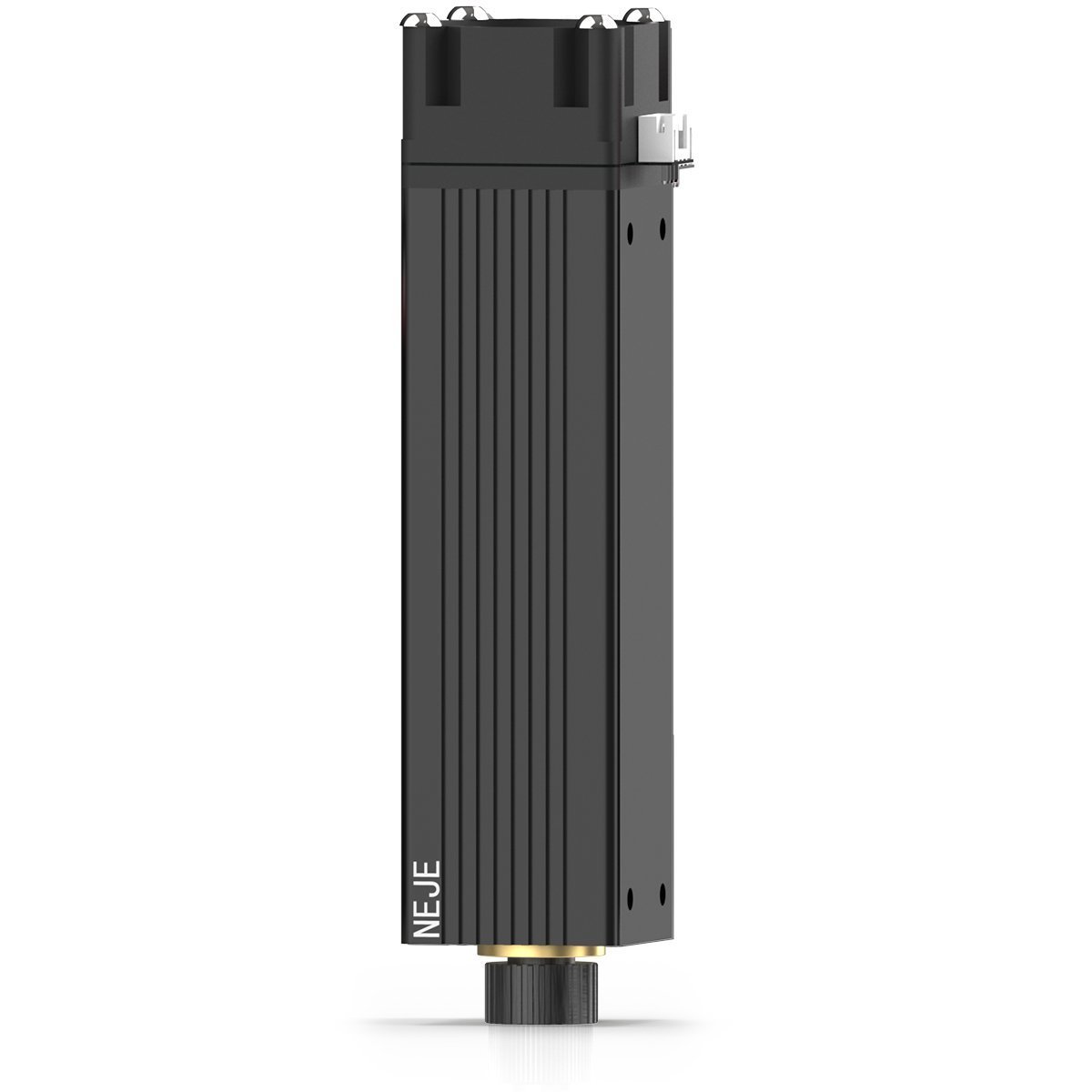

Model:NEJE Module A30130
Heatsink Material:Aircraft Aluminum + Brass Shell
Luminous Color:Blue
Section Size:40mm x 40mm
Cooling Mode:Temperature sensor intelligent control + 10000 rpm 40mm cooling fan
Dimension:60 * 40 * 40mm
Adapter Plug:5.5 2.1 port
Can Engrave:MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum
Can Not Engrave:Metal/Glass/Stone/Ceramics/PCB/Stainless Steel/Reflective Material/ Transparent Material
Technical Parameters:
Module Input:40W
Optical power output:FAC 5.5W
Wavelength:445-450nm
Beam Shape:Dot (Focusable)
Working Voltage:DC 12V
TTL&PWM Modulation:YES, Compatible with Both TTL & PWM Modulation
Input Voltage:DC12V 4A
PWM/TTL Input:DC3.3V-12V
Input Interface:PH2.0-4Pin (+,-, PWM/TTL, Temperature), 3Pin (+,-, PWM/TTL) , 2Pin+2Pin (+,-) + (PWM/TTL,-)
NOTE:Temperature interface can be disconnected,NEJE provides text instructions for temperature acquisition on wiki.
Drive Mode:External ACC
Safe temperature range:<60 ℃
Module weight:202g ( The lighter the weight, the smaller the move inertia, the better the performance )
Life Time:10000-20,000 hours
Digital PWM Wave Pulse Signal Generator Adjustable Frequency Duty Cycle for NEJE Laser Module tester board Specification
Power input: DC 12V
Output: PH2.0 4pin (12v,GND,PWM/TTL,Temperature)
mode: 3 modes (off, manual pwm, pwm / ttl in)
temperature display: YES
pwm display: yes
Manual PWM control: YES
A30130 Laser Module Kits Package Included
1 x A30130 Laser Engraving Module
1 x Laser Module Sliding fixture
1 x interface tranfer board
1 x 4 Pin Cable
1 x 2 Pin Cable
1 x 3 Pin Cable
1 x 2.5mm L-shaped wrench
1 x 5mm L-shaped wrench
1 x Air assist kit
