Quick Details
-
Panel Dimensions:
-
1182 mm / 400mm / 7mm
-
Panel Efficiency:
-
15.9%
-
Product name:
-

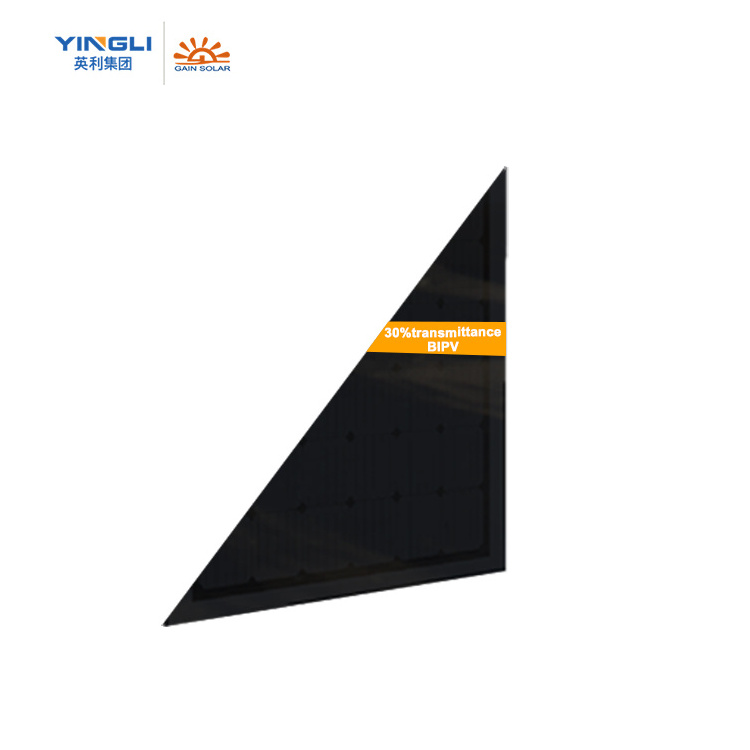

Jiasheng BIPV material
-
Warranty:
-
25 Years Power liner Guarantee
-
OEM Order:
-
Customized highly welcomed
-
Glass:
-
GG/double glass
-
Cell Type:
-
High-efficiency cell
-
Thickness of Glass:
-
3.2mm/5mm/6mm/8mm/10mm/12mm
-
Certificate:
-
CE, TUV, RoHs,Iso, CGC,CCC
-
Connector:
-
MC4 Compatible Connector
-
Weight:
-
57kg/83kg/113kg
Quick Details
-
Brand Name:
-
Yingli/Jiasheng
-
Model Number:
-
JS 180DG-18b--J220216
-
Place of Origin:
-
Hebei, China
-
Panel Dimensions:
-
1182 mm / 400mm / 7mm
-
Panel Efficiency:
-
15.9%
-
Product name:
-
Jiasheng BIPV material
-
Warranty:
-
25 Years Power liner Guarantee
-
OEM Order:
-
Customized highly welcomed
-
Glass:
-
GG/double glass
-
Cell Type:
-
High-efficiency cell
-
Thickness of Glass:
-
3.2mm/5mm/6mm/8mm/10mm/12mm
-
Certificate:
-
CE, TUV, RoHs,Iso, CGC,CCC
-
Connector:
-
MC4 Compatible Connector
-
Weight:
-
57kg/83kg/113kg
Recommend Products
|
Place of Origin:Hebei, China
|
Brand Name:Gain Solar/ Yingli Solar
|
|
Model Number:JS XXXDG-18b (XXX=Pmax)
|
Glass:low-iron tempered glass / 6mm
|
|
Size: 2094mm / 1038mm / 35mm
|
Panel Efficiency: 10.1%-10.4%
|
|
Certificate:TUV/CE,TUV/IEC61215/IEC61730/ISO
|
Warranty: 25 years Linner Warranty
|
|
Solar cell: Solar cell: Mono 36 Cell 158.75*158.75mm
|
Junction Box:IP67 Rated
|
|
Frame: Anodized Aluminium Alloy
|
Frame Color:Frame Color
|
|
Backsheet: Black and White
|
Front Glass: Temperd Glass
|
|
Connector: MC4
|
Cable: PV 4mm2
|
|
Cable:PV cable 4mm2 with MC4 Connector
|
OEM Order:Acceptable
|
|
Model Number:YLxxxD-40d 1/2 (xxx=Pmax) YLxxxD-40d 1500V 1/2 (xxx=Pmax)
|
|
|
|
|
||||
|
|
180W
|
|
175W
|
|
||||
|
|
STC
|
NOCT
|
STC
|
NOCT
|
||||
|
Power output
|
180
|
136.8
|
175
|
133
|
||||
|
Voltage at Pmax
|
20.2
|
19.2
|
20.1
|
19.1
|
||||
|
Current at Pmax
|
8.91
|
7.13
|
8.71
|
6.97
|
||||
|
Open-circuit voltage
|
24.7
|
23.4
|
24.6
|
23.3
|
||||
|
Short-circuit current
|
9.33
|
7.51
|
9.12
|
7.34
|
||||
|
Module efficiency
|
10.1%-10.4%
|
|
|
|
||||
|
Color
|
Transparent
|
|
|
|
||||
|
Power output tolerances ΔPmax
|
0-5
|
|
|
|
||||
|
Max. system voltage
|
1500VDC
|
|
|
|
||||
|
Max. series fuse rating*
|
20A
|
|
|
|
||||
Power Valley International Hotel
Time: 2006
Location: Baoding, Hebei
Capacity: 300KW Installed area:4111㎡
Gain Solar Office Building
Time: 2007
Location: Baoding, Hebei
Capacity: 26KW Installed area:945㎡
Yingli PV Exhibition
Time: 2010
Location: Baoding, Hebei
Capacity: 40KW
Installed area:544㎡
BIPV Fire Station
Time: 2010
Location: Baoding, Hebei
Capacity: 250KW Installed area:2650㎡
Yingli HQ Noisy Barriers
Time: 2011
Location: Baoding, Hebei
Capacity: 90KW Installed area:1100㎡
State Key Laboratory of Photovoltaic Materials and Technology
Time: 2010
Location: Baoding, Hebei
Capacity: 1.4MW Installed area:11618㎡
Power Valley Low-Carbon Park
Time: 2014
Location: Baoding, Hebei
Capacity: 2.39MW Installed area:27692㎡
Yuangsheng Power Valley Square
Time: 2014
Location: Baoding, Hebei
Capacity: 400KW Installed area:5114㎡
Seoul Noisy Barrier
Time: 2017
Location: Seoul, South Korea
Capacity: 30KW Installed area:214㎡
Photovoltaic+ Passive Intelligent Demonstration Building
Time: 2018
Location: Baoding, Hebei
Capacity: 100 KW Installed area:728㎡
Hefei Gongjie Office Building
Time: 2020
Location: Hefei,Anhui
Capacity: 140KW Installed area:1400㎡
Green Smart Ecological Town
Time: 2020
Location: Baoding, Hebei
Capacity: 45 KW Installed area:350㎡
