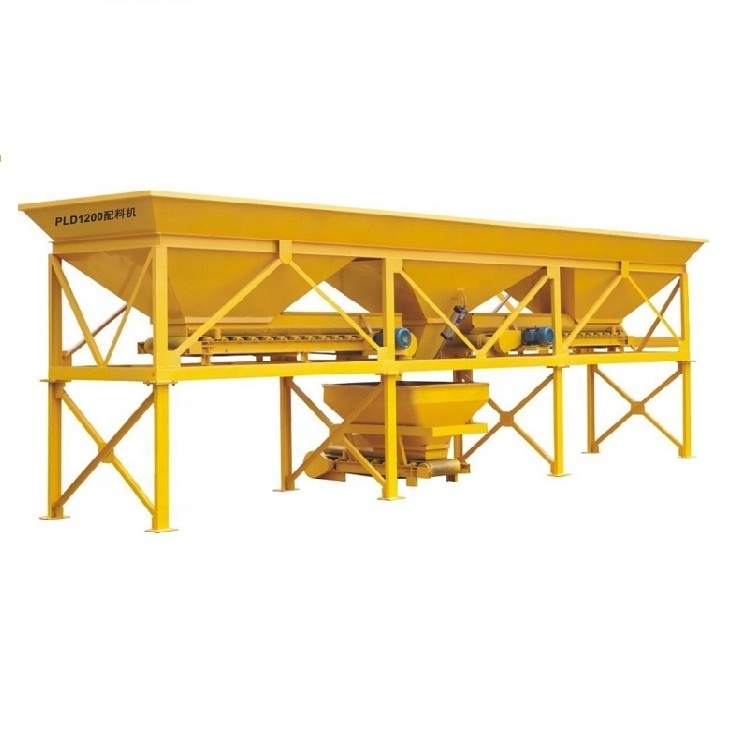

PLD Series Concrete Batching machine is a kind of equipment with automatically batching material on the front desk and using mixer together. It can automatically finishing the batching procedures of 3-6 kinds of materials (second grade concrete) such as sand,stone, cement according to users’ requirement. These serial products adopt electronic weighing, computer control, digital display,wired remote control operation, and have such advantages as accurate weighing, high precision batching, quick speed, strong control function and convenient operation. After this serial concrete batching machine with relative concrete mixer, different types and specification combined concrete mixing station can be formed.
- Product Details
- {{item.text}}
Quick Details
-
Power:
-
12KW
-
Dimension(L*W*H):
-
7500x1600x3000mm
-
Weight:
-
2500 kg
-
model number:
-
PLD1200
-
Weigh-batching hopper capacity:
-
1200L
-
each hooper capacity:
-
2.5m3
-
Total Power:
-
12KW
-
Batching species:
-
3
-
Height of Adding Material:
-
2.8m
-
belt speed:
-
1.25m/s
-
weight:
-
2500kgs
-
working size:
-
7500x1600x3000mm
-
loading size:
-
7500x1600x1500mm
Quick Details
-
Machine Type:
-
Batching machine
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
shiyue
-
Power:
-
12KW
-
Dimension(L*W*H):
-
7500x1600x3000mm
-
Weight:
-
2500 kg
-
model number:
-
PLD1200
-
Weigh-batching hopper capacity:
-
1200L
-
each hooper capacity:
-
2.5m3
-
Total Power:
-
12KW
-
Batching species:
-
3
-
Height of Adding Material:
-
2.8m
-
belt speed:
-
1.25m/s
-
weight:
-
2500kgs
-
working size:
-
7500x1600x3000mm
-
loading size:
-
7500x1600x1500mm
Products Description
simple introduction about PLD series batching machine
Technical parameters
|
items
|
specification
|
the batching machine can be customized different size and capacity according to your requirement
|
|
model number
|
PLD1200
|
|
|
Storage hopper capacity
|
3*2.5m
|
|
|
Batching accuracy(%)
|
±2
|
|
|
Theoretical Productivity
|
56m3/h
|
customized
|
|
Batching species
|
3
|
|
|
Height of Adding Material
|
2.8m
|
|
Detials
