Quick Details
-
Place of Origin:
-
Guangdong, China
-
Product name:
-

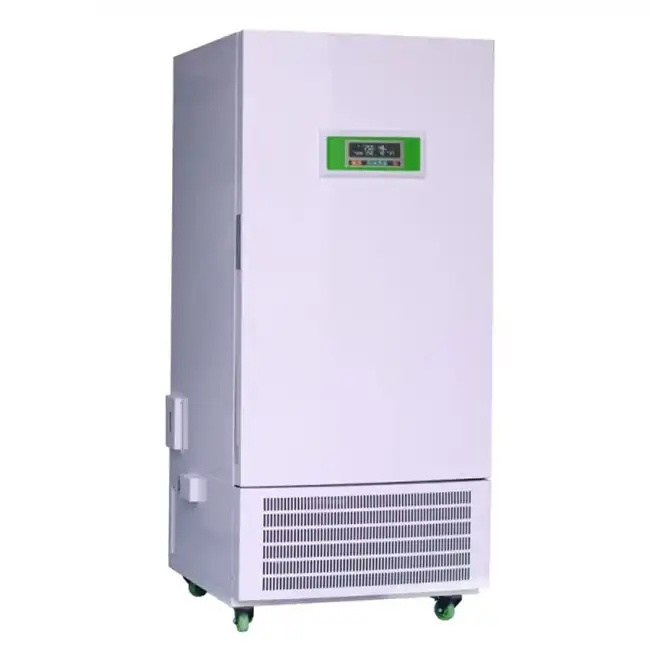

Laboratory constant temperature humidity chamber
-
Temperature Range:
-
0~65℃
-
Volume:
-
175L/275L/375L/475L/800L/1075L
-
Display Resolution:
-
0.1℃
-
Material:
-
Stainless Steel
-
Application:
-
Laboratory/Chemical/Scientific
-
Power Rating:
-
1600W
-
Display:
-
LCD
-
Power Supply:
-
220V±10%,50Hz±2%
-
Certificate:
-
CE
Quick Details
-
Warranty:
-
1 year
-
Brand Name:
-
IKEME
-
Model Number:
-
LTH-175-N
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
Laboratory constant temperature humidity chamber
-
Temperature Range:
-
0~65℃
-
Volume:
-
175L/275L/375L/475L/800L/1075L
-
Display Resolution:
-
0.1℃
-
Material:
-
Stainless Steel
-
Application:
-
Laboratory/Chemical/Scientific
-
Power Rating:
-
1600W
-
Display:
-
LCD
-
Power Supply:
-
220V±10%,50Hz±2%
-
Certificate:
-
CE
Products Description
Application:
The product has a precise temperature and humidity control system, which provides a variety of environmental simulation conditions required for industrial research and biotechnology testing, so it can be widely used in aseptic testing of pharmaceuticals, textiles, food processing, etc., and stability checking, as well as testing of raw material properties, product packaging and product life of industrial products.
Characteristics:
•
Large LCD display, multiple sets of data on one screen, menu type operation interface, simple and easy to understand, easy to operate.
•
Temperature and humidity control adopts new digital display multi-segment program control technology, high precision, no overshoot.
•
With 99 cycles of program, each cycle is divided into 30 segments, each segment 99 hours and 99 minutes of cycle steps. Almost all complex experimental processes can be satisfied.
•
The operation is automatically interrupted when the temperature exceeds the limit, and the sound and light alarm prompts the operator to ensure the safe operation of the experiment without accidents. No accident will happen.
•
The box structure adopts curved arc design, novel and beautiful modeling.
•
The working chamber is made of mirror stainless steel plate, and the shelves can be adjusted in height and assembled freely, which is convenient for the cleaning of the working chamber.The working chamber is made of mirror stainless steel plate.
•
Plastic spraying treatment on the surface of the outer case, the whole machine is beautiful and reasonable, easy to use and maintain.
•
The door of the incubator is a double door design, the inner door is tempered glass, which can directly observe the situation of cultures inside the working chamber. The outer door adopts magnetic door seal, good sealing.
•
Adopting international brand (Danfoss) compressor and double refrigeration system.
•
Adopting JAKEL tube circulation fan, with unique design of air duct structure, creating a good air circulation system to effectively ensure the temperature inside the box.Adopt JAKEL tube flow circulating fan, with unique design of air duct structure, to create a good air circulation system, effectively ensure the temperature uniformity inside the box.
•
Adopting imported brand humidity sensor and independently designed electric heat pipe humidification system to effectively ensure the humidity deviation.
•
Equipped with leakage protector.
•
Equipped with auxiliary temperature controller to ensure that in the case of the main temperature control loss of control, the product can also work properly ( Auxiliary thermostat is installed to ensure that the product can still work normally when the main temperature control is lost (for heating).
•
USB interface, can be connected to a printer or computer, can record the temperature parameter changes.
•
The working chamber is equipped with a germicidal lamp, which makes it easy to sterilize the working chamber.
Product Paramenters
|
Model
|
LTH-175-N
|
LTH-275-N
|
LTH-375-N
|
LTH-475-N
|
LTH-800-N
|
LTH-1075-N
|
|||||
|
Nominal volume (L)
|
175
|
275
|
375
|
475
|
800
|
1075
|
|||||
|
Temperature control range (℃)
|
0~65
|
|
|
|
|
|
|||||
|
Temperature resolution
|
0.1℃
|
|
|
|
|
|
|||||
|
Temperature volatility (°C)
|
High Temperature ±0.5, Low Temperature ±1
|
|
|
|
|
|
|||||
|
Temperature uniformity (°C)
|
±1 (test point 37°C)
|
|
|
|
|
|
|||||
|
Humidity control range
|
30~95%RH
|
|
|
|
|
|
|||||
|
Power rating (W)
|
1600
|
1800
|
2200
|
2250
|
4000
|
4000
|
|||||
|
Humidity fluctuations
|
±3%RH
|
|
|
|
|
|
|||||
|
refrigerants
|
R134a
|
|
|
|
|
|
|||||
|
power supply
|
220V±10%，50Hz±2%
|
|
|
|
|
|
|||||
|
Continuous running time
|
Can be operated continuously for a long time
|
|
|
|
|
|
|||||
|
Working environment (℃)
|
5~40
|
|
|
|
|
|
|||||
|
Size of operation room (cm) W×D×H
|
45×42×93
|
58×51×93.5
|
59×55×116
|
70×55×125
|
96.5×61×137
|
95×70×160
|
|||||
|
Overall Dimension (cm) W×D×H
|
63×72×170.5
|
77×74×171
|
78×87×191.5
|
88×87×199.5
|
110×93×217
|
101×90×224
|
|||||
|
Shelf (block) standard / Max.
|
3/8
|
3/8
|
3/10
|
3/12
|
3/13
|
3/14
|
|||||
|
Package size (L*W*H)cm
|
85*75*188
|
96*87*190
|
88*98*210
|
101*100*225
|
|
129*117*260
|
|||||
|
N.W/G.W(kg)
|
180/217
|
210/261
|
228/326
|
295/358
|
|
445/610
|
|||||
