Quick Details
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
HUAMEI
-
Model Number:
-
S-1219
-
Color:
-
transparent
-
Product Name:
-
quartz glass pipe made from fused quartz silica sand
-
Material:
-
99.99% pure quartz
-
Wall Thickness:
-
1mm to 5mm
-
Length:
-
10-3000mm
-
Standard:
-
ISO9001
-
Available Shape 1:
-
Both End Open Pipe
-
Available Shape 2:
-
One End Closed Tube
-
Available Shape 3:
-
Twin Tube
-
PS::
-
Milky Quartz Glass Tube is Also Available .
Quick Details
-
Type:
-
Clear Quartz Pipe
-
Application:
-
Sterilization lamp,mercury lamp,metal halide lamp
-
Outside Diameter:
-
3-300mm
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
HUAMEI
-
Model Number:
-
S-1219
-
Color:
-
transparent
-
Product Name:
-
quartz glass pipe made from fused quartz silica sand
-
Material:
-
99.99% pure quartz
-
Wall Thickness:
-
1mm to 5mm
-
Length:
-
10-3000mm
-
Standard:
-
ISO9001
-
Available Shape 1:
-
Both End Open Pipe
-
Available Shape 2:
-
One End Closed Tube
-
Available Shape 3:
-
Twin Tube
-
PS::
-
Milky Quartz Glass Tube is Also Available .

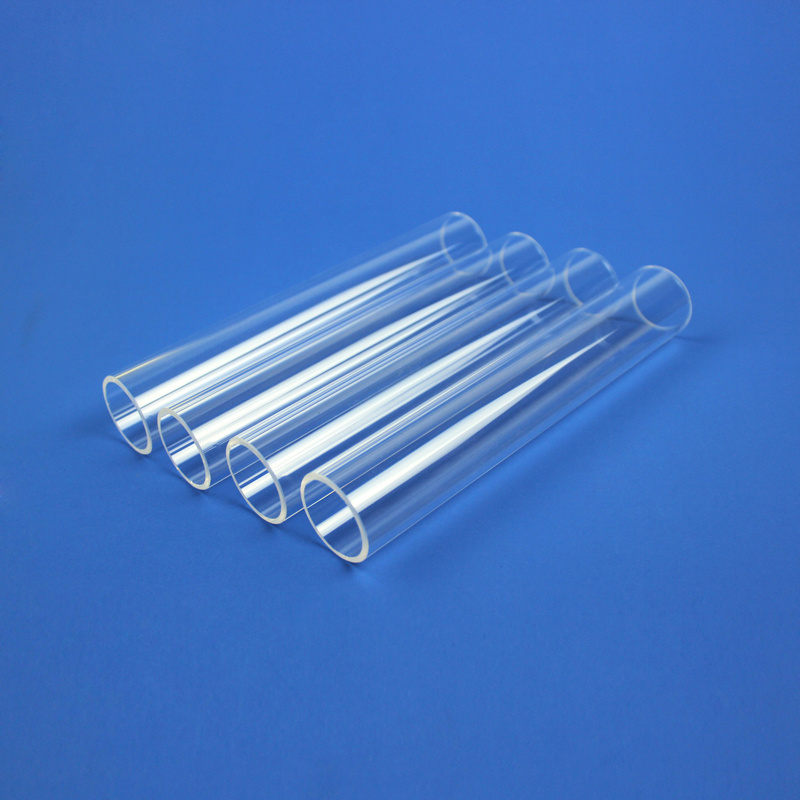

quartz glass pipe made from fused quartz silica sand
Features of quartz glass pipe made from fused quartz silica sand as follows :
1.High purity made of 99.99%-99.9999% pure quartz.
2.Strong Hardness, Can reach Morse level 7.
3.High temperature resistance, can work under 1200°C continuously,
and in short time can even work under 1500°C.
4. Acid and Alkali resistance
Except hydrofluoric acid, quartz glass does not react with any acid and base except hydrofluoric acid. The stability is 30 times of the ceramic, and 150 times of stainless steel
4. Electric insulation , it is 10000 times of usual glass.
5. High light transmittance , it is different from 85%-95% depend on different spectrum.
6.Excellent thermal shock stability ,Small thermal expansion coefficient , it is only 5.5 × 10-7/ ℃ .
|
Compressive Strength |
>1100Mpa |
Coefficient of thermal expansion |
5.5×10-7cm/cm.°C |
|
Bending Strength |
67Mpa |
Melting temperature |
1750~1800°C |
|
Tensile Strength |
48.3Mpa |
The temperature for a short time |
1500°C |
|
Poisson's Ratio |
0.14~0.17 |
The temperature for a long time |
1200°C to 1300 °C |
|
Elastic Modulus |
71700Mpa |
Resistivity |
7×107Ω.cm |
|
Shearing Modulus |
31000Mpa |
Dielectric Strength |
250~400Kv/cm |
|
Moths Hardness |
5.3~6.5(Moths Scale) |
Dielectric Constant |
3.7~3.9 |
|
Deformation Point |
1650°C |
Dielectric absorption coefficient |
<4×104 |
|
Specific Heat(20~350°C) |
670J/kg °C |
Dielectric loss coefficient |
<1×104 |
|
Thermal Conductivity |
1.4W/m °C |
Property of quartz glass pipe made from fused quartz silica sand |
|
Quartz glass pipe made from fused quartz silica sand is widely used in lights, such as sterilization lamp, mercury lamp, metal halide lamp;Diffusion tube, protection tube, MCVD, PCVD, boiler and water treatment.
Shipping
Delivery the quartz glass pipe made from fused quartz silica sand within 1-7days after the payments by sea or by express, usually EMS,Fedex,DHL,UPS per your request.
1.sample :
We could like to give you suitable suggestion about quartz glass pipe made from fused quartz silica sand according to your detail application.
supply sample as required within 2-5days .
as the sample,we usually deliveried it by EMS,DHL,or SF-express.
So,customer can receive the sample within 4-10days .
2.OEM
accept OEM orders
3. after-sales service
We promise that we can change or Refund the products if there are any quality problem.
Contact me, click Send NOW!
