Quick Details
-
Power:
-
3kw
-
Dimension(L*W*H):
-
1500*1200*1300mm
-
Weight (KG):
-
500
-
Product name:
-
Automatic Mortising Machine
-
Model:
-
MS-3112
-
Max.mortise length:
-
150mm
-
Max.mortise hight:
-
16mm
-
Max. mortise depth:
-
65mm
-
Main spindle speed:
-
9000r/min
-
Gradient of workbench:
-
±25 degree
-
Installed power:
-
3kw
-
Overall dimensions:
-
1500*1200*1300mm
-
Total weight:
-
500kg
Quick Details
-
Application:
-
Factory
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ShunTongJia
-
Power:
-
3kw
-
Dimension(L*W*H):
-
1500*1200*1300mm
-
Weight (KG):
-
500
-
Product name:
-
Automatic Mortising Machine
-
Model:
-
MS-3112
-
Max.mortise length:
-
150mm
-
Max.mortise hight:
-
16mm
-
Max. mortise depth:
-
65mm
-
Main spindle speed:
-
9000r/min
-
Gradient of workbench:
-
±25 degree
-
Installed power:
-
3kw
-
Overall dimensions:
-
1500*1200*1300mm
-
Total weight:
-
500kg
Specification
|
Model
|
MS-3112
|
|
|
|
|||
|
Max. mortise length
|
150mm
|
|
|
|
|||
|
Max. mortise height
|
16mm
|
|
|
|
|||
|
Max. mortise depth
|
65mm
|
|
|
|
|||
|
Main spindle speed
|
9000r/min
|
|
|
|
|||
|
Gradient of workbench
|
±25゜
|
|
|
|
|||
|
Installed power
|
3kw
|
|
|
|
|||
|
Overall dimensions
|
1500*1200*1300mm
|
|
|
|
|||
|
Total weight
|
500kg
|
|
|
|
|||
Features：

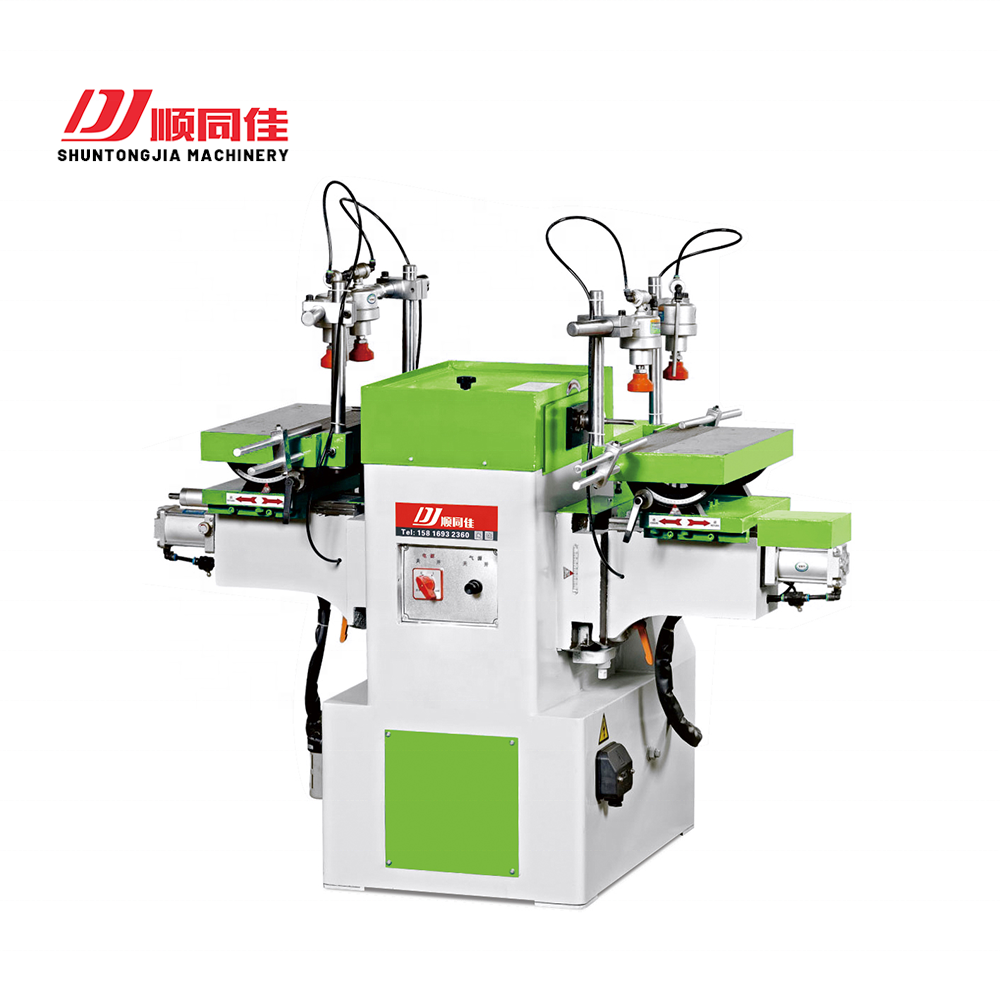

The machine suit for mortising of doors, tables or chairs. With adjustable working width through the digital display and 30 tiltable working table allowing angle mortising. Spindle assembly sliding along precising guide rail, insure processing quality and efficiency.
Product packaging
Before each machine is shipped, we clean it and brush with oil to lubricate it. Packing with pearl cotton and plastic film can better protect the appearance of the machine. Packing with wooden cases can ensure that the machine can safely arrive in your country.
