Quick Details
-
Place of Origin:
-
Shangdong China(Mainland)
-
Dimension(Long * Breadth * High):
-
6970/3087/2510mm
-
Machine Weight:
-
9500 kg
-
Bucket capacity:
-
2m3
-
Overall working weight:
-
9500kg
-
Rated bucket capacity:
-
2.0m3
-
Max. Tractive force:
-
96kN
-
Max. gradeability:
-
28°
-
Max.dumping height:
-
2950mm
-
Model:
-
Deutz WP6G125E23
-
Rated power:
-
92kw
-
Rated speed:
-
2000r\min
-
Max.speed:
-
40km\h
Quick Details
-
Engine Brand:
-
Weichai
-
Power:
-
92kw
-
Brand Name:
-
TITAN
-
Place of Origin:
-
Shangdong China(Mainland)
-
Dimension(Long * Breadth * High):
-
6970/3087/2510mm
-
Machine Weight:
-
9500 kg
-
Bucket capacity:
-
2m3
-
Overall working weight:
-
9500kg
-
Rated bucket capacity:
-
2.0m3
-
Max. Tractive force:
-
96kN
-
Max. gradeability:
-
28°
-
Max.dumping height:
-
2950mm
-
Model:
-
Deutz WP6G125E23
-
Rated power:
-
92kw
-
Rated speed:
-
2000r\min
-
Max.speed:
-
40km\h
Products Description
heavy diesel engine china chinese concrete mixer articulated wheel loader with snow blower
1) bucket capacity,:2.0cbm, 9500kg operating weight.
2) Rated speed :2000r/min
3) Dumping height:4400mm.
4) Luxury appearance
5) With many attachments,all configuratin customer can choose
6) Safe and comfortable cabs,comfortable seat allowing the operator to work in confidence
and to focus on a productive working day.
7) Up to 10% lower fuel consumption.
8) Highest payloads and tipping loads
9) Low operating costs.
10) East to operate.
11) With substantial loading capacity,powerful digging force and impressive travel speeds,
they are extremely productive.
12) Fuel-efficient and easy to maintain,they offer reduced running costs.
2) Rated speed :2000r/min
3) Dumping height:4400mm.
4) Luxury appearance
5) With many attachments,all configuratin customer can choose
6) Safe and comfortable cabs,comfortable seat allowing the operator to work in confidence
and to focus on a productive working day.
7) Up to 10% lower fuel consumption.
8) Highest payloads and tipping loads
9) Low operating costs.
10) East to operate.
11) With substantial loading capacity,powerful digging force and impressive travel speeds,
they are extremely productive.
12) Fuel-efficient and easy to maintain,they offer reduced running costs.
|
ITEM
|
SPCIFICATIONS
|
ITEM
|
SPECIFICATIONS
|
|
|
Overall woking weight
|
9500kg
|
Gearshift
|
4forwardshift,2reverseshift
|
|
|
Rated bucket capacity
|
2.0m³
|
Max.speed
|
40km/h
|
|
|
Rated load
|
3.5t
|
Front and rear axles
|
|
|
|
Max. Tractive force
|
96kN
|
Main transmission type
|
Spiral gear,first stage decelerate
|
|
|
Max.breakout force
|
≥96KN
|
Tyre
|
|
|
|
Max. gradeability
|
28°
|
Type specification
|
17.5-25
|
|
|
Max.dumping height
|
2950mm
|
Front tyre pressure
|
0.333-0.353MPa
|
|
|
Dumping distance
|
1050mm
|
Rear tyre pressure
|
0.275-0.294MPa
|
|
|
Overall dimension(L*W*H)
|
6970*3087*2510mm
|
Steering system
|
|
|
|
Engine
|
|
Type
|
Articulated load-sensing hydraulic steering system
|
|
|
Model
|
Deutz WP6G125E23
|
Min.turning radius
|
Outside of bucket 5882mm Outside of rear wheel 5349mm
|
|
|
Type
|
Inline,water cooling,dry cylinder,direct injection
|
system woking pressure
|
16MPa
|
|
|
Max.torque
|
640N.M
|
Boom lifting time
|
6s
|
|
|
Rated power
|
92kw
|
Total time
|
11s
|
|
|
Rated speed
|
2000r\min
|
Brake system
|
|
|
|
Min.fuel-consume ratio
|
227g\kw.h
|
Service brake
|
Four wheel hydraulic spead-shoed brake
|
|
|
Transmission system
|
|
Parking brake
|
Hand operated
|
|
|
Torque converter
|
Single-stage,four-element,double-turbine,torque converter
|
Capacity
|
|
|
|
Torque ratio
|
3.25
|
Fuel
|
140L
|
|
|
Transmission type
|
Planetary power shift
|
Hydraulic
|
124L
|
|
Recommend Products
We use container transportation,according to your requirements,for you to choose the appropriate collccation If container is too tighber,we will use pefilm for packing or pack it accordfng to customers special requset.
We have more than 40 kinds attachments,All kinds of attachments can be replaced,It can be customized to your requirements.
Our team won the strength business award for its excellent performance in the compettion.Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as Australia, European East and South Asia, North and South America, etc. We also welcome OEM and ODM orders.
Quality
We have experienced engineers with an average work experience of around 12 years.Each of our
loader undergoes a very strict test procedure to ensure that they are shipped without any problem.
Seivice
We are avaliable online 24 hours a day.We will provide you with product progress photos and video,If there are any
product or
technical problems,pls send me a video ,we support technical service for machine whole life
Warranty
Every product issued shall enjoy a one-year/2000 working hour warranty period, during which we will repair or replace the defective parts free of charge if material or process defects occur and spare parts are in normal working condition.
Installation
TITAN can also help customers to coordinate with trained service personnel and provide you with detailed and extensive knowledge. Through our technical advice, your machine life can be significantly extended and sustained high capacity.

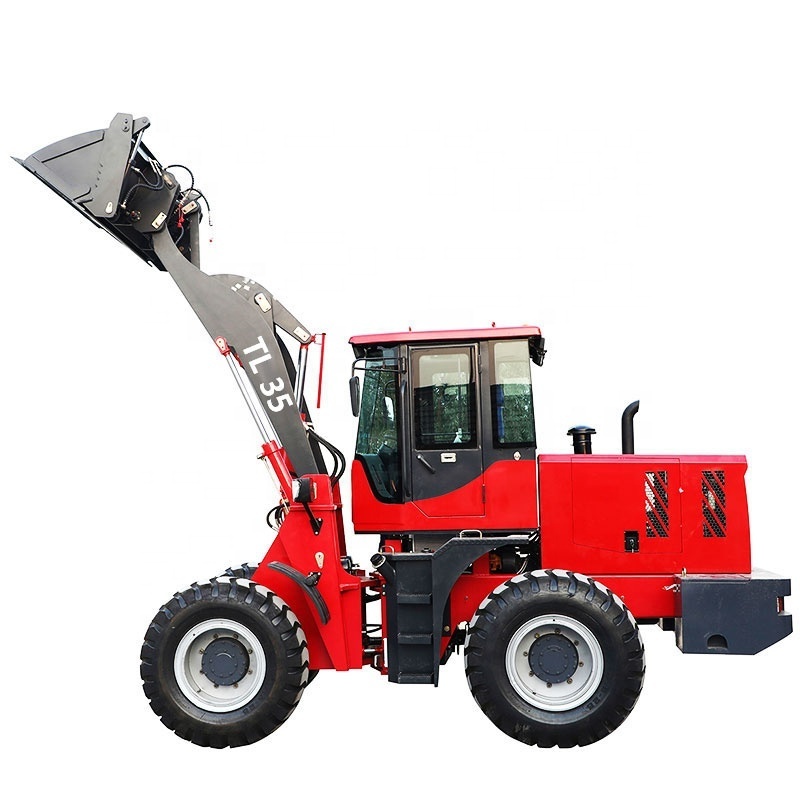

TL35 – 3500kg Rated Capacity Articulated Wheel Loader
Looking to work hard work and keep your maintenance costs down? With the cleverly designed and well built TL35 Wheel Loader, you can!
Titan products throughout the world represent the very best in Quality, Performance and Value.
Titan understands customers requirements. The Titan TL35 Wheel loader gives owners maximum performance, spacious operator’s cabin, renowned turbo diesel engines with Powershift transmissions using the proven ZF technology.
The simplicity of components across the Titan Wheel Loader range ensure ease of maintenance, product longevity and long term parts and technical support.
The Titan TL35 with its high rated operating capacity, 4400mm lift height, Efficiency, Simplicity of Design and Optimal Performance, is the ideal solution for your business!
FAQ
Q: Why choose Titanhi?
We sell every machine at a fair price.As our production increases,we are getting much support from the purchase source of raw meterial.
We leave the maximum profit to customer.
1) Titanhi: an experienced loader manufacturer with over 11 years.
2) Titanhi team: customers-focused, you'll get reply within 5 minutes.
3)Titanhi: premium quality with reasonable price.
4) Titanhi: CE,BV,SGS,ROPS and FOPS,ISO9001:2008 varified.
The quality control is not an empty word in TITANHI.Our products are tested and granted CE certificate.
We leave the maximum profit to customer.
1) Titanhi: an experienced loader manufacturer with over 11 years.
2) Titanhi team: customers-focused, you'll get reply within 5 minutes.
3)Titanhi: premium quality with reasonable price.
4) Titanhi: CE,BV,SGS,ROPS and FOPS,ISO9001:2008 varified.
The quality control is not an empty word in TITANHI.Our products are tested and granted CE certificate.
Q: What is Titanhi warranty?
TITANHI has a professional sales and after-service team.We are trying our best to make a good service for every customer.
1) Titanhi after-sales: life-long, meantime offer one year and one month warranty.
2) Titanhi proposal: order some wearing parts with loader for easy maintenance.
1) Titanhi after-sales: life-long, meantime offer one year and one month warranty.
2) Titanhi proposal: order some wearing parts with loader for easy maintenance.
Q:What about Titanhi delivery term?
TITANHI Transport packaging team helps our customer to transport their machine in safe and secure way without any damage.
10-20 days after down payment received.
10-20 days after down payment received.
Q:What about the payment term?
30% advance payment,70% balance T/T.
