Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JSDSOLAR
-
Model Number:
-
J5500HP
-
Input Voltage:
-
220/230VAC ± 5%, 230VAC
-
Output Voltage:
-
25A
-
Output Current:
-
220/230VAC ± 5%
-
Output Frequency:
-
60HZ
-
Size:
-
440*360*140 MM
-
Certificate:
-
ce, rohs etc.
-
Warranty:
-
5 years
-
Weight:
-
12.5KG
-
Product name:
-
hybrid solar inverter
-
Rated Power:
-
5.5KW
-
Efficiency (Peak) PV to INV.:
-
97%
-
Efficiency (Peak) Battery to INV.:
-
93%
-
Waveform:
-
Pure Sine Wave
-
Product Dimension(L*W*H):
-
39.5*31.5*10.8
-
Operating Temperature:
-
-10℃~55℃
-
Storage Temperature:
-
(-10℃~50℃)
-
Transfer Time:
-
10ms (For Personal Computers) ; 20ms (For Home Appliances)
Quick Details
-
Output Type:
-
Single, Triple
-
Type:
-
DC/AC Inverters
-
Inverter Efficiency:
-
97%
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JSDSOLAR
-
Model Number:
-
J5500HP
-
Input Voltage:
-
220/230VAC ± 5%, 230VAC
-
Output Voltage:
-
25A
-
Output Current:
-
220/230VAC ± 5%
-
Output Frequency:
-
60HZ
-
Size:
-
440*360*140 MM
-
Certificate:
-
ce, rohs etc.
-
Warranty:
-
5 years
-
Weight:
-
12.5KG
-
Product name:
-
hybrid solar inverter
-
Rated Power:
-
5.5KW
-
Efficiency (Peak) PV to INV.:
-
97%
-
Efficiency (Peak) Battery to INV.:
-
93%
-
Waveform:
-
Pure Sine Wave
-
Product Dimension(L*W*H):
-
39.5*31.5*10.8
-
Operating Temperature:
-
-10℃~55℃
-
Storage Temperature:
-
(-10℃~50℃)
-
Transfer Time:
-
10ms (For Personal Computers) ; 20ms (For Home Appliances)
Product Description

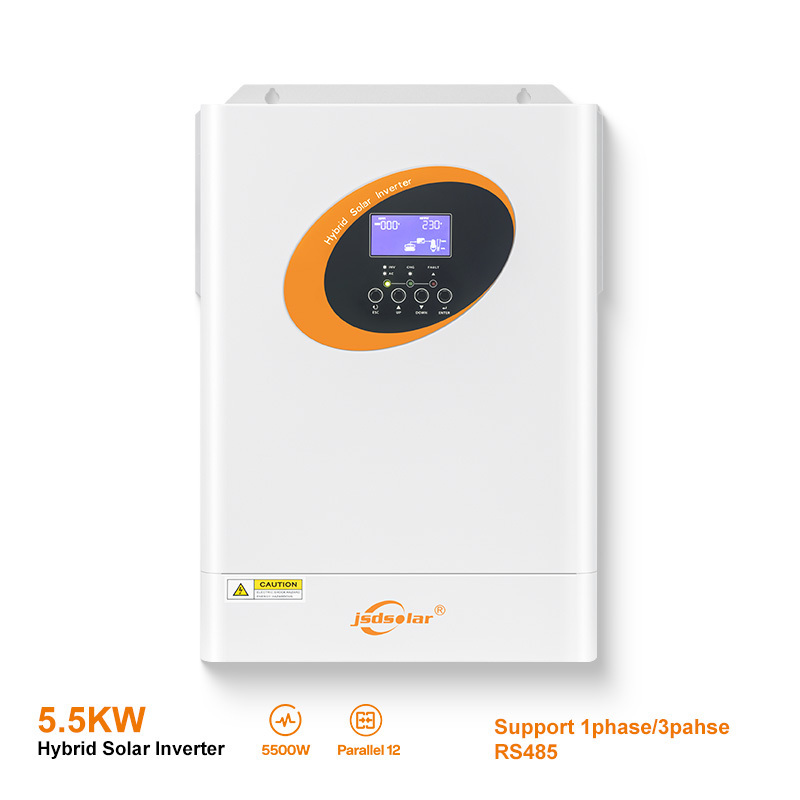

5.5kw Hybrid Solar Inverter
This is a multi-functional inverter/charge, combining functions of inverter, solar charge and battery charge to offer
uninterruptible power support in portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
This is a multi-functional inverter/charge, combining functions of inverter, solar charge and battery charge to offer
uninterruptible power support in portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
Specification
|
MODEL
|
|
|
Capacity
|
5.5KW
|
|
Parallel Capability
|
YES,12units
|
|
Input
|
|
|
Nominal Voltage
|
230VAC
|
|
Acceptable Voltage Range
|
170-280 VAC (For Personal Computers),90-280 VAC (For Home Appliances)
|
|
Frequency
|
50/60HZ (Auto sensing)
|
|
Output
|
|
|
Nominal Voltage
|
220/230VAC ± 5%
|
|
Surge Power
|
10000VA
|
|
Frequency
|
50Hz/60Hz
|
|
Waveform
|
Pure Sine Wave
|
|
Transfer Time
|
10ms (For Personal Computers) ; 20ms (For Home Appliances)
|
|
Peak Effiffifficiency (PV to INV)
|
97%
|
|
Peak Effiffifficiency (Battery to INV)
|
93%
|
|
overload Protection
|
5s@>=150% load; 10s 110%~150% load
|
|
Crest Factor
|
3:1
|
|
Admissible Power Factor
|
0.6~1(inductive or capacitive)
|
|
Battery
|
|
|
Battery Voltage
|
48 VDC
|
|
Floating Charge Voltage
|
54 VDC
|
|
Overcharge Protection
|
63 VDC
|
|
Charging Method
|
CC/CV
|
|
Solar Charge & AC Charge
|
|
|
Solar Charge Type
|
MPPT
|
|
Max. PV Array Power
|
5500W
|
|
Max. PV Array Open Circuit Voltage
|
500 VDC
|
|
PV Array MPPT Voltage Range
|
120VDC~450 VDC
|
|
Maximum Solar Input Current
|
18A
|
|
Maximum Solar Charge Current
|
100A
|
|
Maximum AC Charge Current
|
60A
|
|
Maximum Charge Current
|
100A
|
|
Communication Interface
|
USB/RS232/Dry-contact
|
|
Environment
|
|
|
Operating Temperature
|
(-10℃~50℃)
|
|
Storage Temperature
|
(-15℃~60℃)
|
|
Humidity
|
5% to 95% Relative Humidity (Non-condensing)
|
