Quick Details
-
Voltage:
-
220V
-
Power:
-
300
-
Dimension(L*W*H):
-
according to capacity
-
Weight:
-
598000 kg
-
Product name:
-
Cement Production Plant Line
-
Keyword:
-
Cement Plant Project
-
Capacity:
-
50-3000TPD
-
Process:
-
Dry Cement Plant
-
Rotary kiln:
-
Diameter2m-6m
-
After Sale Service:
-
Life Long Support
-
Main Equipment:
-
Rorary Kiln
-
Equipments:
-
Dust Collector
-
Item:
-
cement making machine
-
Local Service Location:
-
Uzbekistan
Quick Details
-
Marketing Type:
-
Hot Product 2023
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
FTL
-
Voltage:
-
220V
-
Power:
-
300
-
Dimension(L*W*H):
-
according to capacity
-
Weight:
-
598000 kg
-
Product name:
-
Cement Production Plant Line
-
Keyword:
-
Cement Plant Project
-
Capacity:
-
50-3000TPD
-
Process:
-
Dry Cement Plant
-
Rotary kiln:
-
Diameter2m-6m
-
After Sale Service:
-
Life Long Support
-
Main Equipment:
-
Rorary Kiln
-
Equipments:
-
Dust Collector
-
Item:
-
cement making machine
-
Local Service Location:
-
Uzbekistan
Products Description

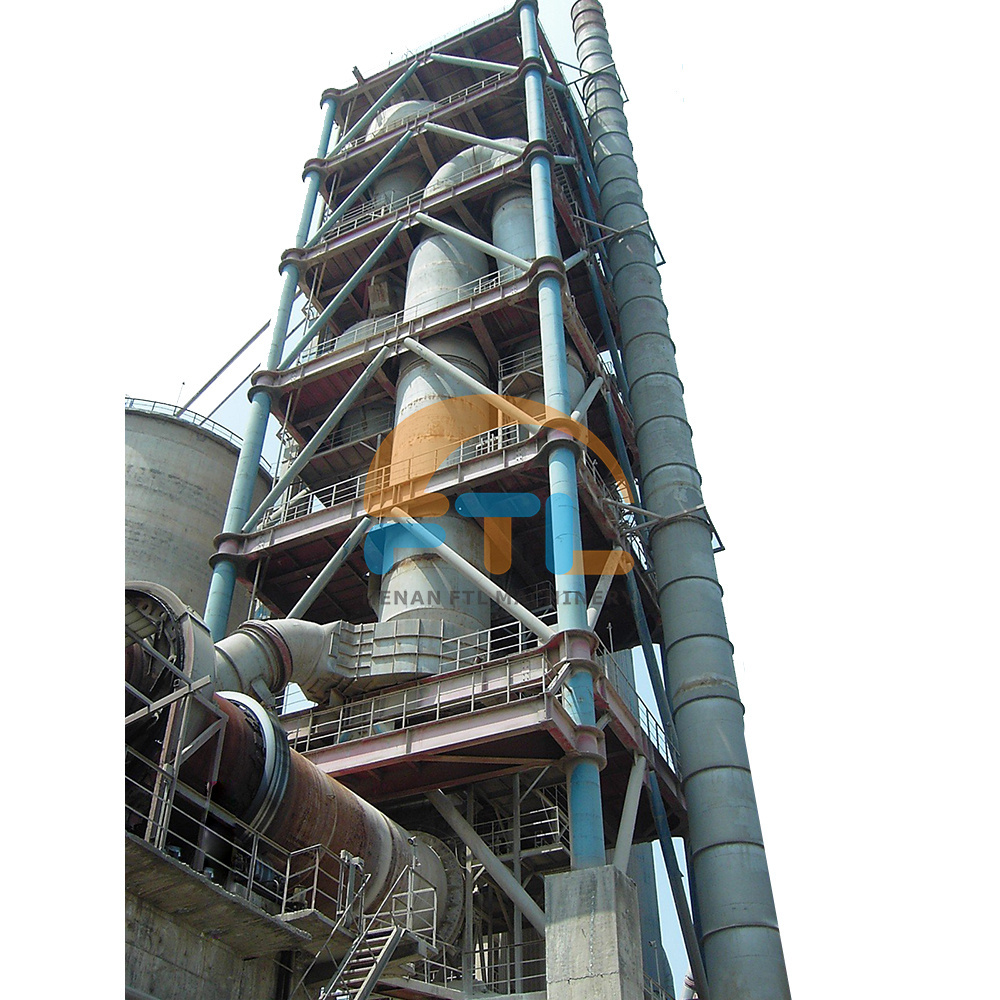

Project case 350T Per Day cement production plant in UZ KZ Russia / cement machine line/cement plant machine
Working principle of Cement Making Machine
Cement Making Machine is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.
Our Projects
Main equipment
|
1
|
limestone crushing
|
|
2
|
raw material storage and blending
|
|
3
|
raw material grinding
|
|
4
|
raw material homogenizing and kiln feeding
|
|
5
|
kiln inlet, kiln middle, kiln head and pulverized coal preparation
|
|
6
|
waste gas treatment at kiln inlet
|
|
7
|
clinker and admixture storage
|
|
8
|
cement grinding
|
|
9
|
cement storage and packing
|
|
Производительность клинкера
|
|
300 т/сутки
|
700 т/сутки
|
1000 т/сутки
|
1500 т/сутки
|
|
|
Подогреватель
|
C1
|
2-Φ2500
|
Φ3500
|
Φ4800
|
2-Φ4000
|
|
|
|
C2
|
Φ3600
|
Φ4800
|
Φ4800
|
Φ5800
|
|
|
|
C3
|
Φ3600
|
2-Φ3700
|
Φ5200
|
Φ5800
|
|
|
|
C4
|
Φ3600
|
Φ4800
|
Φ5200
|
Φ6200
|
|
|
|
C5
|
Φ3600
|
Φ4800
|
Φ5200
|
Φ6200
|
|
|
Подогревательная печь
|
Модель
|
Φ2200
|
Φ2800
|
Φ4800
|
Φ5200
|
|
|
Вращающаяся печь
|
Модель
|
Φ2.8×44м
|
Φ3×48м
|
Φ3.2×50м
|
Φ3.5×54м
|
|
|
|
Производительность |
12.5 т/ч
|
30 т/ч
|
42 т/ч
|
63 т/ч
|
|
|
|
Температура обжига
(℃) |
1450
|
1450
|
1450
|
1450
|
|
|
Сырьевая мельница
|
Модель |
Вертикальная роликова мельница Φ1700 |
Сухая мельница
Φ3.2×7+1.8м |
Сухая мельница
Φ3.5×10м |
Вертикальна роликова мельница
HRM2800 |
|
|
|
Производительность |
30 т/ч
|
50 т/ч
|
85 т/ч
|
130~160 т/ч
|
|
|
|
Мощность
|
400 кВт
|
1000 кВт
|
1250 кВт
|
1250 кВт
|
|
|
Цементная мельница
|
Модель
|
Φ2.4×13м
Незамкнутая цепь |
Φ3×11м
Замкнутыйтая цепь |
Φ3.2×11м
Замкнутыйтая цепь |
Φ4.2×13.5м
Замкнутыйтая цепь |
|
|
|
Производительность
|
22 т/ч
|
42 т/ч
|
64 т/ч
|
95 т/ч
|
|
|
|
Мощность
|
800 кВт
|
1250 кВт
|
1400 кВт
|
3550 кВт
|
|
