Quick Details
-
Brand Name:
-
Dawson
-
Year:
-
2023
-
Voltage:
-
Customized to customer needs
-
Dimension(L*W*H):
-
4.8*3.4*3.6m
-
Hollow part volume:
-
10~30L
-
Screw L/D Ratio:
-
24
-
Screw diameter (mm):
-
80 mm
-
Screw Heating Power(kW):
-
9 kW
-
Extruder Motor Power(kW):
-
30 kW
-
Mold Platen Size(Width)(mm):
-
660 mm
-
Mold Platen Size(Height)(mm):
-
680 mm
-
Air Pressure(MPa):
-
0.8 MPa
-
Air Comsumption(m³/min):
-
2.2 m³/min
-
Die Head Heating Power(kW):
-
6 kW
-
Accumulator Capacity(L):
-
0 L
-
Power (kW):
-
38
-
Weight (T):
-
11.3
-
Model Number:
-
DSB80-30L
-
View Strip System:
-
available
-
Motor Type:
-
Hydraulic servo motor
-
Driven Type:
-
Hydraulic oil
-
Layer:
-
1~4 layers
-
Suitable Material:
-
HDPE, LDPE, PP
-
Product Usage:
-
Lubricant oil, Palm oil, Chemicals, Detergent ...
-
Bottle Weight:
-
100g ~ 1500g
-
Clamping Type:
-
Toggle Type Clamping System
-
PLC:
-
WiseTech
-
Parison Control:
-
MOOG 100 Point
Quick Details
-
Clamping Force (kN):
-
270
-
Output (kg/h):
-
130 kg/h
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Dawson
-
Year:
-
2023
-
Voltage:
-
Customized to customer needs
-
Dimension(L*W*H):
-
4.8*3.4*3.6m
-
Hollow part volume:
-
10~30L
-
Screw L/D Ratio:
-
24
-
Screw diameter (mm):
-
80 mm
-
Screw Heating Power(kW):
-
9 kW
-
Extruder Motor Power(kW):
-
30 kW
-
Mold Platen Size(Width)(mm):
-
660 mm
-
Mold Platen Size(Height)(mm):
-
680 mm
-
Air Pressure(MPa):
-
0.8 MPa
-
Air Comsumption(m³/min):
-
2.2 m³/min
-
Die Head Heating Power(kW):
-
6 kW
-
Accumulator Capacity(L):
-
0 L
-
Power (kW):
-
38
-
Weight (T):
-
11.3
-
Model Number:
-
DSB80-30L
-
View Strip System:
-
available
-
Motor Type:
-
Hydraulic servo motor
-
Driven Type:
-
Hydraulic oil
-
Layer:
-
1~4 layers
-
Suitable Material:
-
HDPE, LDPE, PP
-
Product Usage:
-
Lubricant oil, Palm oil, Chemicals, Detergent ...
-
Bottle Weight:
-
100g ~ 1500g
-
Clamping Type:
-
Toggle Type Clamping System
-
PLC:
-
WiseTech
-
Parison Control:
-
MOOG 100 Point
Products Description
DAWSON MACHINERY & MOULD GROUP

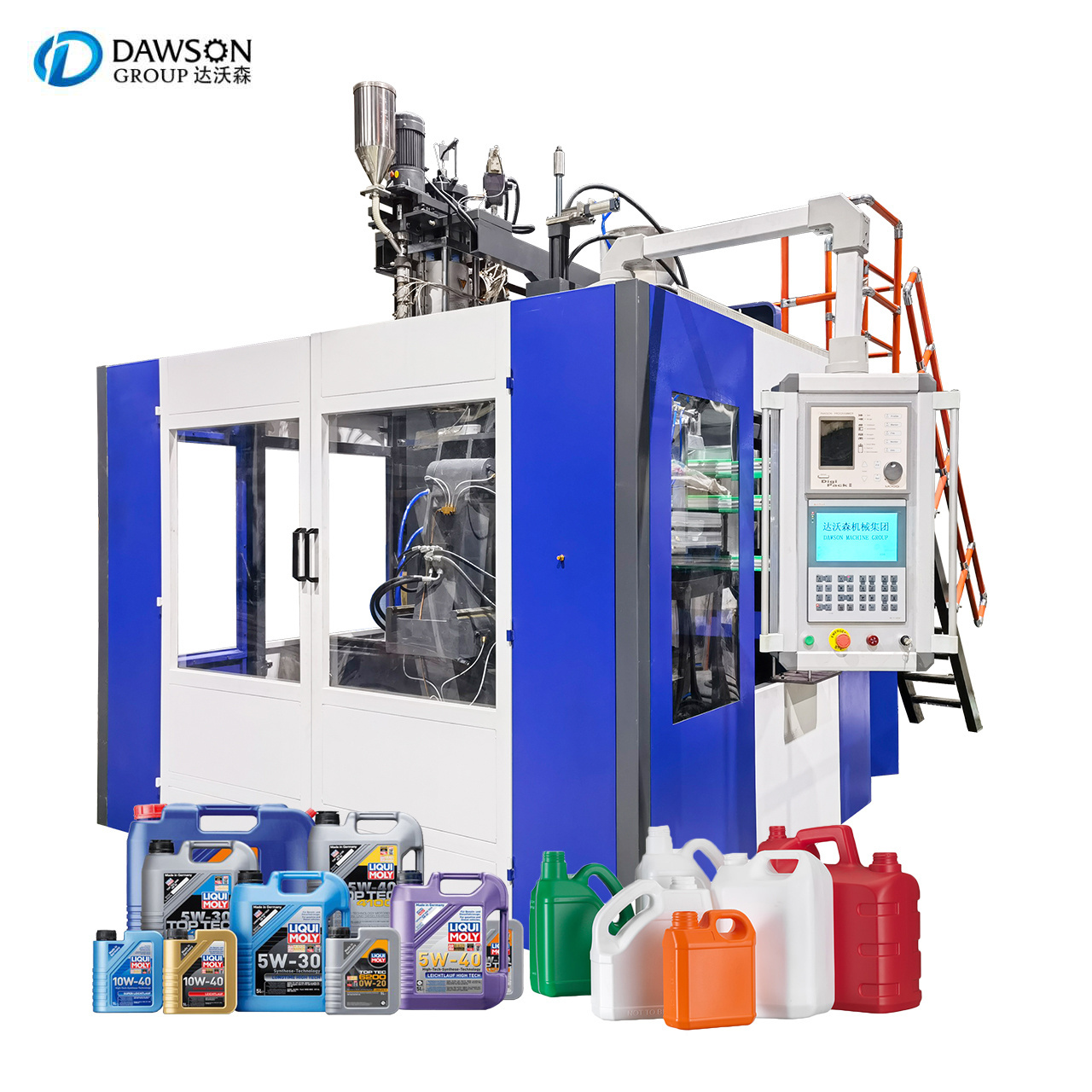

Extrusion Blow Molding Machine DSB80-30L
20L Jerry cam blow moulding machine suitable for making plastic bottle, jars, containers, jerrycans up to 30L,
The whole blow molding machine is equipped with bilingual operation panel and automatic configuration from world famous brands to realize the advantages of simple operation and high automation.
|
Machine Model
|
|
Max. Bottle size
|
Production forecast
|
|
|
DSB80-30L
|
Single Station
Single
Head
|
30L
|
45~60 BPH
|
|
Technical Parameters
|
Name
|
Units
|
DSB80-30L
|
|
Max.product volume
|
L
|
30L
|
|
Screw diameter
|
MM
|
90
|
|
Screw drive power
|
KW
|
10
|
|
Output of HDPE
|
KG/H
|
130
|
|
Oil pump drive power
|
KW
|
11
|
|
Clamping force
|
KN
|
270
|
|
Max.size of mold
|
MM
|
680× 660
|
|
Template size
|
MM
|
290×320
|
|
Mold stroke
|
MM
|
450-950
|
|
Size of machine
|
L×W×H
|
4.4×3.4×3.6
|
|
Weight of machine
|
TON
|
11.3
|
Photos Reference
FAQ
Q: Can we visit your factory?
Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong
International Airport. We can
pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.
Q: How can we get the exact price of plastic machine?
Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with
quotation.
Q: Do you provide any spare parts with machine?
Yes, we offer all necessary spare parts before shipment.(contact us for packing list )
Q: How about your after-sale service ?
We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical
support or field installation assist.
Q: What is the lead time?
For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle
will vary according to the degree of customization.)
Q: What is the warranty period for your machine ?
12 months warranty for components and technical support .
Q: Do you provide custom machines?
Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers
products to meet customer' needs.
Q: How can we install the machine when it arrives?
We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the
customer's employees.
Q: What's DAWSON's advantage?
DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we
can source the auxiliary equipments for customers. We can ship the full set of machines after testing in our factory. It will save
a lot of cost and time.
DAWSON will be your reliable friend in China, and we will always do our best to give you max support!
