Quick Details
-
Material:
-
Tungsten Carbide WC+Co
-
Surface:
-
Unground/Ground
-
Grade:
-
YG6X/YG10X/YL102/YG6/YG8/YG15
-
Density:
-
14.1~14.9 G/cm^3
-
Colbalt Content:
-
6-12%
-
Grain Size:
-
0.4~1.2um
-
Hardness:
-
HRA87 - HRA93.5
-
T.R.S:
-
2450-4200 N/mm^2
-
Certificate:
-
ISO9001
-
Customize Service:
-
Support
Quick Details
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
ZZCT
-
Model Number:
-
Tungsten Carbide Bars
-
Material:
-
Tungsten Carbide WC+Co
-
Surface:
-
Unground/Ground
-
Grade:
-
YG6X/YG10X/YL102/YG6/YG8/YG15
-
Density:
-
14.1~14.9 G/cm^3
-
Colbalt Content:
-
6-12%
-
Grain Size:
-
0.4~1.2um
-
Hardness:
-
HRA87 - HRA93.5
-
T.R.S:
-
2450-4200 N/mm^2
-
Certificate:
-
ISO9001
-
Customize Service:
-
Support

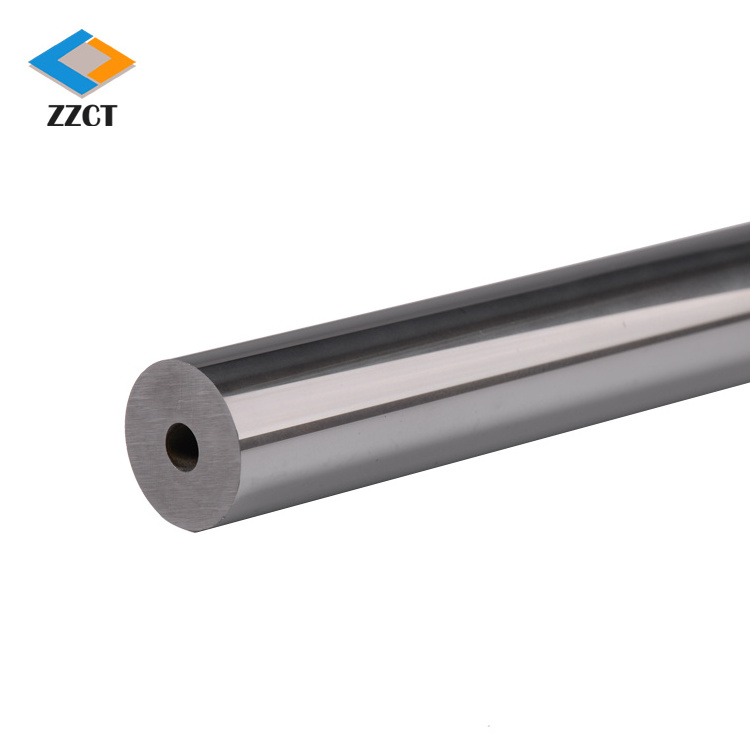

Solid carbide bars can be used to manufacture end mills, various drill bits, special tools for automobiles, special tools for engines, clocks, special processing tools, integral vertical milling cutters, engraving knives, etc.
Tool life, wear resistance, "keep ahead" and excellent performance are your benchmarks. We have many tungsten carbide rods to choose from:
1. Unpolished and finely ground for metric and imperial diameters;
2. Carbide rod with central coolant holes;
3. Carbide rod with 2 straight coolant holes;
4. Carbide rod with helical coolant holes;
5. Carbide rods with chamfered ends.
| No. | Grade | ISO Code | HRA |
Density
g/cm³ |
TRS
N/mm² |
Recommended Applications |
| 1 | CT06A | K05-10 | 93.5 | 14.90 | 3500 | Universal grades widely used in machining tools for cast iron.nonferrous metals and their alloys and nonmetal materials.wear parts.and tools for machineing other alloys. |
| 2 | CT09 | K20-30 | 89.0 | 14.70 | 3100 | Used for Diamond matrix.also can process ordinary steel. |
| 3 | CT09A | K20-K30 | 93.5 | 14.65 | 4000 | Suitable for processing HRC60 extra hard steel. stainless steel and other materials |
| 4 | CT102 | K20-30 | 91.6 | 14.45 | 3800 | Suitable for processing all kinds of carbon steel.cast iron. stainless steel.heat-resistant steel.nickel base and titanium alloy. |
| 6 | CT12 | K30-40 | 92.0 | 14.15 | 4000 | It is suitable for processing of nickel-base alloy. titanium alloy, stainless steel. die steel. hardened steel and grey cast iron. |
| 7 | CT12A | K30-40 | 92.3 | 14.15 | 4200 | The powder is made of better raw materials, the product life and bending resistance are greatly improved, the overall processing effect is significantly improved, and it is suitable for high-hardness processing.It can process HRC55° stainless steel materials, such as stainless steel 304 materials. |
| 8 | YG15 | K30-40 | 87 | 14.20 | 3800 | It is suitable for stamping die or diamond welding tool bar. |
