Quick Details
-
Model Number:
-
XK-15-3
-
Operating Temperature:
-
50℃
-
Rated Voltage:
-
DC 125V AC 250V
-
Maximum Current:
-
15(8)A
-
Frequency:
-
50-60HZ
-
Maximum Operating Temperature:
-
50℃
-
Protecting Grade:
-
IP68
-
length:
-
2m
-
Certification:
-
ccc
Quick Details
-
Media Type:
-
Liquid
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
NIN
-
Model Number:
-
XK-15-3
-
Operating Temperature:
-
50℃
-
Rated Voltage:
-
DC 125V AC 250V
-
Maximum Current:
-
15(8)A
-
Frequency:
-
50-60HZ
-
Maximum Operating Temperature:
-
50℃
-
Protecting Grade:
-
IP68
-
length:
-
2m
-
Certification:
-
ccc

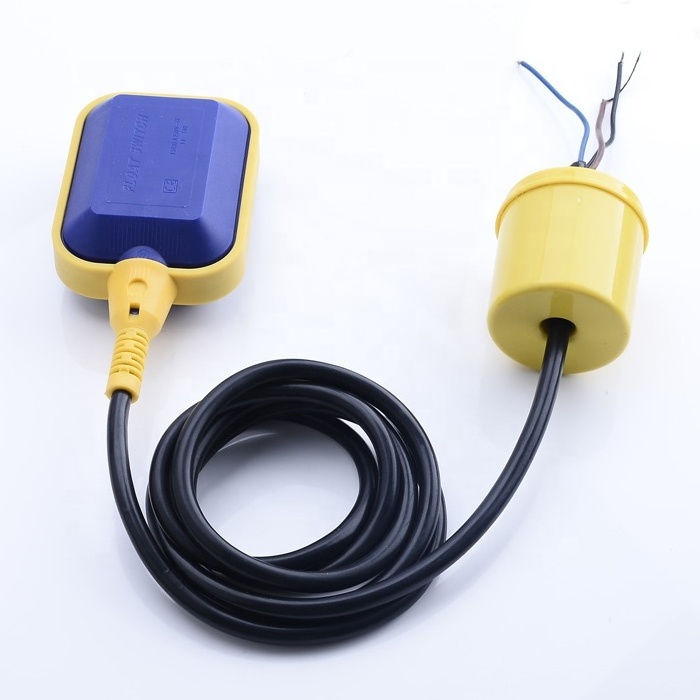

Instruction for pressure control for water pump
1. The appliance combined with a pump connected by a flexible cable,can be used for the auto-control and no water protection of the water lever in water towers and pools.
2. Technical features
| *Rated Voltage : | DC 125V AC 250V |
| *Maximum Current : | 15(8)A |
| *Frequency | 50-60HZ |
| *Maximum Operating Temperature : | 50 ℃ |
| *Protecting Grade : | IP68 |
3. Installation
(1) Fix the counterweight on the electrical cable to control the height of the water.lever.(The counterweight is only provided on request.)
(2) Connect the flexible cable with the pump and fix the cable in the water tank.
(3) The length of the cable section between the fixture point of the same and the regulator body determines the total extension of the float and the height of the water level.
During installation,the eventual cable joining section must never be immersed in water.
