Quick Details
-
Dimension(L*W*H):
-
5500x2330x1780
-
Power (kW):
-
200 kW
-
Weight (KG):
-
20000 KG
-
Model:
-
XKP-680
-
Diameter of front/rear roller:
-
680
-
Use:
-
for waste tire rubber powder
-
Roller material:
-
casted steel
-
frame structure:
-
casted
-
Motor power:
-
200KW
-
Roller support type:
-
bearing
-
Reducer:
-
ZSY series hardened teeth reducer
-
Contact:
-
Judy at qdtoplit dot com
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
TOPLIT
-
Voltage:
-
220V,380V,415V,440V or others
-
Dimension(L*W*H):
-
5500x2330x1780
-
Power (kW):
-
200 kW
-
Weight (KG):
-
20000 KG
-
Model:
-
XKP-680
-
Diameter of front/rear roller:
-
680
-
Use:
-
for waste tire rubber powder
-
Roller material:
-
casted steel
-
frame structure:
-
casted
-
Motor power:
-
200KW
-
Roller support type:
-
bearing
-
Reducer:
-
ZSY series hardened teeth reducer
-
Contact:
-
Judy at qdtoplit dot com

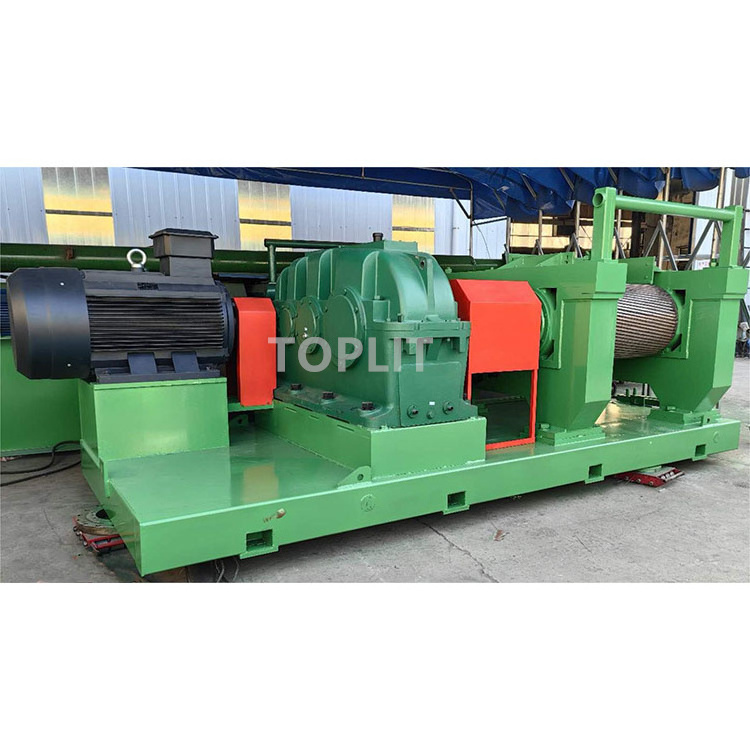

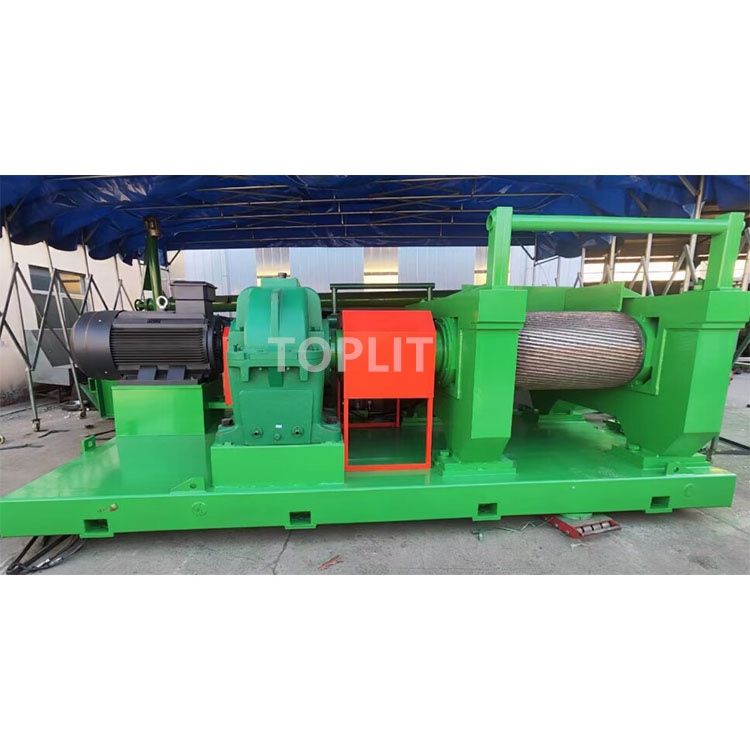

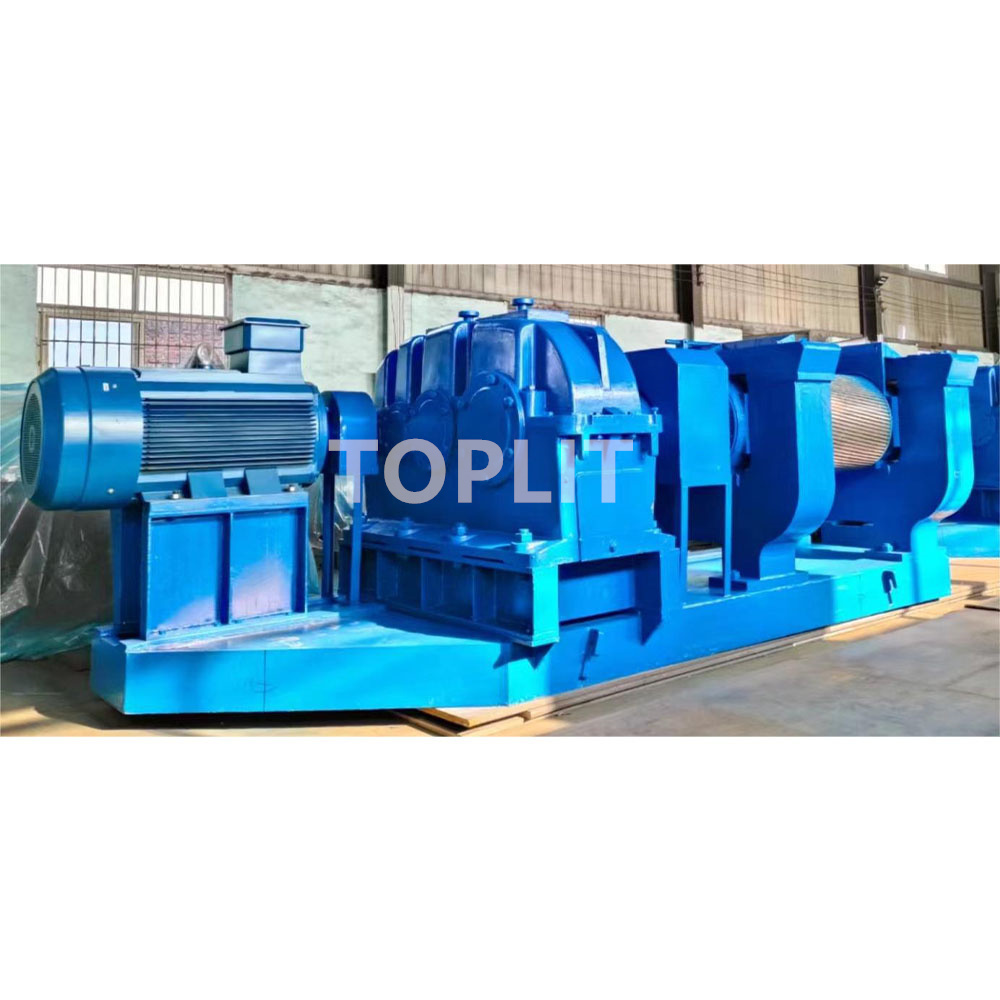

Waste Tyre Recycling Rubber Powder Machine Fully Automated Rubber Crusher XKP-660 and Fine Rubber Grinder
Equipment Summary
Introduction
Cracker mill is used for the breaking process from used tire scape to rubber powder.
It is used for waste tire recycling industry.
* Power assembly
* Big conveyor belt: 8700mm*1000mm(3.0kw)
* Big vibrating screen: 8800mm*1000mm (7.5kw)
* Small vibrating screen: 2600mm*900mm(1.5Kw) , with 5 sets magnetic separators (0.75kw / set)
* Small conveyor belt : 3800mm*700mm(1.5kw)
* Wind-Induced system 1 set (4.75kw)
* Big conveyor belt: 8700mm*1000mm(3.0kw)
* Big vibrating screen: 8800mm*1000mm (7.5kw)
* Small vibrating screen: 2600mm*900mm(1.5Kw) , with 5 sets magnetic separators (0.75kw / set)
* Small conveyor belt : 3800mm*700mm(1.5kw)
* Wind-Induced system 1 set (4.75kw)
Main Feature:
This kind of machine consists of seat, Rack, two rollers,motor,cooling system,heating system etc.
1.Rollers are made of chilled cast iron ,which are abrasion resistant with long service life.
2.Rear roller is equipped with distance adjustment device,easy operation and convenience,turn the turbine to adjust the distance.
3.Perfect emergency stop device can ensure the safety of personnel and equipment.
4.the seal structure with special design can eliminate the leaking phenomenon of lubricating oil.
5.Human nature designed operating system reduces labor intensity.
This kind of machine consists of seat, Rack, two rollers,motor,cooling system,heating system etc.
1.Rollers are made of chilled cast iron ,which are abrasion resistant with long service life.
2.Rear roller is equipped with distance adjustment device,easy operation and convenience,turn the turbine to adjust the distance.
3.Perfect emergency stop device can ensure the safety of personnel and equipment.
4.the seal structure with special design can eliminate the leaking phenomenon of lubricating oil.
5.Human nature designed operating system reduces labor intensity.
6.This machine is used for breaking, plasticating and mixing of rubber materials.
7.The rollers are made of chilled cast iron or casted steel(surfacing hard alloy) with wear-resistant hard surface.
8.The two rollers are grooved.
9.The bored rolls can be cooled homogeneously through inputting steam and cooling water.
10.The two rollers rotate reversely with different speed, so that rubber material can be processed.
8.The two rollers are grooved.
9.The bored rolls can be cooled homogeneously through inputting steam and cooling water.
10.The two rollers rotate reversely with different speed, so that rubber material can be processed.
|
Type
|
XKP-560
|
XKP-610
|
XKP-680
|
XKP-710
|
|
Grooved roller dia.
|
560mm
|
610mm
|
680mm
|
710mm
|
|
Smooth roller dia.
|
510mm
|
560mm
|
610mm
|
610mm
|
|
Working length
of rollers |
800mm
|
1000mm
|
1000mm
|
1100mm
|
|
Motor power
|
132KW/160KW
|
185KW/200KW
|
250KW
|
280KW
|
|
Speed reducer
|
Double circular arc gear reducer
/ZSY series hardened teeth reducer |
Double circular arc gear reducer
/ZSY series hardened teeth reducer |
Double circular arc gear reducer
/ZSY series hardened teeth reducer |
Double circular
arc gear reducer /ZSY series hardened teeth reducer |
|
Roller support type
|
Bearings
|
Bearings
|
Bearings
|
Bearings
|
|
Lubricating method
|
Grease pump automatic lubricating
|
Grease pump automatic lubricating
|
Grease pump automatic lubricating
|
Grease pump automatic lubricating
|
|
Machine weight
|
Around 20 ton
|
Around 25ton
|
Around 30ton
|
Around 32ton
|
|
Production capacity(24mesh)
|
Around 900kg/h
|
Around 1000kg-1300kg/h
|
Around 1200-1500kg/h
|
Around 1300-1600kg/h
|
Qingdao TOPLIT Industry Co.,Ltd
is a professional provider of rubber machine.
Our products mainly include kneader, banbury mixer, mixing mill, refiner, calender, extruder, batch off cooler, plate curing press, microwave curing machine, cracker mill, skiving machine, extruder, tire reclaimed rubber machines, butyl reclaimed rubber machines, EPDM reclaimed rubber machines, rubber powder machines, and so on.
We enjoy good reputation with reasonable price, best quality and good delivery. And we sincerely welcome clients from home and abroad to establish long and steady business relations and develop domestic and international market jointly on the base of equality and mutual benefit.
Q1.WHO ARE YOU?
A: We are Professional Provider of Rubber Machine in China for many years.
Q2.ARE YOU AN COMPREHENSIVE SUPPLIER FOR RUBBER&PLASTIC MACHINE?
A: Yes, we can provide the complete solution line to customer according to customer's requirement.
Q3. HOW ABOUT THE QUALITY CONTROL IN YOUR FACTORY?
A: We has the SOP (Standard Operation Procedure) and all the production step must follow up this SOP.
Q4. WHAT ABOUT THE AFTER-SERVICE? WILL YOU SEND YOUR ENGINEER TO MY COUNTRY TO HELP COMMISSION AND INSTALL THE MACHINE?
A: Surely, we have many experience technical engineers for oversea service, they would help you install machine and support training to workers.
Q5. WHAT IS THE DELIVERY TIME OF THE MACHINE?
A: Actually, the delivery time of the machines is depended on the machine options. Normally, the delivery time of standard machine could be within10-60 days.
Q6. WHAT IS THE WARRANTY OF THE MACHINE?
A: The whole machine's warranty period is 12 months and spare parts will be depended.
