Quick Details
-
Brand Name:
-
Bolida
-
Voltage:
-
380V/415v/440v
-
Dimension(L*W*H):
-
2200*1300*1600
-
Motor Power (Kw):
-
132
-
Power (kW):
-
132
-
Weight (KG):
-
5800 KG
-

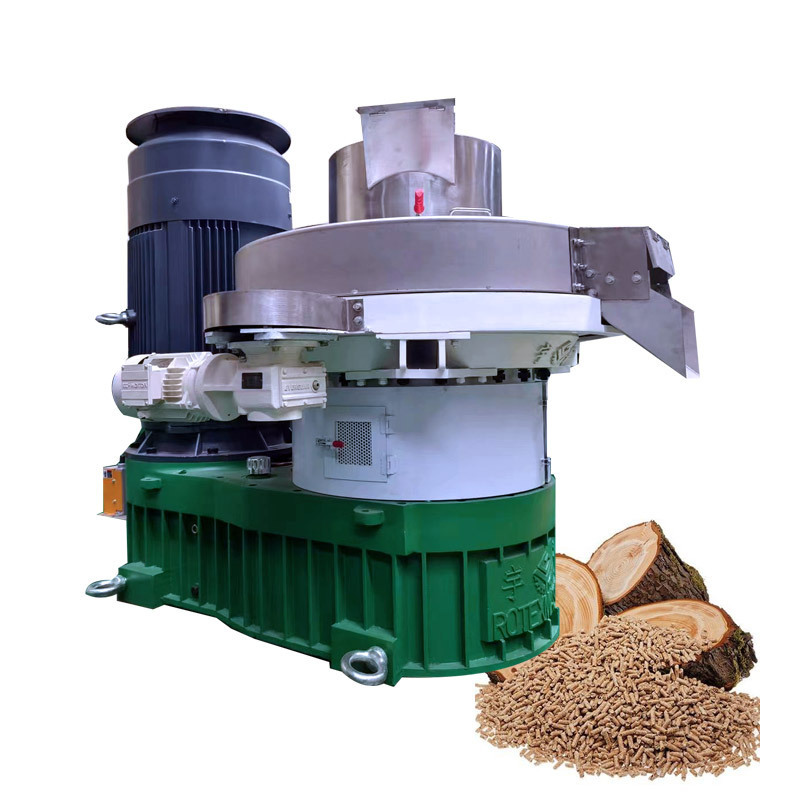

Product name:
-
wood pelletizing machine
-
Usage:
-
Making Biomass Pellets
-
Raw material:
-
all kinds of wood, agricultural straw, rice husk, biomass waste
-
Ideal moisture:
-
13-15%
-
Machine type:
-
Vertical Ring Die
-
Motor:
-
SIEMENS Brand
-
Spare parts:
-
Ring Die, Rollers
-
Process:
-
chipping-crushing-drying-pelleting-cooling-packing
-
Installation:
-
Onsite Install
-
Service:
-
Provide After-sale Service
Quick Details
-
Pellet Diameter (mm):
-
6 - 12
-
Output (kg/h):
-
1500 - 2000 kg/h
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Bolida
-
Voltage:
-
380V/415v/440v
-
Dimension(L*W*H):
-
2200*1300*1600
-
Motor Power (Kw):
-
132
-
Power (kW):
-
132
-
Weight (KG):
-
5800 KG
-
Product name:
-
wood pelletizing machine
-
Usage:
-
Making Biomass Pellets
-
Raw material:
-
all kinds of wood, agricultural straw, rice husk, biomass waste
-
Ideal moisture:
-
13-15%
-
Machine type:
-
Vertical Ring Die
-
Motor:
-
SIEMENS Brand
-
Spare parts:
-
Ring Die, Rollers
-
Process:
-
chipping-crushing-drying-pelleting-cooling-packing
-
Installation:
-
Onsite Install
-
Service:
-
Provide After-sale Service
Product Description
Specification
|
Model
|
Main Power(kw)
|
Capacity(t/h)
|
Dimension(L*W*H)
|
Weight(t)
|
|
YGKJ560
|
132
|
1.5-2
|
2200*1300*1600
|
5.8
|
|
YGKJ700
|
160
|
2-3
|
2400*1400*1800
|
7.8
|
|
YGKJ880
|
220
|
3-4
|
3000*1500*2200
|
13
|
Details Images
Stainless Steel Mould
Stainless steel whole carburizing die,high wear resistance, good stability,discharge area increase,enhance capacity and reduce cost.Double layer, both side can be used, reduce cost.
Roller
the roller adopts wear-resistant alloy welding process, without lock nut structure design, less grease consumption, which greatly extends the bearing life, then reducing cost.
Siemens Motor
The motor of
Biomass Wood Pelletizer Machine
is frequency, with thick copper coil, It won’t be burned due to instantaneous current.
Reducer
Reducer drive of
Biomass Wood Pelletizer Machine
strengthen with 3 level.
,module increased , gear strengths increased, carrying more and more ability.The service life increased 8-10 times than the traditional reducer,greatly increase the service life.
Air Cooling System
Adopt air cooling, circulation cooling, cooling gear oil inside the gear box
Automatic oiling system
Reducer and main shaft bearing chamber adopts loop closed industrial gear oil lubrication,make lubrication effect more outstanding,reduce the cost of traditional grease lubrication, add a circulating waste cooling oil temperature cooling device, reduce the oil temperature in reducer, protect bearings.
Raw Material and Application
What kind of raw materials can be used to make biomass pellets?
There are many different raw materials can be used in the biomass wood pellet production line, for example wood log, wood chips, wood sawdust, rice hush, straw, palm shell, EFB, wet or dry grass, alfalfa, hemp, tire fiber, organic fertilizer, waste paper, and so on.
Application of wood pellets
Applications: Make Biomass Pellets,Biomass Industry,Burning,Making Wood Fuel et
Main Process to Press Wood Pellets
Different material need different machine. Take wood log as a example,the whole process include:
Durm wood chipper-To make wood log into small size wood chips.
Hammer mill/Crusher-To make wood chips into sawdust
Dryer-To dry the higg moisture content of sawdust into 12-15%
Durm wood chipper-To make wood log into small size wood chips.
Hammer mill/Crusher-To make wood chips into sawdust
Dryer-To dry the higg moisture content of sawdust into 12-15%
Customer Photos
10tph Pellet Line in Philippines
20t/h Pellet Production Line in Asia
5-6t/h Wood Pellet Line in Malaysia
8-10t/h Pellet Plant
New Wood Pellet Machine Cases
New Wood Pellet Machine Cases
5-6t/ wood pellet line in Thailand
20t/h wood pellet line in Asia
wood pellet line
Packing & Delivery
Bolida can provide clients delivery service, we are professional in helping each clients
