Quick Details
-
Brand Name:
-
Hisource
-
Model Number:
-
Hi-F2420GBL-A
-
Place of Origin:
-
Guangdong, China
-
Power:
-
400
-
POE Pin:
-
1/2+3/6-
-
Weight:
-
2.1Kg
-
POE standard:
-
IEEE 802.3af/at
-
PoE Ports:
-
24 port
-
Manufacturer:
-
Shenzhen Hisource Technology
-
Product Name:
-
48v poe switch
-
Warranty:
-
3 Years
-
Dimensions (W x D x H):
-
270mm*180mm*44mm(L*W*H)
-
Keywords:
-
48v Poe Switch
Quick Details
-
Transmission Rate:
-
10/100Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
16
-
Brand Name:
-
Hisource
-
Model Number:
-
Hi-F2420GBL-A
-
Place of Origin:
-
Guangdong, China
-
Power:
-
400
-
POE Pin:
-
1/2+3/6-
-
Weight:
-
2.1Kg
-
POE standard:
-
IEEE 802.3af/at
-
PoE Ports:
-
24 port
-
Manufacturer:
-
Shenzhen Hisource Technology
-
Product Name:
-
48v poe switch
-
Warranty:
-
3 Years
-
Dimensions (W x D x H):
-
270mm*180mm*44mm(L*W*H)
-
Keywords:
-
48v Poe Switch
Factory OEM/ODM 48V Ethernet Poe Switch 8 16 24 Port 250m Long Distance 48V Poe Switch for CCTV security IP Camera
² 24*10/100mbps POE port;2*10/100/1000mbps UP Link port
² 250m Distance
² Support IEEE802.3AF/AT
² Whole Power:400W(52V)
² All port supported by MDI/MDIX auto flip and self negotiation
² Supply 24 10/100Mpbs adaptive high speed forwarding data packet non-lost port.
² Support IEEE802.3x flow control for Full-duplex mode and backpressure for Half-duplex mode.
² Each port max. power supply reached 30W.
Application:
² Wireless Access Point
² IP Camera
² IP Phone
² Computer Networks
| Product | 24+2 port POE Switch(Built-in) |
| Model |
Hi-F2420GBL-A
|
| POE Port | 1 to 24 support IEEE802.3AF/AT Standard |
| Output Power | 15.4W/30W IEEE802.3af/at |
| Power Pin | Both 1/2+ ,3/6- and 4/5+7/8- |
| Whole Power | ≤400W (52V) |
| POE Portocol | IEEE 802.3af/IEEE 802.3at |
| POE Type | End-span |
| Network Standard | IEEE 802.3, IEEE802.3u,802.3x,802.3af/at |
| Network Medium | 10/100/1000BASE-TX:5 class and above non shielded twisted pair |
| Data Distance | ≤250m |
| Switch Capability | 16Gbps |
| Forwarding Mode | Store and forward |
| Forwarding Rate |
10BASE-T:14880PPS/port 100BASE-tx:14800pps/port 1000BASE-tx:148000pps/port |
| MAC Address | MAC address table 4K |
| Port Function |
Power priority mechanism, fast and forward, MAC automatic learning and aging IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode |
| LED Indicator | LINK/ACT.100Mbps;POE Status Indicator; Power indicator;Extender |
| Working Environment | Working temperature:-10°-- 55°C |
| Weight | 2.1 kg |

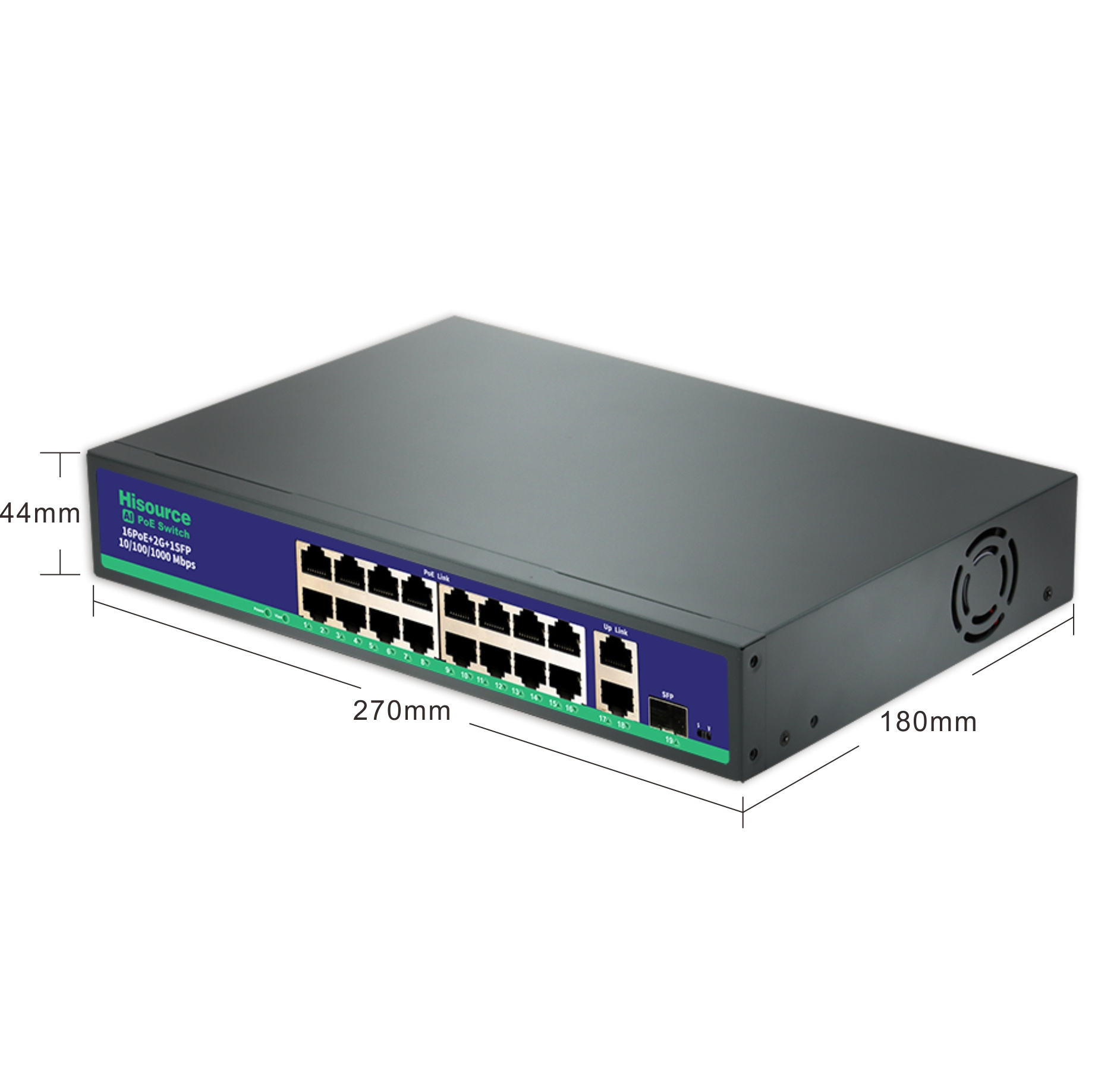

| Size | 270mm*180mm*44mm(L*W*H) |
