Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Kaist
-
Dimension(L*W*H):
-
575x480x590mm
-
Weight:
-
78kg
-
Rated power/speed:
-
15kW/3600RPM
-
Marketing Type:
-
Hot Product 2020
-
After Warranty Service:
-
Video technical support, Online support, Spare parts
-
Local Service Location:
-
None
-
Showroom Location:
-
None
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
Quick Details
-
Displacement:
-
997mL
-
Emission Standard:
-
Euro 3
-
Power:
-
15 KW
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Kaist
-
Dimension(L*W*H):
-
575x480x590mm
-
Weight:
-
78kg
-
Rated power/speed:
-
15kW/3600RPM
-
Marketing Type:
-
Hot Product 2020
-
After Warranty Service:
-
Video technical support, Online support, Spare parts
-
Local Service Location:
-
None
-
Showroom Location:
-
None
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
Product Overview

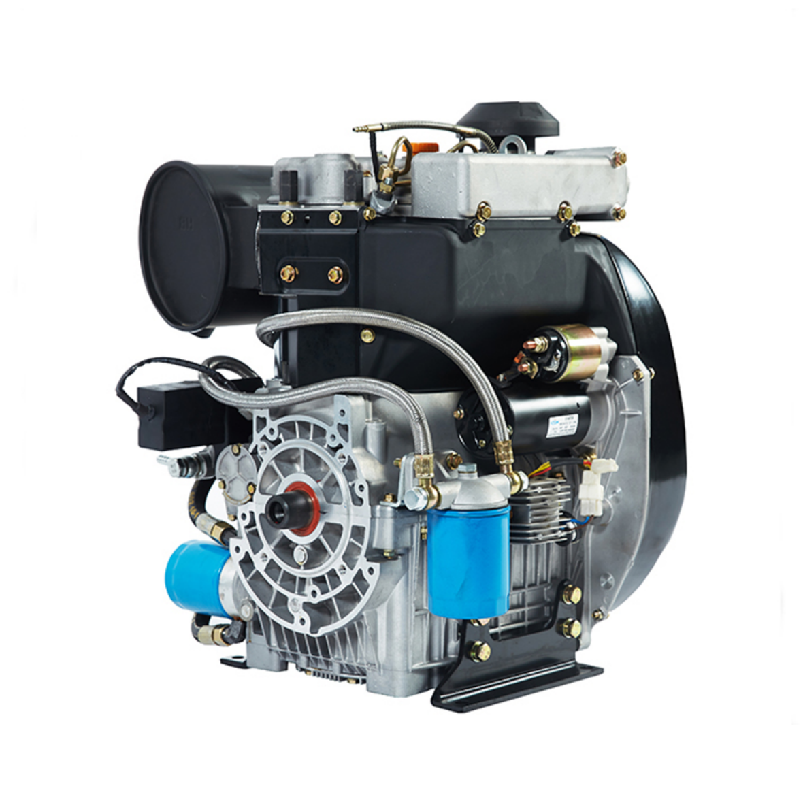

KD292FE Air Cooled 23hp 2-Cylinder Four Stroke Diesel Engine
Kaist series diesel engines are small volume of four stroke compression ignition power equipments developed and produced with the newest technology. These diesel engines are designed with crankshaft 3000/3600RPM power output devices, including single cylinder air cooled diesel engine, L-twin cylinder air cooled diesel engine, V-twin cylinder water cooled diesel engine, V-Twin cylinder air cooled diesel engine etc.
Product Features:
High Power Output, Strong Resistance to Overload
Simple Structure, Stable Performance
High Efficiency, Environmental Protection
Wide Application
With advanced technology and strict QC system, all the KAIST diesel engine have been tested before packing to make sure all the engines are qualified.
Simple Structure, Stable Performance
The 2 cylinder diesel engine
is made with aluminum cylinder body and head to make the engine lightweight and volume small,which can be easy moved, operationed and maintenanced.
High Efficiency, Environmental Protection
The
KD292FE
4 Stroke small diesel engine have done some improvement in the fuel supplying system, which make the engine high efficient and Eco-friendly.
Wide Application
The power range of KAIST diesel engine is from 2HP to 23HP, this
23 hp new diesel engine
with different type of take-off crankshaft can meet many different power equipment requirements.
|
Model No
|
292FE
|
|
|
|
Engine Type
|
Air Cooled, In-Line, 4-Stroke, 2-Cylinder, Direct Injection Diesel Engine
|
|
|
|
Bore*Stroke(mm)
|
2*92x75
|
|
|
|
Displacement(ml)
|
997
|
|
|
|
Compression Ratio
|
19.5:1
|
|
|
|
Rated Power
|
14kW/19.04HP
|
15Kw/20.4Hp
|
|
|
Rated Speed
|
3600RPM
|
3600RPM
|
|
|
Lube Capacity(L)
|
1.8~2.8
|
|
|
|
Starting System
|
Electric Starter
|
|
|
|
Power -Take-Off
|
Crankshaft
|
|
|
|
Overall Dimension(LxWxH）（mm）
|
575x480x590
|
|
|
|
Dry Weight(Kgs)
|
78/88
|
|
|
