Quick Details
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Shandong, China
-
Dimension(L*W*H):
-
950*630*490mm
-
Weight (KG):
-
40 KG
-
Product name:
-
C02 Laser Engraving Cutting Machine
-
Working table:
-
Honeycomb Table
-
Laser tube type:
-
CO2 Sealed Laser Glass Tube
-
Laser power:
-
60W/80W/100W/130W/150W
-
Software:
-
CorelDraw
-
Laser source:
-
Sealed Glass Co2 Laser Tube(Reci/EFR/Yongli)
-
After Warranty Service:
-
Online support
-
System supported:
-
WINDOWS2000/WINDOWS XP/VISTA/WIN7
-
Color:
-
Opitional
Quick Details
-
Engraving Area:
-
300mm*200mm
-
Laser Type:
-
CO2
-
Engraving Speed:
-
500mm/s
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Shandong, China
-
Dimension(L*W*H):
-
950*630*490mm
-
Weight (KG):
-
40 KG
-
Product name:
-
C02 Laser Engraving Cutting Machine
-
Working table:
-
Honeycomb Table
-
Laser tube type:
-
CO2 Sealed Laser Glass Tube
-
Laser power:
-
60W/80W/100W/130W/150W
-
Software:
-
CorelDraw
-
Laser source:
-
Sealed Glass Co2 Laser Tube(Reci/EFR/Yongli)
-
After Warranty Service:
-
Online support
-
System supported:
-
WINDOWS2000/WINDOWS XP/VISTA/WIN7
-
Color:
-
Opitional
Laser co2 engraving mobile phone cutting film machine 50w 320

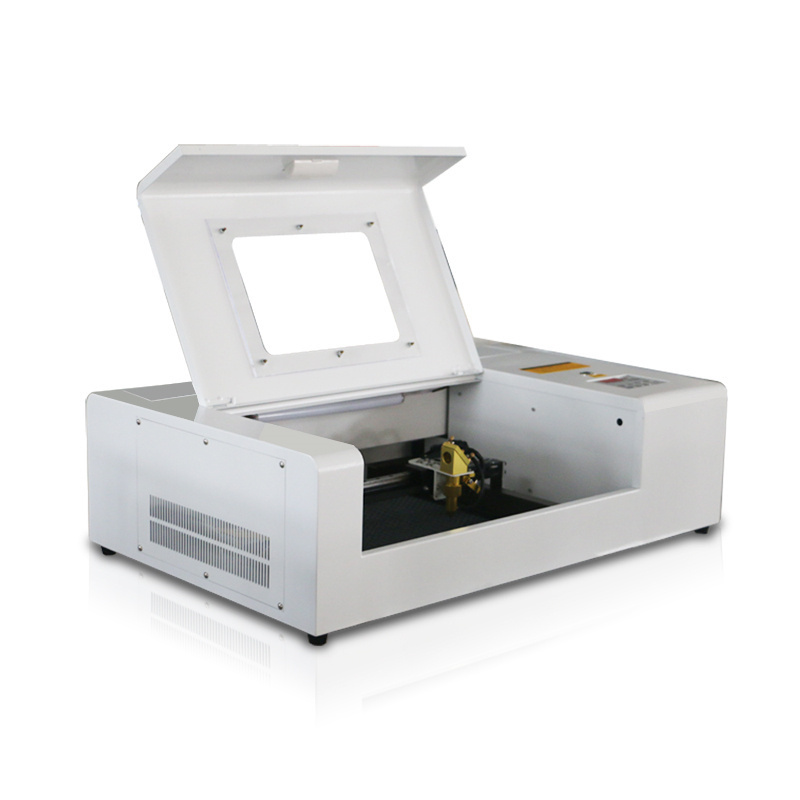

mini laser co2 engraving machine 40w k40 rubber stamp engraving
| COE | USB Port | ||||||
| USB Port | CO2 Gas | ||||||
| Tube Trigger Volt | 20KV | ||||||
| Tube Operating Volt | 15KV | ||||||
| Current | 18~22mA | ||||||
| Engraving Area | 12x8in.(30x20cm) | ||||||
| Maximum Item Size to Engrave | 10.25W x 8.75L x 2.85H in. | ||||||
| Laser Tube (life hours) | 1500-2000 Hours | ||||||
| Laser Power | 40W | ||||||
| Engraving Speed | 0-180mm/s (0-7 in./s) | ||||||
| Cutting Speed | 0-18mm/s (0-0.7 in./s) | ||||||
| Minimum Shaping Character | 1 X 1mm (0.04 X0.04)in | ||||||
| Resolution Ratio | 0.026mm / 0.001 in. (1000dpi) | ||||||
| Power Supply | 110V/60Hz for USA, Canada, Japan etc. | ||||||
| 220V~250V for other countries all over the | |||||||
| world. Please tell us what voltage you want | |||||||
| after you buy this item. | |||||||
| Resetting Positioning | less than 0.01mm (0.0004 in.) | ||||||
| Motor Type | Stepper Motor | ||||||
| Software Supported | CORELLASER (CAN SUPPORT CORELDRAW | ||||||
| DIRECTLY). | |||||||
| It can support Window 7/8/vista/XP | |||||||
| Power Consumption | less than 250W | ||||||
| Operating Temperature | 32-113F (0-45C) | ||||||
| Graphic Format Supported | PLT/DXF/BMP/JPG/GIF/PGN/TIF etc | ||||||
| Water Cooling | Water Pump include | ||||||
| Recommended Spare Parts/Consumables | Laser Tube, Focal lens, Reflection lens | ||||||
| Dimension OF this machine | 95*63*49cm, and weight (included the | ||||||
| plywood) is 40kgs. | |||||||
CO2 Tube Laser Engraving / Cutting Machine FL-1390 More Information
Components Display
These components information help you learn more about the parts
constituting the laser engraving machine.
Accessories Package
Accessories above will be delivered together with the laser engraving
machine to offer you the best user experience.
Package Display
Kindly note that our pacakge is multilayer shockproof wooden case package,
which gurantee the quality when you receive the order after the delivery.
Application Material Display
Workshop Overview
As a genuine manufacture we always regard the quality inspection as the most
important thing of all. Looking forward to your visit.
Exhibitions Moments
As a company majors in the line of export for long, of course we've attended a big
mount of various exhibitions domestic and abroad.
CO2 Tube Laser Engraving / Cutting Machine FL-1390
Just hope it can help you learn us further if possible.
