Quick Details
-
Voltage:
-
220 -- 440 V
-
Power:
-
0.75-- 11KW
-
Dimension(L*W*H):
-
Customized
-
Weight:
-
150 KG
-
Output product name:
-
juice
-
Material:
-
Stainless Steel
-
Juicing rate:
-
50-60%
-
Name:
-
Juicer Machine
-
Final product:
-
juice
-
Advantage:
-
High Efficiency Fruit Press
-
Capacity:
-
0.5-5T/H
-
After Warranty Service:
-
Spare parts
-
Local Service Location:
-
Canada
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
Certification:
-
CE
Quick Details
-
Raw material:
-
Fruit, Vegetables
-
Model Number:
-
KW-LXZ500
-
Place of Origin:
-
China
-
Voltage:
-
220 -- 440 V
-
Power:
-
0.75-- 11KW
-
Dimension(L*W*H):
-
Customized
-
Weight:
-
150 KG
-
Output product name:
-
juice
-
Material:
-
Stainless Steel
-
Juicing rate:
-
50-60%
-
Name:
-
Juicer Machine
-
Final product:
-
juice
-
Advantage:
-
High Efficiency Fruit Press
-
Capacity:
-
0.5-5T/H
-
After Warranty Service:
-
Spare parts
-
Local Service Location:
-
Canada
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
Certification:
-
CE
Introduction of ginger pineapple apple coconut screw crushing and juicing machine
1. This machine is suitable for extracting juice apple, pear, ginger etc.
2. Screw propulsion and extrusion
3. The space between screw stem and cylinder can be adjusted according to different material extracted
4. Residue is automatically separated from juice
5. Material is the stainless steel

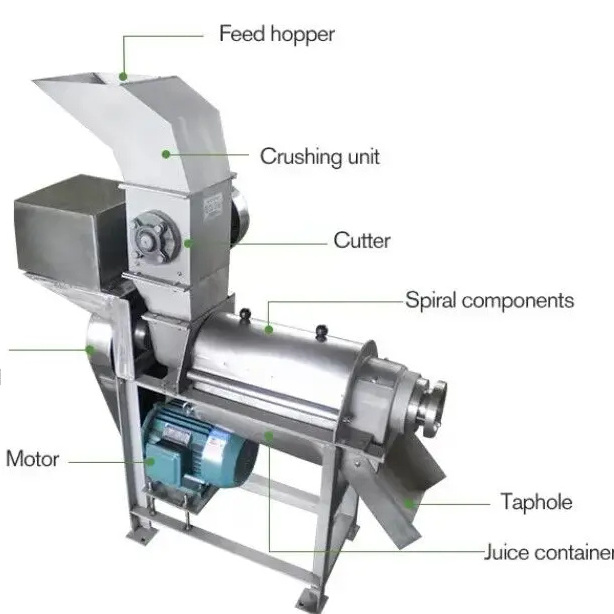

Working principle of ginger pineapple apple coconut screw crushing and juicing machine
Start screw juicer, screw shaft move, crushed pulp, juice, skin through the hopper into the spiral juicer, spindle screw bottom diameter with the direction of movement of materials from small to large and flight lead from large to small, When the material is the propeller, because the spiral chamber gradually reduced, the formation of the progressive press materials; fruit juice through a strainer collection to set the bucket. Coarse fiber particles waste through the annular gap and the regulator end of the spindle screw head tapered portion formed to the slag discharge hopper.
Technical data of ginger pineapple apple coconut screw crushing and juicing machine
|
Model |
Capacity (t/h) |
Power(KW) |
Overall size (mm) |
|
KW-LXZ-0.5 |
0.1-0.5 |
1.1 |
940×320×820 |
|
KW-LXZ-1.5 |
0.5-1.5 |
4 |
158×440×1320 |
|
KW-LXZ-2.5 |
1.5-2.5 |
15 |
2020×640×1560 |
