Quick Details
-
Max. Spindle Speed (r.p.m):
-
100 r.p.m
-
Width of bed (mm):
-
250 mm
-
Spindle Motor Power(kW):
-
30
-
Max. Turned Length (mm):
-
2000
-
Travel (X Axis)(mm):
-
800 mm
-
Travel (Z Axis)(mm):
-
1115 mm
-
Place of Origin:
-
Henan, China
-
Dimension(L*W*H):
-
3135*3070*3915mm
-
Brand Name:
-
BAISHUN MACHINERY, BAISHUN MACHINERY
-
Model Number:
-
CK5120
-
Voltage:
-
380V
-
Weight (KG):
-
17500
-
Marketing Type:
-
Hot product2023
-
Product name:
-
Brass Machining Lathe
-
Model:
-
CK5120
-
Style:
-
Vertical
-
CNC or Not:
-
CNC
-
Automatic Grade:
-
Full automatic
-
Control system:
-
GSK SIEMENS FANUC
-
Keyword:
-
CNC Vertical Lathe
-
Function:
-
Metal Turning Lathe
-
Package:
-
Export standard
Quick Details
-
Type:
-
VERTICAL
-
Max. Length of Workpiece (mm):
-
2000
-
Year:
-
2023
-
Max. Spindle Speed (r.p.m):
-
100 r.p.m
-
Width of bed (mm):
-
250 mm
-
Spindle Motor Power(kW):
-
30
-
Max. Turned Length (mm):
-
2000
-
Travel (X Axis)(mm):
-
800 mm
-
Travel (Z Axis)(mm):
-
1115 mm
-
Place of Origin:
-
Henan, China
-
Dimension(L*W*H):
-
3135*3070*3915mm
-
Brand Name:
-
BAISHUN MACHINERY, BAISHUN MACHINERY
-
Model Number:
-
CK5120
-
Voltage:
-
380V
-
Weight (KG):
-
17500
-
Marketing Type:
-
Hot product2023
-
Product name:
-
Brass Machining Lathe
-
Model:
-
CK5120
-
Style:
-
Vertical
-
CNC or Not:
-
CNC
-
Automatic Grade:
-
Full automatic
-
Control system:
-
GSK SIEMENS FANUC
-
Keyword:
-
CNC Vertical Lathe
-
Function:
-
Metal Turning Lathe
-
Package:
-
Export standard
Product Description

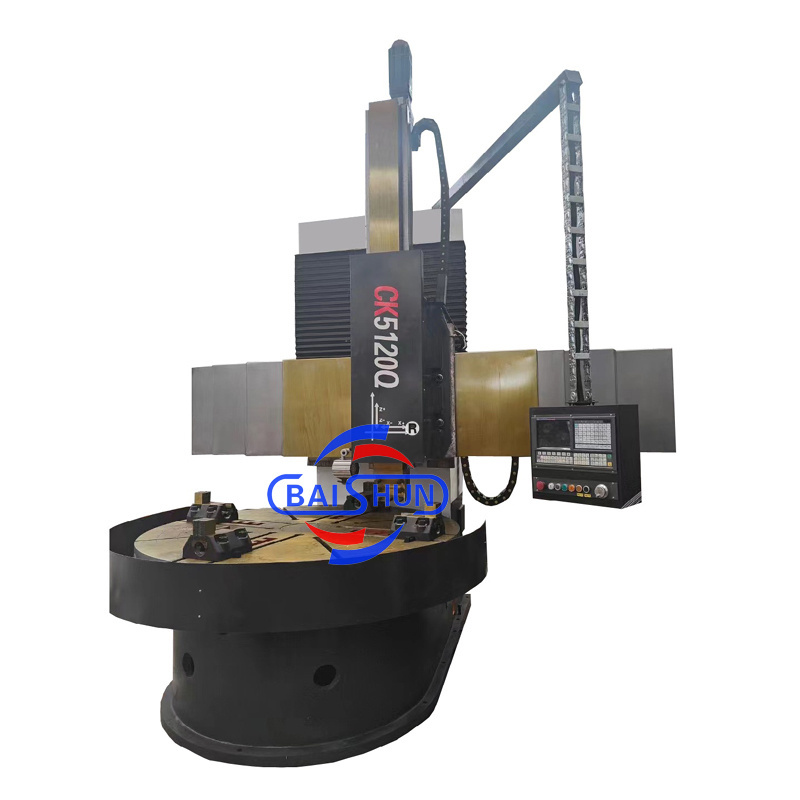

Economic Single Column Universal Vertical Turning Lathe CNC Machine VTL CNC Vertical Lathe Machine
The CNC vertical lathe, also known as a vertical turning center, is a machine tool used for turning and cutting metal components with high precision and efficiency.
Specification
|
Model
|
CK518
|
CK5112Q
|
CK5116Q
|
CK5120A
|
CK5126A
|
|
Max. turning diameter of vertical tool rest (mm)
|
800
|
1200
|
1600
|
2000
|
2600
|
|
Working table diameter (mm)
|
700
|
1000
|
1400
|
1800
|
2200
|
|
Max. height of work-piece (mm)
|
800
|
1000
|
1200
|
1250
|
1400
|
|
Max. weight of work-piece (kg)
|
1500
|
1500
|
3200
|
8000
|
8000
|
|
Range of worktable rotation speed (rpm)
|
30-260
|
20-180
|
15-160
|
3.2-100
|
2.2-70
|
|
Feeding series
|
Stepless
|
Stepless
|
Stepless
|
Stepless
|
Stepless
|
|
Range of tool rest feed (mm/min)
|
0.25-90
|
0.25-90
|
0.25-90
|
0.8-86
|
0.8-86
|
|
Cross beam travel (mm)
|
500
|
1000
|
1200
|
890
|
1090
|
|
Horizontal travel of tool rest (mm)
|
500
|
700
|
900
|
1115
|
1400
|
|
Vertical travel of tool rest (mm)
|
450
|
500
|
750
|
800
|
800
|
|
Size of section of cutter bar (mm)
|
30*40
|
30*40
|
30*40
|
30*40
|
30*40
|
|
Main motor power (kw)
|
11
|
15
|
15
|
30
|
30
|
