Quick Details
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Curtis
-
Model Number:
-
XQT-4HV
-
Product Name:
-
Electric Motor
-
Application:
-
Electric Vehicle
-
Voltage:
-
48V
-
Power:
-
4KW
-
Color:
-
Black
-
Noise:
-
Low Voice
-
Packing:
-
wooden box
-
Quality:
-
High quality
-
Place of origin:
-
China
Quick Details
-
Speed(RPM):
-
2800rpm
-
Continuous Current(A):
-
200A
-
Efficiency:
-
IE 1
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Curtis
-
Model Number:
-
XQT-4HV
-
Product Name:
-
Electric Motor
-
Application:
-
Electric Vehicle
-
Voltage:
-
48V
-
Power:
-
4KW
-
Color:
-
Black
-
Noise:
-
Low Voice
-
Packing:
-
wooden box
-
Quality:
-
High quality
-
Place of origin:
-
China
Product Description
Specifications:

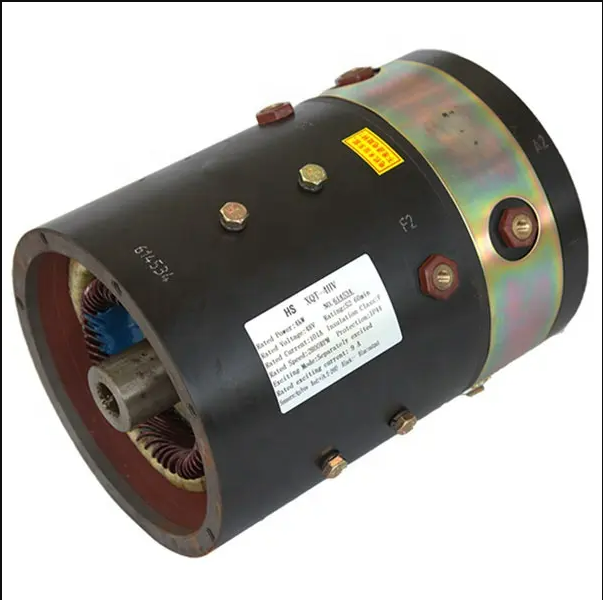

* Motor model: XQT-4HV
* Motor type: DC Seperately Excited Motor
* Rated working voltage: 48V DC
* Power rate: 4 kW
* Parts: carbon brushes, springs and carbon brush frame (holder)
If you buy the full set of carbon brush assemblage (4 carbon brushes + 4 springs + frame), these parts will not be assembled
together. They will be shipped as individual pieces.
We may supply also the DC series winding motor model XQ-4HV / XQ-4-4HV and their parts (carbon brushes, springs and carbon brush
holder). For more details, please contact us.
* Motor model: XQT-4HV
* Motor type: DC Seperately Excited Motor
* Rated working voltage: 48V DC
* Power rate: 4 kW
* Parts: carbon brushes, springs and carbon brush frame (holder)
If you buy the full set of carbon brush assemblage (4 carbon brushes + 4 springs + frame), these parts will not be assembled
together. They will be shipped as individual pieces.
We may supply also the DC series winding motor model XQ-4HV / XQ-4-4HV and their parts (carbon brushes, springs and carbon brush
holder). For more details, please contact us.
The DC SepEx motor model XQT-4HV is used as traction motor for electric vehicles, widely applied by vehicle brands EAGLE, Star EV,
Marshell, etc.
Typical application: 6-8 seats golf cart.
Features:
* Working voltage: 48V DV
* Power rate: 4 kW
* Rating for S2 60 min
* Armature working current: 101 Amperes
* Insulation class: F
* Rated speed: 2800 rpm
* Spline: 10 teeth internal type
* Ingress protection: IP44
* Rated exciting current: 9 Amperes (minimum exciting current: 5A)
* Speend sensor: 4 pulse / rev, (red wire: power +; black wire: power -; blue wire: speed signal)
Marshell, etc.
Typical application: 6-8 seats golf cart.
Features:
* Working voltage: 48V DV
* Power rate: 4 kW
* Rating for S2 60 min
* Armature working current: 101 Amperes
* Insulation class: F
* Rated speed: 2800 rpm
* Spline: 10 teeth internal type
* Ingress protection: IP44
* Rated exciting current: 9 Amperes (minimum exciting current: 5A)
* Speend sensor: 4 pulse / rev, (red wire: power +; black wire: power -; blue wire: speed signal)
