Quick Details
-
color:
-
grey
-
material:
-
aluminium
-
L.O frequency:
-
1998MHz
-
Input frequency:
-
2.2-2.4GHz
-
gain:
-
39dB
-
packing:
-
standard export carton for 1998MHz MMDS down converter
-
Factory:
-
Anhui bowei electronics technology Co.,Ltd
-
Name:
-
mmds
Quick Details
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
BOTE
-
Model Number:
-
BT-281B
-
color:
-
grey
-
material:
-
aluminium
-
L.O frequency:
-
1998MHz
-
Input frequency:
-
2.2-2.4GHz
-
gain:
-
39dB
-
packing:
-
standard export carton for 1998MHz MMDS down converter
-
Factory:
-
Anhui bowei electronics technology Co.,Ltd
-
Name:
-
mmds

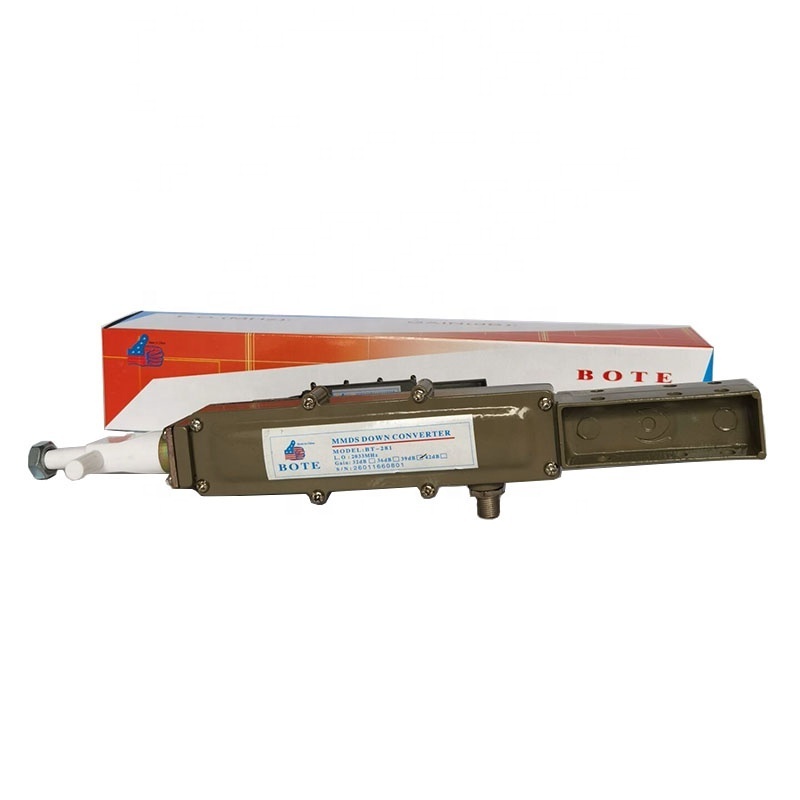

MMDS-DOWNCONVERTER SPECIFICATION
|
Input Frequency |
2400 to 2600MHz |
|
Noise Figure |
2.5dB@24dB,1.8dB@32dB,1.4dB@36dB |
|
Image Rejection |
≥50dB |
|
VSWR |
1.5:1 |
|
If Rejection |
≥80dB |
|
PCS Rejection |
≥100dB |
|
WCS Rejection |
≥50dB |
|
3 order intermodulation |
≤-50dB |
|
Conversion Gain |
24dB±1.5dB,32dB±1.5dB,36dB±1.5dB |
|
L.O. Leakage Antenna Port |
≤-85dBm |
|
L.O. Leakage IF-Port |
≤-50dBm |
|
L.O. Phase Noise |
-80dBc@100Hz offset -92dBc@1kHz offset -93dBc@10kHz offset -95dBc@100kHz offset -120dBc@1MHz offset |
|
Output P1dB |
+14dBm(typical) |
|
Gain Flatness Over Entire Range |
≤±1.5dB |
|
Gain Flatness |
≤0.2dB/CHANNEL |
|
IF Output Impedance |
75ohms |
|
DC Current Consumption |
14v-24v |
|
DC Input voltage |
14v-24v |
|
Spurious in IF Band |
≤-100dBm |
|
L.O. Frequency |
1998MHz… |
|
L.O. Stability |
≤±30KHz |
|
Operating Temperature |
-40centigrade to +70centigrade |
|
Input Type |
BT280:Integrated Dipole Antenna |
|
Lightning Protection |
Meets IEEE Stands |
|
100% Hermetic |
Sealed |
FAQ:
1.Q:Are you a factory or trading company?
A:We are a factory with more than 18 years LNBF manufacture experiences
2..Q:What is the material of your products?
A: The materials all aluminum,no rust for outdoor use.
3.Q: can I get some samples?
A: We are honored to offer you samples for you test .
4.Can design special band as our specification?
A:yes,of course,we have succeed design down converter between band 2.1-2.3,2.3-2.5,2.2-2.4 and 2.7-2.9GHz .
Design new products is our biggest advantages.
5.Q:How does your factory do regarding quality control?
A:Quality is priority. Bowei people always attach great importance to quality controlling from the very beginning to the very end to ensure high quality products .
