Quick Details
-
Rated Exhaust Volume (m3 /min):
-
4
-
Oil Content ppm:
-
≤6
-
Net Weight (kg):
-
780
-
Dimensions (mm):
-
2110*1500*1620
-
Weight:
-
780kg
-
Certification:
-
CE ROHS
-
Voltage:
-
220V
-
After Warranty Service:
-
Video technical support
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Video technical support
Quick Details
-
Weight (KG):
-
780
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
zhongmei
-
Rated Exhaust Volume (m3 /min):
-
4
-
Oil Content ppm:
-
≤6
-
Net Weight (kg):
-
780
-
Dimensions (mm):
-
2110*1500*1620
-
Weight:
-
780kg
-
Certification:
-
CE ROHS
-
Voltage:
-
220V
-
After Warranty Service:
-
Video technical support
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Video technical support
Products Description
Introduction of Factory Direct Sale Towable Twin Diesel Screw Air Compressor For Water Well Drilling Rig Machine
1. Towable Twin Diesel Screw Air Compressor For Water Well Drilling Rig Machine adopted Yuchai engines;
2. Automatic control and protection system;zmwm02
3. Error free capacity control;
4. Deluxe micro-computer florescence contrlo panel;
5. All weather models for high altitude operations (customization available
for above 5500m high altitude applications by APCOM only);
6. High quality filtration system with safety filters.
Product Paramenters
Parameter of
Factory Direct Sale Towable Twin Diesel Screw Air Compressor For Water Well Drilling Rig Machine
|
Model
|
Rated Exhaust Pressure
|
Rated Exhaust
|
Oil Content
|
Diesel Engine
|
Net Weight
|
Dimensions
|
|
|
|
Volume
|
|
|
|
|
|
|
(mpa)
|
(m3 /min)
|
ppm
|
kw(hp)
|
(kg)
|
(mm)
|
|
42SCY-7
|
0.7
|
4
|
≤6
|
42(65)
|
780
|
2110*1500*1620
|
|
58SCY-8
|
0.8
|
7
|
≤6
|
58(80)
|
1550
|
3140*1740*1900
|
|
110SCY-8
|
0.8
|
12
|
≤6
|
110(150)
|
2480
|
3120*1630*2290
|
|
110SCY-10
|
1
|
12
|
≤6
|
110(150)
|
2480
|
3120*1630*2290
|
|
110SCY-10
|
1
|
10
|
≤6
|
110(150)
|
2480
|
3120*1630*2290
|
|
110SCY-14.5
|
1.45
|
8.5
|
≤6
|
110(150)
|
2480
|
3120*1630*2290
|
|
140SCY-8
|
0.8
|
17
|
≤6
|
140(180)
|
3000
|
3650*1700*2040
|
|
138SCY-14.5
|
0.8/1.45
|
12.8
|
≤6
|
140(180)
|
3000
|
3350*2060*2350
|
|
139SCY-13
|
1.3
|
15
|
≤6
|
140(180)
|
3000
|
3650*1700*2040
|
|
177SCY-14.5
|
1.45
|
15.2
|
≤6
|
179(240)
|
3800
|
3720*1970*2550
|
|
178SCY-14.5
|
1.45
|
17
|
≤6
|
179(240)
|
3800
|
3720*1970*2550
|
|
180SCY-8
|
0.8
|
20
|
≤6
|
179(240)
|
3800
|
3720*1970*2550
|
|
180SCY-14.5
|
1.45
|
17
|
≤6
|
179(240)
|
3800
|
3720*1970*2550
|
|
190SCY-16
|
1.6
|
21
|
≤6
|
194(260)
|
3800
|
4600*1900*2350
|
|
250SCY-14.5
|
1.45
|
22
|
≤6
|
250(340)
|
5500
|
4600*2000*2350
|
Details Images

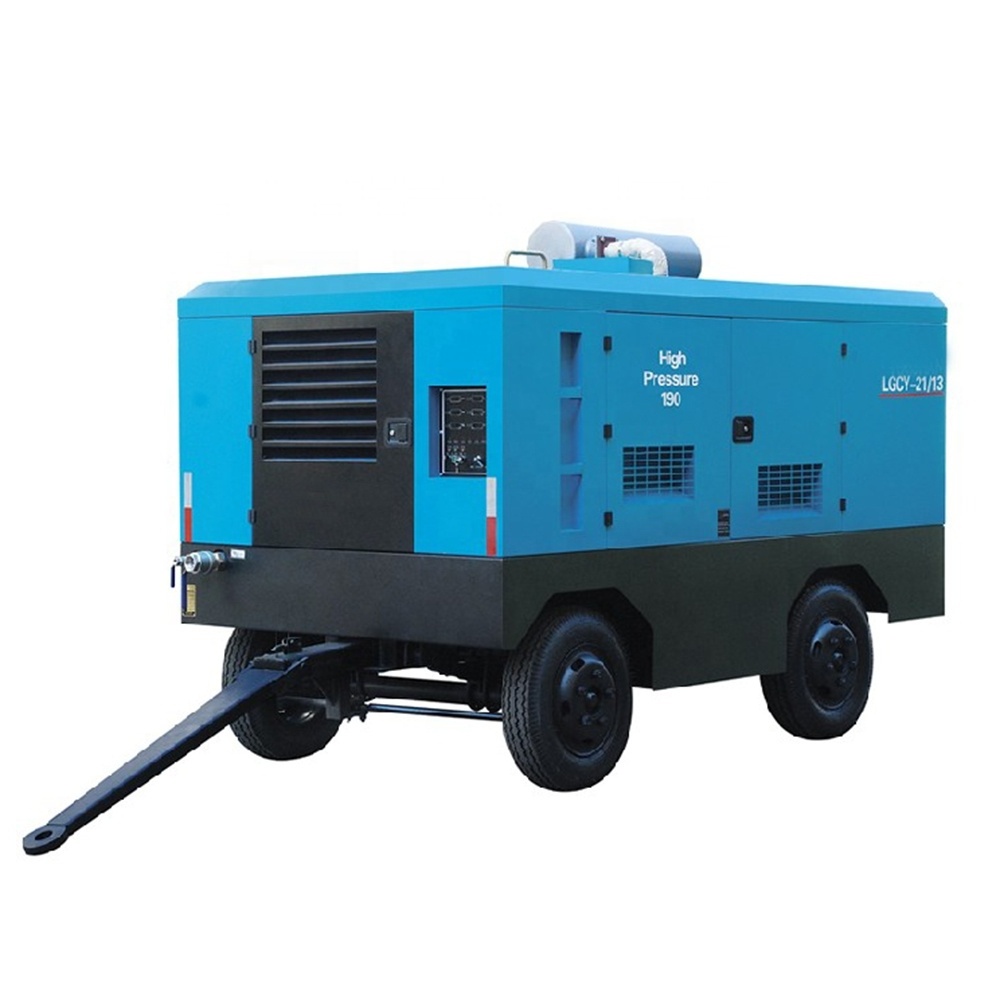

Photos of Factory Direct Sale Towable Twin Diesel Screw Air Compressor For Water Well Drilling Rig Machine
