Quick Details
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
RuiLian
-
Model Number:
-
Polyurethane Foam Board
-
Product name:
-
Polyurethane Foam Sandwich Panel
-
Core material:
-
Hard Polyurethane Foam
-
Surface material:
-
0.06mm~0.08mm Aluminum foil
-
Thickness:
-
10-130mm
-
Width:
-
≤1.2m
-
Length:
-
no limitation
-
Density:
-
≥38kg/m³
-
Thermal conductivity:
-
≤0.024W/mK
-
MOQ:
-
3200 square meters
-
Fire Rating:
-
B1,B2,B3
Quick Details
-
Project Solution Capability:
-
graphic design, Cross Categories Consolidation
-
Application:
-
Hotel
-
Design Style:
-
Contemporary
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
RuiLian
-
Model Number:
-
Polyurethane Foam Board
-
Product name:
-
Polyurethane Foam Sandwich Panel
-
Core material:
-
Hard Polyurethane Foam
-
Surface material:
-
0.06mm~0.08mm Aluminum foil
-
Thickness:
-
10-130mm
-
Width:
-
≤1.2m
-
Length:
-
no limitation
-
Density:
-
≥38kg/m³
-
Thermal conductivity:
-
≤0.024W/mK
-
MOQ:
-
3200 square meters
-
Fire Rating:
-
B1,B2,B3

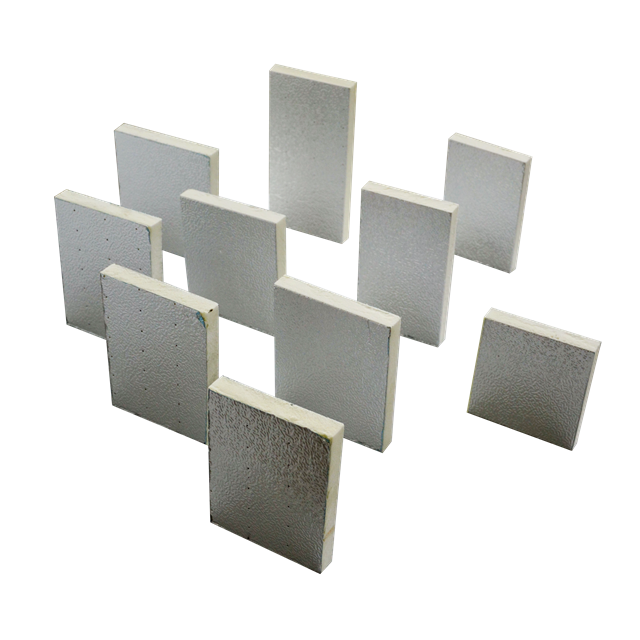

Products Description
Aluminum foil polyurethane insulation board has the following advantages:
1.Excellent thermal insulation performance: polyurethane foam has low thermal conductivity, and aluminum foil can reflect thermal radiation, thus improving the thermal insulation effect.
2.Good moisture-proof performance: The surface of the aluminum foil polyurethane insulation board is covered with a layer of aluminum foil, which can effectively prevent water vapor penetration and ensure the insulation effect.
3.Corrosion resistance: polyurethane foam has good corrosion resistance and can resist the corrosion of acid, alkali and other chemicals.
4.Easy installation: Aluminum foil polyurethane insulation board is lightweight and easy to install, which can significantly reduce construction costs.
5.Environmental protection and energy conservation: Aluminum foil polyurethane insulation board materials are all environmentally friendly materials, which will not cause pollution to the environment, and have good energy-saving effects, which can significantly reduce energy consumption.
In summary, aluminum foil polyurethane insulation board has advantages such as excellent insulation performance, moisture resistance, corrosion resistance, and easy installation, making it an excellent insulation material.
Product Application
Scope of use of the product
1. Building wall and roof insulation board
2. Pipeline and ventilation pipeline insulation board
3. Solar insulation system
4. Building insulation insulation system
Product Structure Diagram
Product Paramenters
|
Category
|
Unit
|
Parameter
|
|
Insulation core
|
Performance density/kg/
m
3
|
≥35
|
|
|
Thermal conductivity w/(m·k)
|
≤0.024
|
|
|
Water absorption (%)
|
≤3
|
|
Integral sheet
|
Dimensional stability(%)
|
70℃ 48≤1.5
-30℃ 48≤1.0
|
|
|
Compression strength(MPa)
|
≥0.15
|
|
|
Tensile bond strength(MPa)
|
≥0.15，And the damage is on the insulation core layer
|
|
Aluminum foil thickness
|
0.06mm or 0.08mm
|
|
|
Project
|
According to customer needs
|
|
Packaging
|
Wooden pallet, No breakage, 40 PCS in one pallet,
|
|
Aluminium Foil Surface
|
No holes, No tears, Straight edges, No notches
|
|
Dimension
|
Length is no limited, Width maximum is 1.2M
|
|
Thickness
|
From 10mm to 100mm
|
|
Packaging Film
|
Can print clients‘ logo
|
|
Rigid core Polyurethane foam color
|
Can be white,yellow,green,blue etc., according to customers' need
|
