Quick Details
-
Power (kW):
-
7.5
-
Range of Spindle Speed(r.p.m):
-
1 - 4500 r.p.m
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
LINGLING
-
Voltage:
-
220v or 380v or as consumer request
-
Dimension(L*W*H):
-
1200*850*1780mm
-
Weight (KG):
-
760 KG
-
Marketing Type:
-
IN STOCK
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
material:
-
stainless steel
-
After Warranty Service:
-
Online support
-
Local Service Location:
-
None
-
Certification:
-
ISO 9001 certificate
Quick Details
-
Output (kg/h):
-
100 - 500 kg/h
-
Feeding Size (mm):
-
1 - 12 mm
-
Output Size (mesh):
-
12 - 120 mesh
-
Power (kW):
-
7.5
-
Range of Spindle Speed(r.p.m):
-
1 - 4500 r.p.m
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
LINGLING
-
Voltage:
-
220v or 380v or as consumer request
-
Dimension(L*W*H):
-
1200*850*1780mm
-
Weight (KG):
-
760 KG
-
Marketing Type:
-
IN STOCK
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
material:
-
stainless steel
-
After Warranty Service:
-
Online support
-
Local Service Location:
-
None
-
Certification:
-
ISO 9001 certificate

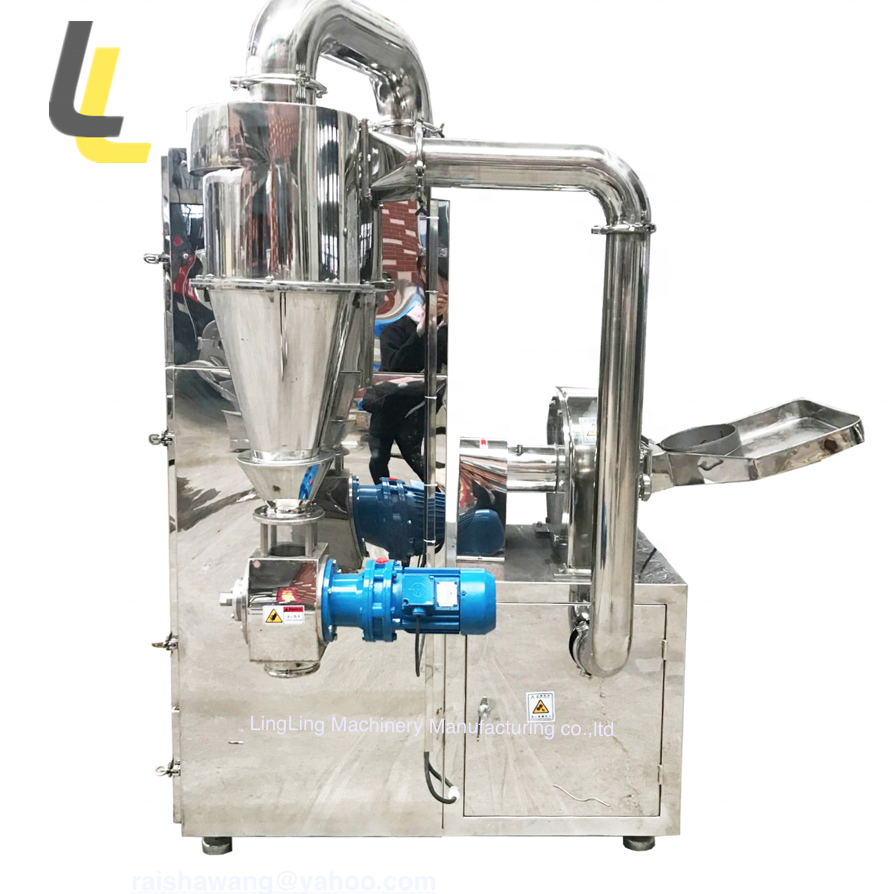

High Quality WLF Series Automatic feed grinding machine
Main Uses:
The machine made up of main engine, auxility engine and electric-box, featuring winnowing without sieve or mesh, ever granule size, continuous operation, etc. The machine reaches advanced world-level and is widely used for material grinding in, chemical and foodstuff industries, etc.
Working Principle:
Materials are transported into smashing mesh via screw conveyor, then crushed by the high-speed revolving razor blade. With the negative pressure, materials will be transported into cyclone separator, ejected by pass-breezing machine. Without the powder float in whole producion line the powder float in the sky.
Technical Data:
|
Model |
WFJ-15 |
WFJ-20 |
WFJ-30 |
WFJ-60 |
WFJ-80 |
|
Capacity (kg) |
20~100 |
50~200 |
100~400 |
200~800 |
300~1000 |
|
Feed size (mm) |
<10 |
<10 |
<12 |
<12 |
<12 |
|
Output size (mesh) |
80-320 |
80-320 |
80-320 |
80-320 |
80-320 |
|
Motor power (kw) |
13.37 |
18.37 |
42.5 |
77.5 |
96 |
|
Spindle speed (rpm) |
5800 |
4200 |
3800 |
3200 |
2800 |
|
Weight (kg) |
850 |
1000 |
1300 |
2500 |
3000 |
|
Overall size(L*W*H)(mm) |
4200*1200*2700 |
4700*1250*2900 |
6640*1300*3960 |
7500*2300*4530 |
8500*2500*4600 |
The above is our technical data. We can also design and manufacture different varieties upon customer's request.
Price need discuss again upon machine customization
