Quick Details
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Application:
-
fro forming steel balls of different sizes
-
Power:
-
1.1-15

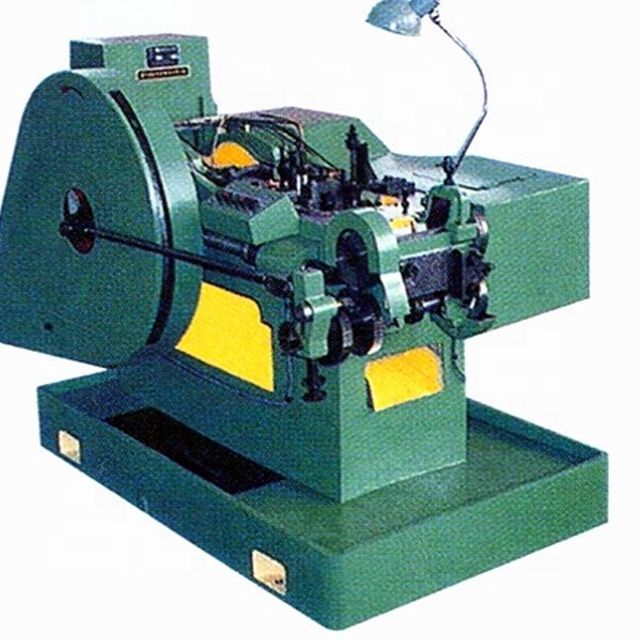

STEEL-BALL MAKING MACHINE
This machine is specially designed for manufacturing ball- blanks. It applies the form of reasonable construction, reliable performance and easy adjustment.
Technical Specifications
| Model | Z32-5 | Z32-7.5 | Z32-10 | Z32-13 | Z32-16 |
| Ball size range to be processed (mm) | 1.5-4.7 | 3.1-7.4 | 4.7-9.5 | 6.3-12.7 | 9.5-15.8 |
| Rated Output (pcs/min.) | 250 | 220 | 150 | 130 | 100 |
|
Motor power (kw) |
1.1 | 2.2 | 5.5 | 7.5 | 15 |
| Weight (kg) | 600 | 1600 | 2500 | 3000 | 8660 |
| Dimensions (L*W*H)(m) | 1.3x0.81x1.075 | 1.8x1.05x1.22 | 2.19x1.3x1.35 | 2.5x1.8x1.35 | 4x2.54x2.57 |
The demostration video of the machine please check the following link:
http://v.youku.com/v_show/id_XMTQ5Njc1Mzg2MA==.html?from=y1.7-1.2
And feel free to contact us for the password for viewing.
Advanced models with higher speed are available too, for more information, please check the ZS32 series steel ball making machines or contact us for proper recommendation.
