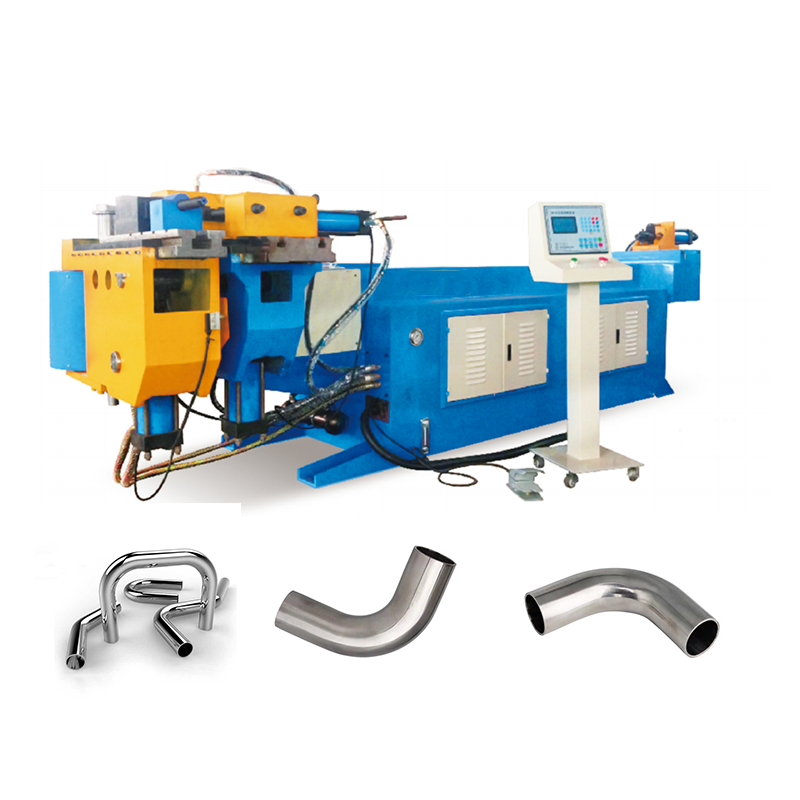

Automatic Tube Bender Pipe Bending Machine Steel Bending Machine

Automatic Tube Bender Pipe Bending Machine Steel Bending Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $6999

≥3 Sets

US $5999

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: Duorui

Year:: 2021

Power (kW):: 5.5

Weight (KG):: 500

Product Name:: Electric Platform Pipe Bending Mahicne

Application:: Embossed, Industrial Profile

Processing Material:: Stainless Steel / Copper / Carbon Steel / Iron / Galvanized /Aluminum

Function:: Stable

Type:: Semi Automatic

Color:: Customer's Request

Material:: Iron Plate

Keyword:: Pipe Bending Mahicne

After-sales Service Provided:: Video technical support

Machine Type:: Tube Bending Machine

Quick Details

Bending Radius (mm):: 20 - 600

Max. Bending Angle (Deg):: 190

Bending Precision (Deg):: 1

Place of Origin:: Guangdong, China

Brand Name:: Duorui

Year:: 2021

Power (kW):: 5.5

Weight (KG):: 500

Product Name:: Electric Platform Pipe Bending Mahicne

Application:: Embossed, Industrial Profile

Processing Material:: Stainless Steel / Copper / Carbon Steel / Iron / Galvanized /Aluminum

Function:: Stable

Type:: Semi Automatic

Color:: Customer's Request

Material:: Iron Plate

Keyword:: Pipe Bending Mahicne

After-sales Service Provided:: Video technical support

Machine Type:: Tube Bending Machine

Item		2.5-6	3-8	4-10/4-12
Voltage		380V,50Hz, 3 Phase	380V,50Hz, 3 Phase	380V,50Hz, 3 Phase
Straightening Wheels		22 sets	22 sets	28 sets
Bending Mold		SKD11/51	SKD11/51	SKD11/51
Wire Feeding Wheels		3 sets	3 sets	3 sets
Servo Motor(Kw)		4.8 Kw 2.3Kw (Wire Feed Servo),1.5Kw(Bending Deceleration Servo),1Kw (Cutting Servo)	4.8 Kw 2.3Kw (Wire Feed Servo),1.5Kw(Bending Deceleration Servo),1Kw (Cutting Servo)	6.9 Kw 2.3Kw (Wire Feed Servo),2.3Kw(Bending Deceleration Servo),2.3Kw (Cutting Servo)
Cutter Motor		ø6 iron wire	ø8 iron wire	ø8 iron wire
Wire Material		Round wire, flat wire, square wire (applicable to any material wire)	Round wire, flat wire, square wire (applicable to any material wire)	Round wire, flat wire, square wire (applicable to any material wire)
Wire Diameter		2.5-6mm	3-8mm	4-12mm
Machine Size (mm)		28008501500	28008501500	31507851800
Machine Weight (Kg)		1100	1200	1500
Memory		10000 group data ,300 actions/group	10000 group data ,300 actions/group	10000 group data ,300 actions/group
Wire Feeding Speed		90m/min	24m/min	18m/min
Max. Bending Speed		(Out)300 r/min,Angle ±180°	(Out)300 r/min,Angle ±180°	(Out)50 r/min,Angle ±180°
Action Direction		Inside/ outside mold: UP/DOWN , 360°rotation	Inside/ outside mold: UP/DOWN , 360°rotation	Inside/ outside mold: UP/DOWN , 360°rotation
Efficiency		20-25 unit/min(Like 200*200mm Frame)	12-15 unit/min(Like 200*200mm Frame)	8-10 unit/min(Like 200*200mm Frame)
Bending Accuracy		±0.5mm	±0.5mm	±0.5mm
Wire Feeding Accuracy		±0.5mm	±0.5mm	±0.5mm
Pneumatic System		3	3	3
	Solenoid Valve	3	3	3
Servo System	Language System	Chinese/English	Chinese/English	Chinese/English
	Control Screen	Touch+ Press Button	Touch+ Press Button	Touch+ Press Button
	Control Module	32-bit high performance processor	32-bit high performance processor	32-bit high performance processor
Mechanical Properties	The mechanical action of the equipment is controlled by the bending speed of the bending action programmed by the microcomputer,and various commands are issued to form products of various models and specifications
	Action control, automatic feeding, automatic return, straightening, cutting, bending and forming.
	Various shapes are combined through up to 300 action settings.
