Quick Details
-
Brand Name:
-
HZ
-
Model Number:
-
HZ-F500QD
-
power supply:
-
AC110-230V, 50-60Hz
-
Belt Speed:
-
20~25m/min
-
Detecting ability:
-
diameter 0.6mm iron ball
-
usage:
-
Auto Testing Machine
-
Weight:
-
250kg
-
control panel:
-
7" LCD display screen
-
tunnel size:
-
can be customized
-
Construction Material:
-
304 SUS stainless steel
-
certificate:
-
CE,FCC,Rohs and so on
-
warranty:
-
5 years and on-side service
Quick Details
-
Warranty:
-
3 years
-
Type:
-
conveyor belt type
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HZ
-
Model Number:
-
HZ-F500QD
-
power supply:
-
AC110-230V, 50-60Hz
-
Belt Speed:
-
20~25m/min
-
Detecting ability:
-
diameter 0.6mm iron ball
-
usage:
-
Auto Testing Machine
-
Weight:
-
250kg
-
control panel:
-
7" LCD display screen
-
tunnel size:
-
can be customized
-
Construction Material:
-
304 SUS stainless steel
-
certificate:
-
CE,FCC,Rohs and so on
-
warranty:
-
5 years and on-side service

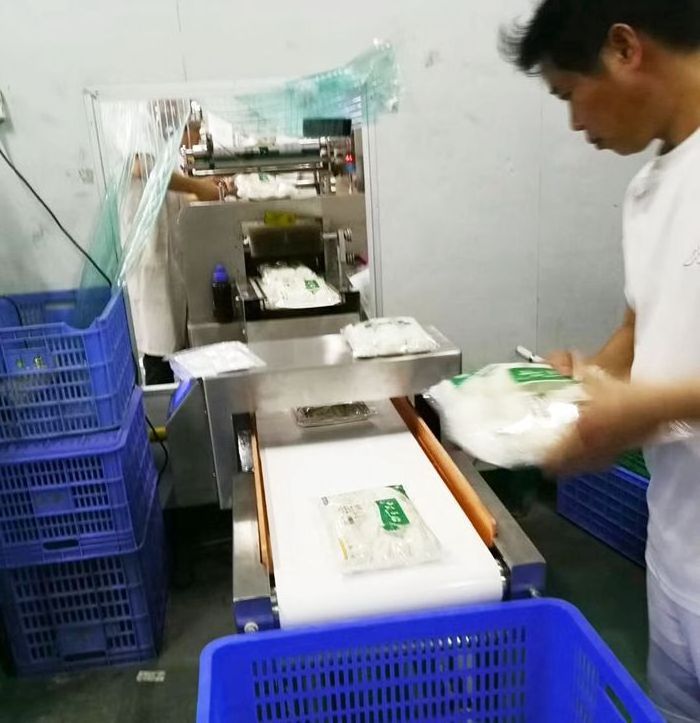

Auto conveyor belt foods needle metal detector detection
A new generation needle metal detector with micro-computer intelligent high sensitivity and high reliable full touch screen has been launched based on our company’s many years’ engaged in security equipment researching and manufacturing. It brings great convenience in maintenance and auto-diagnostic functions among its same class.
1. The combination of new analog and digital circuit greatly improve the products’ reliability and intelligence.
2. Adopting new 5’’ touch screen input and large-scale integrated circuits , analog signals collected by the CPU and converted to digital processing,output, automatic search for the best point of the detected objects’ metal content.This greatly improves the detection sensitivity and reliability.
3. Adopting human setting interface,the whole operation process is simple ,intuitive and easy.You can directly complete the settings via the full touch LCD screen.
4. Can set different needed functions and modes.The detection sensitivity has different levels-can increase and decrease between 1-9 levels.The larger the number is ,the lower sensitivity it detect.When detect trace metals,sound and light alarm simultaneously.The substandard products automatically return back to stop status and the excluder device controls the separation.
|
Model |
HZ-F500QD |
||||||||
|
The Width of inspection window (mm) |
400 |
400(customization) |
|||||||
|
The Height of inspection(mm) |
100 |
120 |
150 |
200 |
250 |
300 |
350 |
400 |
|
|
Detection Sensitivity |
Fe(Φmm) |
≥0.6 |
≥0.8 |
≥1.0 |
≥1.2 |
≥1.5 |
≥2.0 |
≥2.5 |
≥3.0 |
|
Non-Fe(Φmm) |
≥1.0 |
≥1.2 |
≥1.5 |
≥2.5 |
≥3.0 |
≥3.5 |
≥4.0 |
≥4.5 |
|
|
304SUS(Φmm) |
≥1.2 |
≥1.5 |
≥2.0 |
≥2.5 |
≥3.0 |
≥3.5 |
≥4.0 |
≥4.5 |
|
|
Alarm |
audible and visual alarm ,automatic stop |
||||||||
|
Raw material |
SUS304 |
||||||||
|
Normal machine size (mm) |
160(L)mm×90(W)mm×100(H)cm(Based of normal size) |
||||||||
|
Net Gross |
330kg (based of normal size) |
||||||||
|
Electrical source (Power) |
110V/220V/380V 50Hz/60Hz (Power)90W |
||||||||
|
Conveyor speed |
25-30m/min(can design it according customer's requirements) |
||||||||
|
Conveyor height |
650mm±50mm (normal ) can manufacture it as customer's need |
||||||||
|
Noted: the above sensitivity judged by the machine without bearing any parts,the actual sensitivity have relation with nature and the temperature of the products etc, can install auto -rejection equipments according custom's requirements |
|||||||||
Structural representation
(1) search unit (2) electric appliance box (3) clamping bolt (4) frame (5) footing (6) universal wheel (7) conveyor
