Quick Details
-
Reverse Speed(km/h):
-
25
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
CNMC
-
Dimension(L*W*H):
-
8,703*2,630*3,360mm
-
After-sales Service Provided:
-
Overseas third-party support available, Video technical support, Online support
-
Engine type:
-
SC9DK190.1G3
-
Rated power:
-
190HP
-
Overall dimension:
-
8,703*2,630*3,360mm
-
Color:
-
Yellow
-
Attachments:
-
RIPPER
-
Operate Weight:
-
15,070kg
-
Blade (L*W*H):
-
3,974*25*607mm
-
Min. Turning Radius:
-
7.8m
-
Max. Lifting Height:
-
475mm
-
After Warranty Service:
-
Online support, Spare parts
-
Local Service Location:
-
None
-
Certification:
-
CE
Quick Details
-
Forward Speed(km/h):
-
40
-
Engine Brand:
-
SC9DK190.1G3
-
Working diameter:
-
3974MM
-
Reverse Speed(km/h):
-
25
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
CNMC
-
Dimension(L*W*H):
-
8,703*2,630*3,360mm
-
After-sales Service Provided:
-
Overseas third-party support available, Video technical support, Online support
-
Engine type:
-
SC9DK190.1G3
-
Rated power:
-
190HP
-
Overall dimension:
-
8,703*2,630*3,360mm
-
Color:
-
Yellow
-
Attachments:
-
RIPPER
-
Operate Weight:
-
15,070kg
-
Blade (L*W*H):
-
3,974*25*607mm
-
Min. Turning Radius:
-
7.8m
-
Max. Lifting Height:
-
475mm
-
After Warranty Service:
-
Online support, Spare parts
-
Local Service Location:
-
None
-
Certification:
-
CE

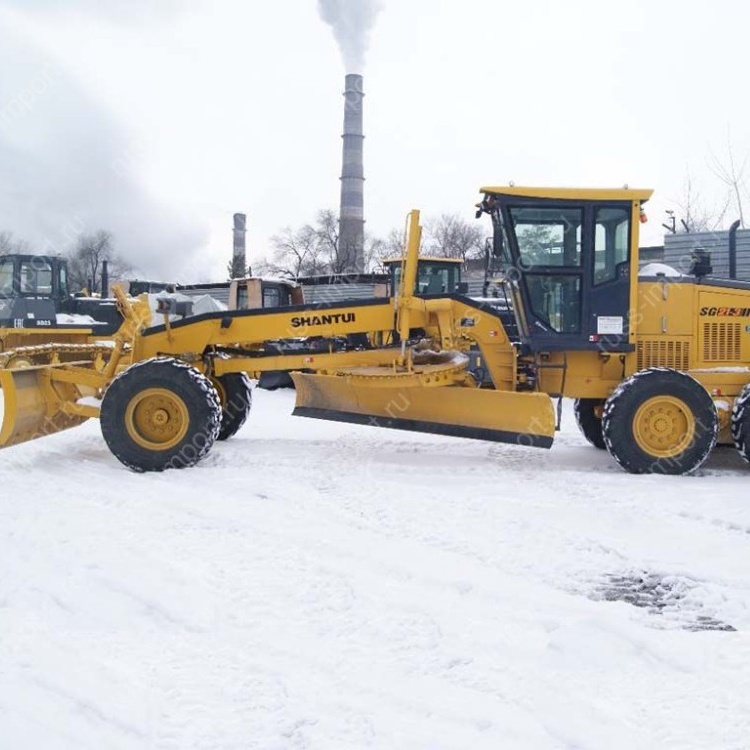

China 190HP Small Motor Grader Good Price
Product Description
Main Features
| Items | SE-M919 |
| Operation Weight (Base Machine) | 15,070kg |
| Overall Dimensions (L*W*H) | 8,703*2,630*3,360mm |
| Blade Length (L*W*H) | 3,974*25*607mm |
| Max. Lifting Height | 475mm |
| Max. Depth of Cut | 715mm |
| Max. Drawbar | ≥78kN |
| Wheelbase | 6,140mm |
| Frame Articulation Angle | 20° |
| Min. Turning Radius | 7.8m |
| Engine Brand | SDEC SC9DK190.1G3 |
| Rated power | 140kW |
| Transmission Type | Hangchi 6WG180 |
| Travel Speed (Forward/Rear) | 40/25km/h |
| Rear Axle/Tandem | SEM ST22 |
| Service brake | Outboard disc with brake caliper,Air to oil Control |
| Oscillation (Front up/Rear up) | 15/25° |
| Max. Oscillation Angle | ±16° |
| Steering Angle (Left/Right) | 47.5° |
| Max. Lean Angle of Front Wheels | 18° |
| Hydraulic System | Load sensing,PPPC |
