Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Millart
-
Model Number:
-
Z5140A, Z5140B, Z5150A, Z5150B
-
Voltage:
-
As customer request
-
Dimension(L*W*H):
-
1090x905x2465mm
-
Power (kW):
-
3
-
Weight (KG):
-
1250 KG
-
Marketing Type:
-
Hot Product 2023
-

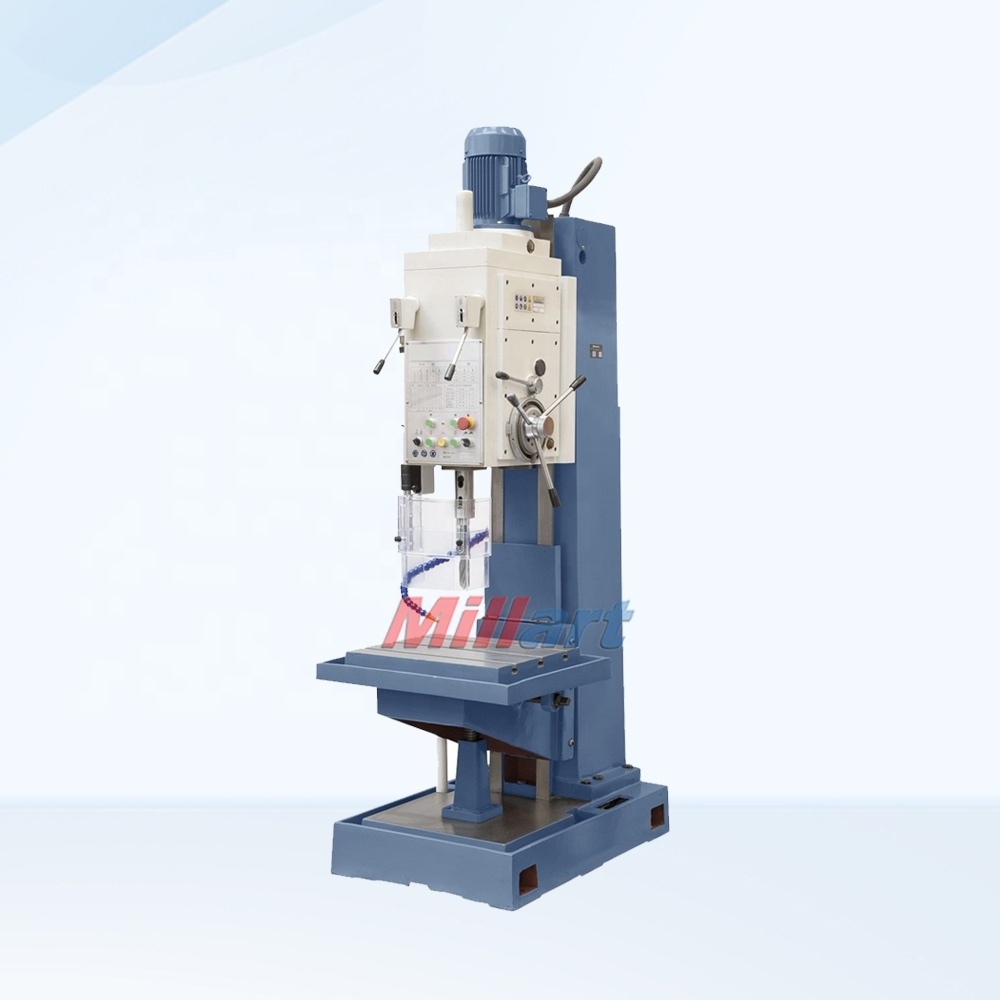

Product name:
-
Radial Drilling Machine
-
Model:
-
Z5140A
-
Color:
-
Customizable
-
Max.drilling dia (mm):
-
40
-
Spindle travel (mm):
-
250
-
Spindle taper:
-
MT4
-
Table size (mm):
-
560x480
-
Main motor power (kw):
-
3
-
Overall dimensions (cm):
-
1090x905x2465
-
Net Weight (kg):
-
1250
Quick Details
-
type:
-
Radial Drilling Machine
-
Max. Drilling Dia. (mm):
-
40
-
Range of Spindle Speed(r.p.m):
-
3.15 - 1400 r.p.m
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Millart
-
Model Number:
-
Z5140A, Z5140B, Z5150A, Z5150B
-
Voltage:
-
As customer request
-
Dimension(L*W*H):
-
1090x905x2465mm
-
Power (kW):
-
3
-
Weight (KG):
-
1250 KG
-
Marketing Type:
-
Hot Product 2023
-
Product name:
-
Radial Drilling Machine
-
Model:
-
Z5140A
-
Color:
-
Customizable
-
Max.drilling dia (mm):
-
40
-
Spindle travel (mm):
-
250
-
Spindle taper:
-
MT4
-
Table size (mm):
-
560x480
-
Main motor power (kw):
-
3
-
Overall dimensions (cm):
-
1090x905x2465
-
Net Weight (kg):
-
1250
Product Overview
PRODUCT SPECIFICATIONS
|
Model
|
Z5140A/Z5150A
|
Z5140B/Z5150B
|
|
||
|
Max drilling dia (mm)
|
40/50
|
40/50
|
|
||
|
Max.feed resistance（N）
|
16000
|
|
|
||
|
Spindle torque (Nm)
|
350
|
|
|
||
|
Spindle taper (mm)
|
MT4/MT5
|
MT4/MT5
|
|
||
|
Spindle travel (mm)
|
250
|
|
|
||
|
Spindle box travel by manual (mm)
|
200
|
|
|
||
|
Spindle speeds range(steps)r/min
|
31.5-1400(12)
|
|
|
||
|
Feed rates(steps)Feed rates(steps)
|
0.056-1.80(9)
|
|
|
||
|
Table size (mm)
|
560x480
|
|
|
||
|
Max distance from spindle nose to worktable surface(mm)
|
780/740
|
|
830
|
||
|
Table vertical travel (mm)
|
300
|
|
|
||
|
Distance from spindle to column(mm)
|
335
|
|
|
||
|
Main motor power (kw)
|
3/4
|
3/4
|
|
||
|
Overall dimension （L×W×H）(mm)
|
1090x905x2535
|
|
|
||
|
Net Weight (kg)
|
1250/1190
|
|
|
||
|
Packing dimension(L×W×H）(mm)
|
122X80×248 /122X80x224
|
|
|
||
Standard Accessories：
Coolant system
Work lamp
Drill chuck
Reduction sleeve
Wrenches
Optional Accessories:
Machine vise
Spindle guard
Depth indicator
