Quick Details
-
Rated Lifting Moment:
-
11000 t.m
-
Max. Lifting Height:
-
85 m
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
TOP BRAND
-
Boom luffing angle:
-
30~83°
-
Tower jib length:
-
20~59M
Quick Details
-
Weight (KG):
-
800000
-
Application:
-
Construction
-
Rated Loading Capacity:
-
800 Ton
-
Rated Lifting Moment:
-
11000 t.m
-
Max. Lifting Height:
-
85 m
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
TOP BRAND
-
Boom luffing angle:
-
30~83°
-
Tower jib length:
-
20~59M

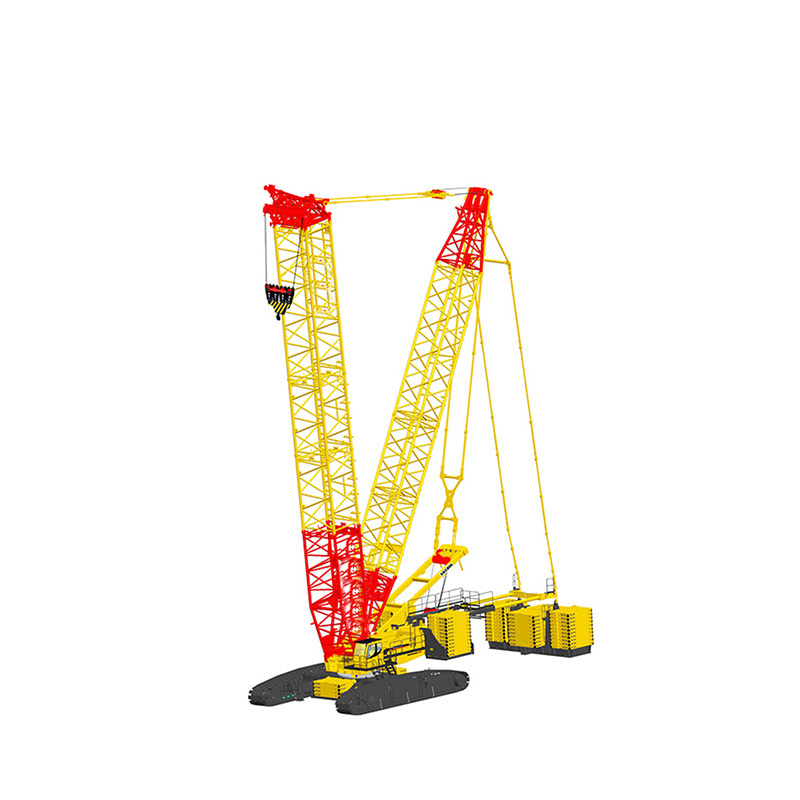

Top Quality Factpry Price 800 Ton Crawler Crane XGC800
-
* Under the condition of same output torque, 4-roller drive travel unit features smaller diam., stronger output traction, and powerful walking.
* Boom head exchangeable and combined-type pulley block can be generally used for boom, tower jib and special jib, reduced the cost of customer use and maintenance of the crane.
* Main unit uses outrigger cylinder to support the crane for loading and unloading, track frame uses its mast to form mast (Optional) for self assembly/disassembly, boom sections use power trolley for pin shaft connection, hydraulic system uses hydraulic cylinder for assembly; boom and turntable, mast and turntable, hoist winch and turntable, luffing winch and turntable, track frame and car-body etc. use self hydraulic system and hydraulic cylinder for pin shaft connection, removable catwalks, ladders and etc., can be lifted and removed easily by two men.
* Use of the power from superlift luffing winch, design of boom special lifting devices for superlift working condition, use of superlift mast and a auxiliary trolley to lift and install the boom, greatly improved lifting operation efficiency.
|
Item |
Unit |
Parameter value |
|
Parameter Item |
- |
XGC800 |
|
Max. rated lifting capacity for boom |
(t) |
800 |
|
Max. rated lifting capacity for fixed jib |
(t) |
550 |
|
Max. rated lifting capacity for luffing jib |
(t) |
400 |
|
Max. load moment |
(t.m) |
11000 |
|
Max. rated lifting capacity for tower jib |
(t) |
400 |
|
Max. rated lifting capacity for boom single top |
(t) |
50 |
|
Max. rated lifting capacity for special jib |
(t) |
145 |
|
Boom length |
(m) |
24~90( heavy type) |
|
30~150 ( light type) |
||
|
Boom luffing angle |
(°) |
-3~85 |
|
Fixed jib length |
(m) |
12 |
|
Tower jib length |
(m) |
30~102 |
|
Max. dimension of single unit in transport state(L×W×H) |
(m) |
12.5×3.38×3.4 |
|
Fixed jib offset angle |
(°) |
15 |
|
Special jib length |
(m) |
7 |
