Quick Details
-
Size:
-
7x5FT
-
Surface treatment:
-
Galvanized
-
OE NO.:
-
rc
Quick Details
-
Max Payload:
-
2800KG
-
Brand Name:
-
RC
-
Place of Origin:
-
Hebei, China
-
Size:
-
7x5FT
-
Surface treatment:
-
Galvanized
-
OE NO.:
-
rc

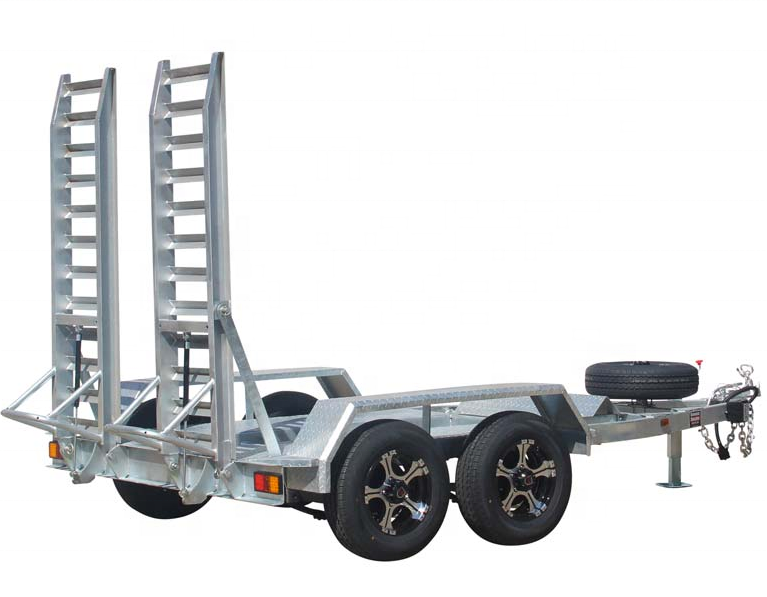

Hot dipped galvanized plant trailer
Trailer specification table:
|
Loading capacity/KG |
No. of axles |
No. of brakes |
Tire size |
Drawbar tube/mm |
Bottom chassis main beam/mm |
Bottom chassis other beam/mm |
Ground clearance height/ mm |
Net Weight/ KG |
|
|
7 x 5 |
2800 |
2 |
2 |
185R14C |
100*50*4 |
70*50*3 |
50*50*3 |
470 |
830 |
|
8.5 x 6 |
3500 |
2 |
2 |
650R15 |
100*50*4 |
70*50*3 |
50*50*3 |
470 |
910 |
|
8.5 x 6 |
4200 |
2 |
2 |
7.00R15 |
100*50*4 |
70*50*3 |
50*50*3 |
470 |
950 |
Trailer body construction and materials
Trailer floor: 2.5mm thick steel checker plate welded onto chassis
Trailer mudguard and foot step: 2.5mm checker plate as standard
Trailer suspension and wheel
Paint ed 45 x 45mm solid drop axle for 2.8t trailer
Painted 50 x 50mm solid drop axle for 3.5t and 4.2t trailer
Standard hand braking system
7 leaf x 60mm x 7mm thick eye-to-eye leaf springs for 2.8t trailer
8 leaf x 60mm x 8mm thick eye-to-eye leaf springs for 3.5t and 4.2t trailer
Tandem springs with rocker roller suspension
5 wheels for 1 trailer (including 1 spare wheel on the draw bar)
Heavy duty and beautiful alloy rims (14" alloy rim for 2.8t trailer, 15" alloy rim for 3.5t and 4.2t trailer)
14" alloy rim
15" alloy rim
Trailer details and accessories
Safety chains: hot dipped galvanized, comply with Australian standard, with standard markings
Coupler: Australian standard 50mm ball coupling with Australian standard markings, with hand brake lever
Jockey Wheel: heavy duty single jack up leg
With 4 welded heavy duty tie down hooks in the front
With bucket rest area in the front (welded wire at bottom and 2 adjustable limit claws on top)
With 2 steel loading ramps at rear
Trailer electric set-up
LED tail Lights and number plate lights (ADR approved or with E-mark)
6 reflectors (white, red and amber)
7-pin flat plug
Wire cable: standard 7-core wire cable
Trailers can be customized as per customers’ requirements.
