- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Frequency Range:
-
DC~6GHz
-
VSWR:
-
≤1.20
-
Power Rating:
-
2W
-
Characteristic impedance:
-
50
-
Attenuation(dB):
-
1-30dB
-
Tolerance(dB):
-
±0.5
-
Connectors port:
-
SMA-M/SMA-F
-
Certificate:
-
CE ROHS ISO9001
-
MOQ:
-
1 Pcs
-
Keyword:
-
Stainless Steel SMA Attenuator
Quick Details
-
Brand Name:
-
JW
-
Type:
-
SMA Attenuator
-
Model Number:
-
SMA Male to Female Attenuator
-
Place of Origin:
-
Jiangsu, China
-
Frequency Range:
-
DC~6GHz
-
VSWR:
-
≤1.20
-
Power Rating:
-
2W
-
Characteristic impedance:
-
50
-
Attenuation(dB):
-
1-30dB
-
Tolerance(dB):
-
±0.5
-
Connectors port:
-
SMA-M/SMA-F
-
Certificate:
-
CE ROHS ISO9001
-
MOQ:
-
1 Pcs
-
Keyword:
-
Stainless Steel SMA Attenuator

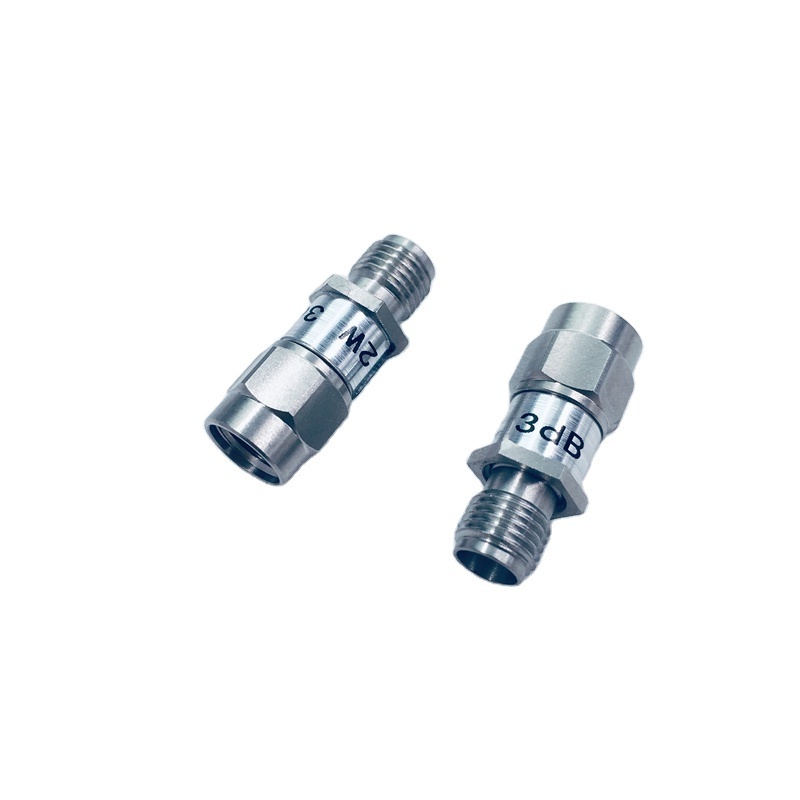

2W 3db DC-6G Stainless Steel SMA Male to Female Attenuator
2W 3db DC-6G SMA Attenuator
|
Frequency |
DC~6GHz |
|
Connector |
SMA-JK |
|
VSWR |
≤1.2 |
|
Power |
2W |
|
Impedance |
50Ω |
|
Attenuation value |
1-30dB |
|
Attenuation |
1, 3, 5, 6, 10, 15, 20, 30dB is available 1-10dB.±0.5dB,15-30dB±1dB |
|
Temperature Range |
-55 ℃ ~ +125 ℃ |
