DY620,DY840 and DY1150. The compact size of DY series loaders offer best solution far narrow space works, and front articulated design makes the turning radius smaller which also helps a lot. Telescopic boom offers wider usage.
Can be equipped with
EU stage V
and
EPA
diesel engine.
Compact design
100+ attachments optional
Hydrostatic
four wheel drive
Telescopic boom
Self leveling
Differential lock
Boom floating
Enclosed cab optional
Front articulated structure makes the turning radius much smaller.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
2195*980*2150mm
-
Machine Weight:
-
1100 kg
-
Bucket capacity:
-
0.45 cbm
-
Marketing Type:
-
New Product 2023
-
Rated loading capacity:
-
500-1600kgs
-
Max. reach:
-
2750-3540mm
-
Min. turning radius:
-
1980mm
-
Turning angle:
-
40 degree
-
Transmission:
-
4x4
-
Speed:
-
10-17km/h
-
Standard tire:
-
23*8.5-12
-
Pressure:
-
190bar
-
Working oil flow:
-
33L/min
-
Travel oil flow:
-
50L/min
Quick Details
-
Engine Brand:
-
Kubota
-
Power:
-
42kw, 18.2kw
-
Brand Name:
-
Yuanxing
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
2195*980*2150mm
-
Machine Weight:
-
1100 kg
-
Bucket capacity:
-
0.45 cbm
-
Marketing Type:
-
New Product 2023
-
Rated loading capacity:
-
500-1600kgs
-
Max. reach:
-
2750-3540mm
-
Min. turning radius:
-
1980mm
-
Turning angle:
-
40 degree
-
Transmission:
-
4x4
-
Speed:
-
10-17km/h
-
Standard tire:
-
23*8.5-12
-
Pressure:
-
190bar
-
Working oil flow:
-
33L/min
-
Travel oil flow:
-
50L/min
Product Description

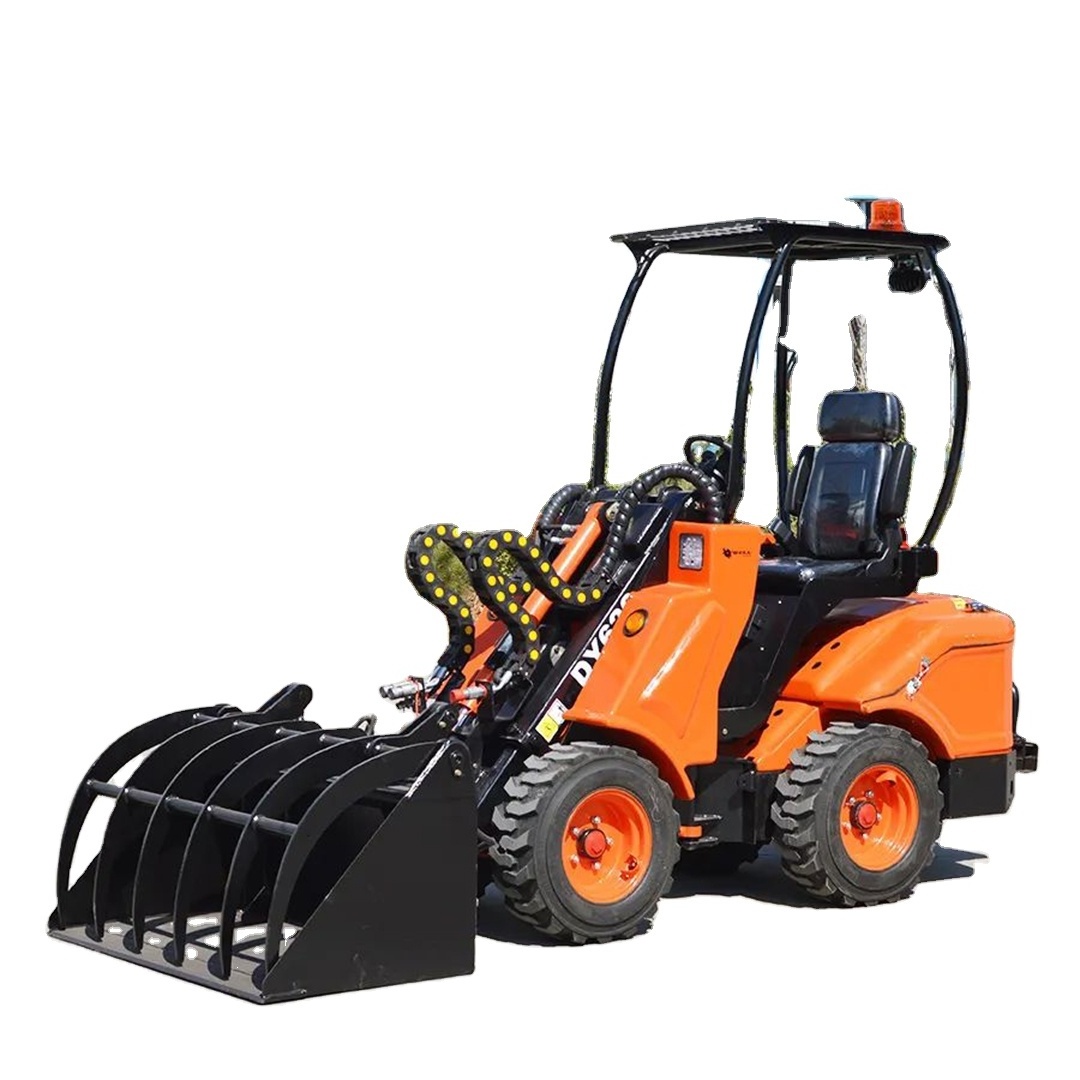

Compact mini wheel loader
|
DY620 Technical Data
|
|
|
|
Overall Dimensions (L*W*H)
|
2195*980*2150mm
|
|
|
Max. reach(boom extended)
|
2750mm
|
|
|
Max. reach(boom retracted)
|
2150mm
|
|
|
Rated loading capacity
|
500kg-800kg
|
|
|
Min. turning radius
|
1980mm
|
|
|
Turning angle
|
400
|
|
|
Transmission
|
4*4
|
|
|
Speed
|
10km/h
|
|
|
Weight
|
1100 kg
|
|
|
Standard tire
|
23X8.5-12
|
|
|
Tire pressure
|
2.8 bar
|
|
|
Oil tank capacity
|
35L
|
|
|
Pressure
|
190bar
|
|
|
Working oil flow
|
33L/min
|
|
|
Tracking oil flow
|
50L/min
|
|
|
Oil model(mineral oil)
|
L-HL46
|
|
|
Fuel tank capacity
|
18L
|
|
|
Battery capacity
|
55Ah
|
|
|
Voltage
|
12v
|
|
Product Advantages
Compact design
100+ attachments optional
Hydrostatic four wheel drive
Telescopic boom
Self leveling
Differential lock
Boom floating
Enclosed cab optional
Front articulated structure makes the turning radius much smaller.
100+ attachments optional
Hydrostatic four wheel drive
Telescopic boom
Self leveling
Differential lock
Boom floating
Enclosed cab optional
Front articulated structure makes the turning radius much smaller.
EPA, Euro stage V engine optional
|
Compare
|
DY620
|
DY840
|
DY1150
|
|
Overall Dimensions (L*W*H)
|
2195mm*980mm*2150mm
|
2600*1240*2300mm
|
3410mm*1500mm*2350mm
|
|
Max. Reach (Boom Extended)
|
2750mm
|
3000mm
|
3540mm
|
|
Max. Reach (Boom Retracted)
|
2150mm
|
2480mm
|
2910mm
|
|
Rated Loading Capacity
|
500kg-800kg
|
850kg-1000kg
|
1600kg
|
|
Min. Turning Radius
|
1980mm
|
2480mm
|
2818mm
|
|
Speed
|
10km/h
|
12km/H
|
16.5km/h
|
|
Weight
|
1100 kg
|
1860kg
|
2300kg
|
|
Standard Tire
|
23X8.5-12
|
26X12-12
|
31X15.5-15
|
