Super austenitic stainless steel the chemical composition N08926 EN1.4529 steel pipe

Super austenitic stainless steel the chemical composition N08926 EN1.4529 steel pipe

FOB Reference Price: Get Latest Price

≥1 Pieces

US $4000

≥10000 Pieces

US $2000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Certification:: IBR

Product name:: good price super duplex stainless steel pipe

Surface:: NO.1, NO.4, 2B, BA, HL, 8K, Mirror finish,etc

Technique:: Cold and hot rolled, acid pickling, polished

Sample:: We can provide free sample with good quality

Payment Term:: T/T,L/C

Delivery time:: 3-15 days after receiving deposit

MOQ:: 1 Metric Ton

Grade:: N08926

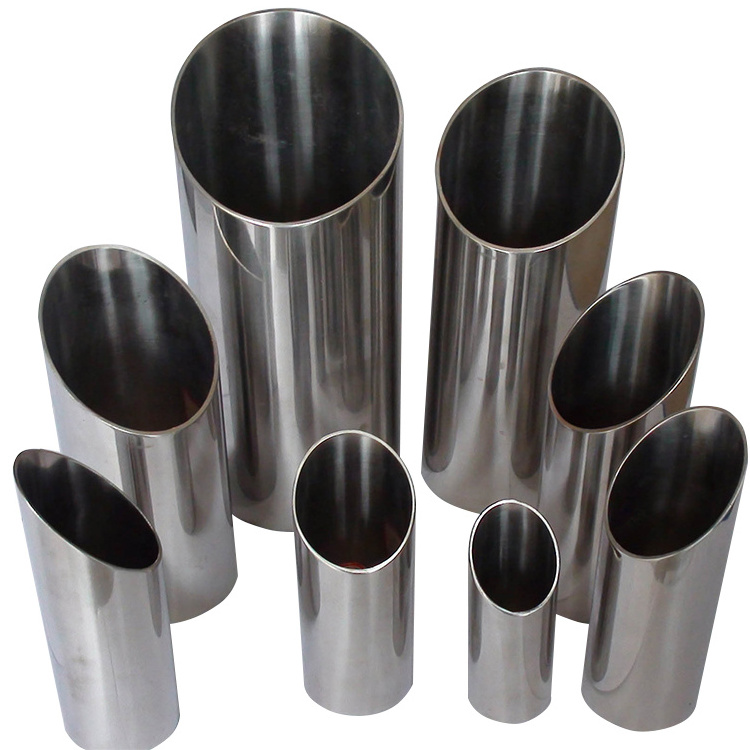

Shape:: round pipe tube

Out diameter:: from 6mm to 800mm.

Quick Details

Type:: Seamless

Steel Grade:: n08926

Place of Origin:: Shanghai, China

Certification:: IBR

Product name:: good price super duplex stainless steel pipe

Surface:: NO.1, NO.4, 2B, BA, HL, 8K, Mirror finish,etc

Technique:: Cold and hot rolled, acid pickling, polished

Sample:: We can provide free sample with good quality

Payment Term:: T/T,L/C

Delivery time:: 3-15 days after receiving deposit

MOQ:: 1 Metric Ton

Grade:: N08926

Shape:: round pipe tube

Out diameter:: from 6mm to 800mm.

Product Description

Introduction

INCOLOY alloys belong to the category of super-austenitic stainless steel alloys. Nickel, chromium and iron are the principal constituents of this alloy. By adding different additives this alloy can be made to resist different chemical reagents. Good strength and resistance to corrosion are characteristics of these alloys.

Additives such as molybdenum and nitrogen are added to the alloy in order to increase its resistance to pitting, crevice corrosion and thermal stability. The nickel and chromium content extend the corrosion resistance of this alloy over a wide range of environments like non-oxidizing acids, aqueous, caustic chlorides, halides and pulp-mill bleaches. This alloy is available in the form of bars, billets, sheets, round, plate, strips and wire.

This datasheet will look into the chemical composition, properties and applications of INCOLOY 25-6MO.

Chemical Composition

The chemical composition of INCOLOY alloy 25-6MO is given in the following table.

Element	Content (%)
Iron, Fe	47.3
Nickel, Ni	24-26
Chromium, Cr	19-21
Molybdenum, Mo	6-7
Manganese, Mn	≤2
Others	Remainder

Physical Properties

The following table discusses the physical properties of INCOLOY alloy 25-6MO.

Properties	Metric	Imperial
Density	8.03 gm/cm3	0.290 lb/in3

Mechanical Properties

The mechanical properties of INCOLOY alloy 25-6MO are tabulated below.

Properties	Metric	Imperial
Tensile strength(annealed)	689 MPa	100 ksi
Yield strength(annealed)	331 MPa	48 ksi
Elongation at Break( in 2 in 50 mm)	≥42%	≥42%
Hardness, Rockwell B	86	86
Modulus of Elasticity	188 GPa	27300 ksi
Poissons Ratio	0.33	0.33

Other Designations

Some of the designations used to denote INCOLOY alloy 25-6MO are listed below:-

UNS N08926

Fabrication

Machinability

Machining characteristics of this INCOLOY alloy 25-6MO is similar to that of other austenitic alloys.

Machining of INCOLOY alloy 25-6MO should be done at a slightly lower speed when compared stainless steel using rigid tooling and optimum lubrication and cooling.

Welding

INCOLOY alloy 25-6MO can be welded by gas metal arc welding, gas tungsten arc welding, shielded arc welding, plasma arc welding and submerged metal arc welding. The filler metal and electrodes are usually made of INCONEL alloy.

Hot working

INCOLOY alloy 25-6MO can be hot worked at temperature ranges of 980-1150°C (1800-2100°F).

Cold Working

Cold rolling may be done on the alloy after annealing.

Annealing

INCOLOY alloy 25-6MO should be annealed at temperatures greater than 1175°C (2150°F).

Applications

The INCOLOY alloy 25-6MO is used in the following applications:

Chemical and food processing
Paper bleaching plants
Marine and offshore platform equipment
Air pollution control systems
Salt plant evaporators
Condenser tubes, service water pipes and feed water heaters.

Stock

Form	Specification	Supply Form	Others
Sheet	Thickness:0.40-4.75mm,General Width:1000,1219,1500mm	Whole Coil or piece of it	Cold Annealed,Surface 2B,2E
Plate	Thickness:4.76-60mm,Width:1500,2000,2500mm,Length:3000,6000,8000,8500mm(Under 10mm plate can be coiled)	Whole Coil or piece of it	Single hot rolling,Solid solution annealed state,Surface 1D
Belt	Thickness:0.10-3.0mm,Width:50-500mm	Whole Coil or Specified size	Cold Annealed,Surface 2B,2E
Bar & Rod	Rolled barΦ5-45mm,Length≤1500mm	Polished Bar(circle,Square)	Solution annealing,descaling
Bar & Rod	Forged barΦ26-245mm,Length≤4000mm	Polished Bar(circle,Square)	Solution annealing,descaling
Weld tube	Outer diameterΦ4.76-135mm,Wall Thickness0.25-4.00mm,Length:≤35000 mm	Base on your requirement	Use for PHE
Seamless Tube	Outer diameterΦ3-114mm,Wall Thickness0.2-4.5mm	Base on your requirement	Use for PHE
Wire	Outer diameterΦ0.1-13mm	Base on your requirement	Ni & Ni alloy, Ti & Ti alloy
Forged piece	roundness and square alloy	Base on your requirement	Steel, Alloy
Flangs	All kinds of Flangs	Base on your requirement	Steel, Alloy
Welding Material	Coil wire Φ0.90mm/1.2mm/1.6mm	Base on your requirement	Certificate of Origin:America, Sweden, Britain, Germany, Austria, Italy, France.
	Straight WireΦ1.2mm/1.6mm/2.4mm/3.2mm/4.0mm
	Welding rodΦ2.4mm/3.2mm/4.0mm
Tube	Elbow, three links, four links, different diameter size	Base on your requirement	Ni & Ni alloy, Ti & Ti alloy
Explosive bonded laminate	Raw Sheet Thickness≥2mm	Base on your requirement	Ni & Ni alloy, Ti & Ti alloy
