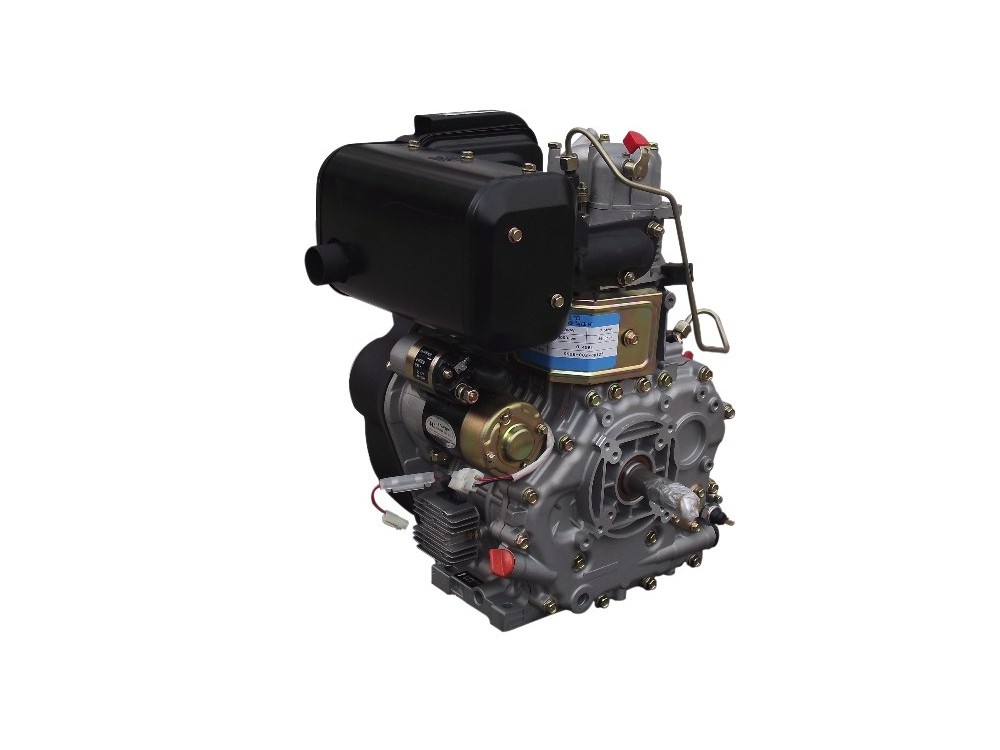

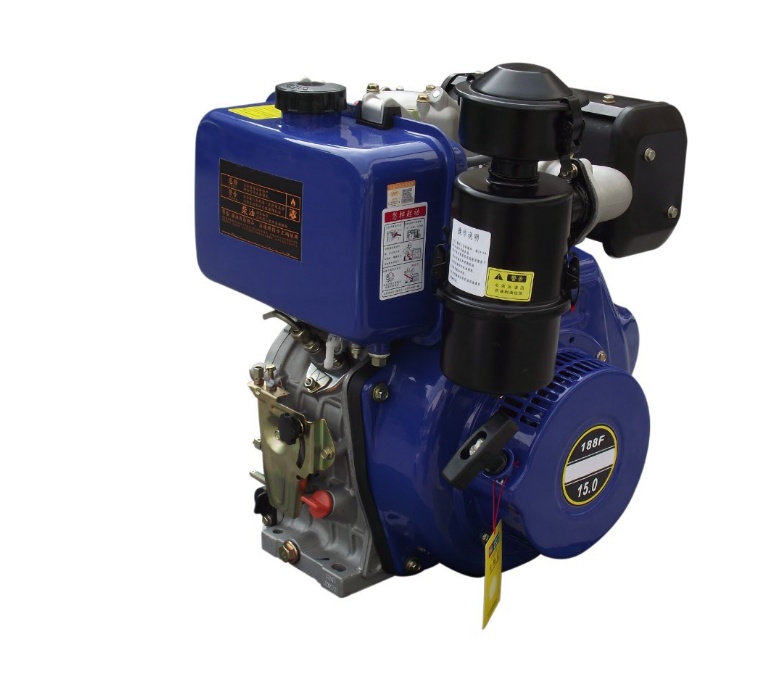

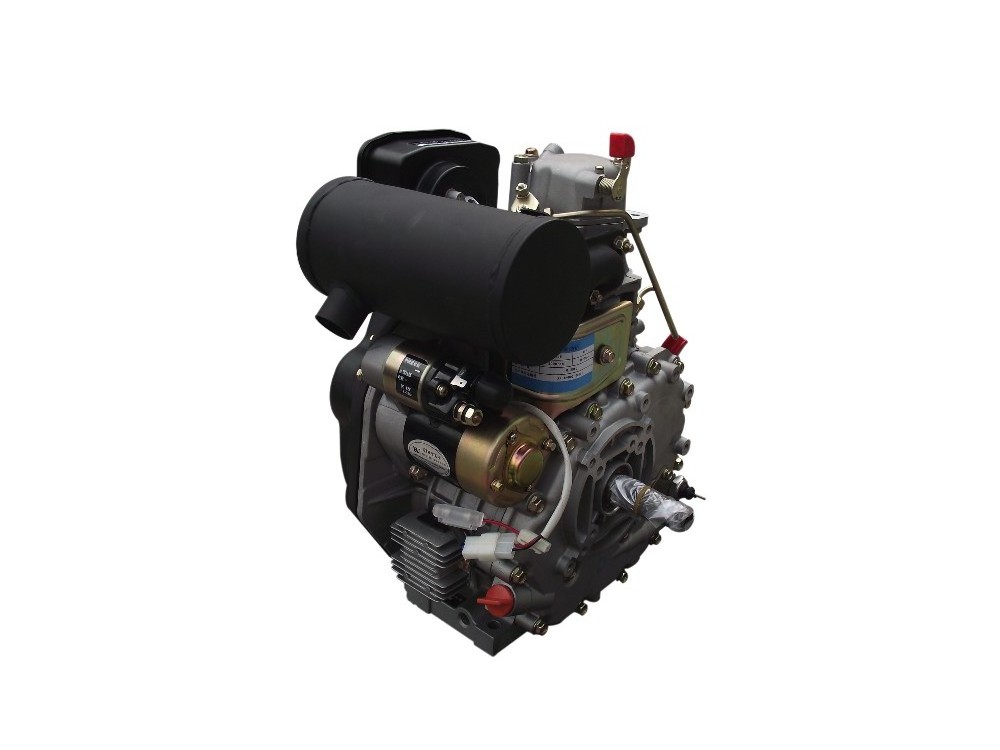

8HP 11HP 13HP Single cylinder Water cooled General Diesel Engine
8HP 11HP 13HP Single cylinder Water cooled General Diesel Engine
8HP 11HP 13HP Single cylinder Water cooled General Diesel Engine
8HP 11HP 13HP Single cylinder Water cooled General Diesel Engine
8HP 11HP 13HP Single cylinder Water cooled General Diesel Engine
8HP 11HP 13HP Single cylinder Water cooled General Diesel Engine
8HP 11HP 13HP Single cylinder Water cooled General Diesel Engine
8HP 11HP 13HP Single cylinder Water cooled General Diesel Engine

8HP 11HP 13HP Single cylinder Water cooled General Diesel Engine

FOB Reference Price: Get Latest Price
≥5 Cartons
US $283
≥200 Cartons
US $234
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Certification:
CE EPA
Item:
General Diesel Engine
Speed:
3600Rpm
Starting system:
Recoil/Electric
Color:
Request
Engine type:
Single cylinder vertical,four stroke air-cooled
Ignition System:
Splash lubrication pressure ignition
CF178E:
8HP
CF186E:
11HP
CF188E:
13HP

Quick Details

Place of Origin:
China
Brand Name:
HUITIAN
Warranty:
1 Year
Certification:
CE EPA
Item:
General Diesel Engine
Speed:
3600Rpm
Starting system:
Recoil/Electric
Color:
Request
Engine type:
Single cylinder vertical,four stroke air-cooled
Ignition System:
Splash lubrication pressure ignition
CF178E:
8HP
CF186E:
11HP
CF188E:
13HP
Product Description
TYPE
CF178E
CF186E
CF188E
RATED WATTS
3.7KW
6.5KW
7.8KW
SURGE WATTS
4.0KW
7.0KW
8.8KW
ENGINE MODEL
178F
186F
188F
BORE*STROKE
78*64 (MM)
86*70 (MM)
88*75 (MM)
COMPRESS RATIO
23:1
19:1
19:1
FUEL TANK CAPACITY
12L
5.5L
5.5L
OIL CAPACITY
1.1L
1.65L
1.65L
N.W/G.W
38/45 KG
48/51 KG
50/55 KG
PACKAGE DIMENSION
48.5*42*52 (CM)
52*52*56.5(cm)
52*52*56.5
HORSE POWER
8HP
11HP
13HP
40HQ FT.CONT.LOAD
435
415
415
Detailed Images
Packing & Delivery

Packaging Details:Color carton box Safe Exported Package for Huitian design for 8kw gasoline generator set

Our Company

Chongqing Huitian Machinery Manufacturing Co., Ltd., located at the Taojia Industry Area, Jiulongpo District, Chongqing, is an integrative company specializing in manufacturing, designing and selling mini power tillers, gasoline generator,diesel generator,engine ,water pump ,welder and so on.

Founded in 1994, and started playing a role in agricultural machinery manufacturing in 2000, our company has rapidly developed into a specialized enterprise operating a workshop of nearly 30,000 square meters, which is equipped with advanced testing machines and 11 assembly lines. We have more than 30 engineers and 50 articles of advanced processing equipment, including punching machines, hydraulic machines, grinding machines and cutting machines. Owing to our efforts, HUITIAN brand products enjoy a high reputation in both domestic and overseas markets.

FAQ

1. Q: Are you factory or trading company?

A: We are factory. We have 20 years manufacturing experience.

2. Q: Where is your factory located? How can I visit there?

A: Our factory is located in Chongqing(southwest of China). You can fly to      Chongqing jiangbei Airport. We are warmly welcome your kind visit!

3. Q: Can I get some sample?

A: We are honored to offer you samples.

4. Q: What about the payment terms?

A:  Usually, we accept T/T or L/C. 30% deposit first, 70% balance against the copy of  B/L.Or you can adopt Escrow by alibaba so that you will have a guarantee for payment if we do not send goods.

5. Q: What is the lead time?

A: As usually, 25-35 days after receiving TT deposit or L/C. But we will finish order with shorter time for your urgent need.

6. Q:What is your MOQ  of this item?

A: Sample order is acceptable.

Welcome to join us as our sales agent in your market.

7. How about your quality control of your company?

We pay great attention on quality control from the beginning to the end,keeping goods to meet the standard of CE,ISO9001:2000.

8. Is it all right to make the customer brand name?

Yes,OEM is welcome if the quality is above the MOQ.

9. Q: What about the warranty?

A: 1 years warranty for whole products, except e-damage parts.
