Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TBS
-
Model Number:
-
TBS6903
-
TV Signal:
-
DVB-S2/S
-
Frequency range::
-
950~2150 MHz
-
Tuner:
-
Twin Tuner
-
Support:
-
CCM ACM VCM and Multi Input Stream
-
support:
-
Multi Input Stream
-
Mode:
-
Generic stream mode
-
Msymb/s:
-
16APSK 32APSK
-
Interface::
-
PCI Express
-
Application::
-
IPTV streaming
-
Software::
-
DVBdream, DVBlast
Quick Details
-
FTA(Free To Air):
-
Yes
-
Type:
-
Digital
-
High Definition:
-
Yes
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TBS
-
Model Number:
-
TBS6903
-
TV Signal:
-
DVB-S2/S
-
Frequency range::
-
950~2150 MHz
-
Tuner:
-
Twin Tuner
-
Support:
-
CCM ACM VCM and Multi Input Stream
-
support:
-
Multi Input Stream
-
Mode:
-
Generic stream mode
-
Msymb/s:
-
16APSK 32APSK
-
Interface::
-
PCI Express
-
Application::
-
IPTV streaming
-
Software::
-
DVBdream, DVBlast
Product Description

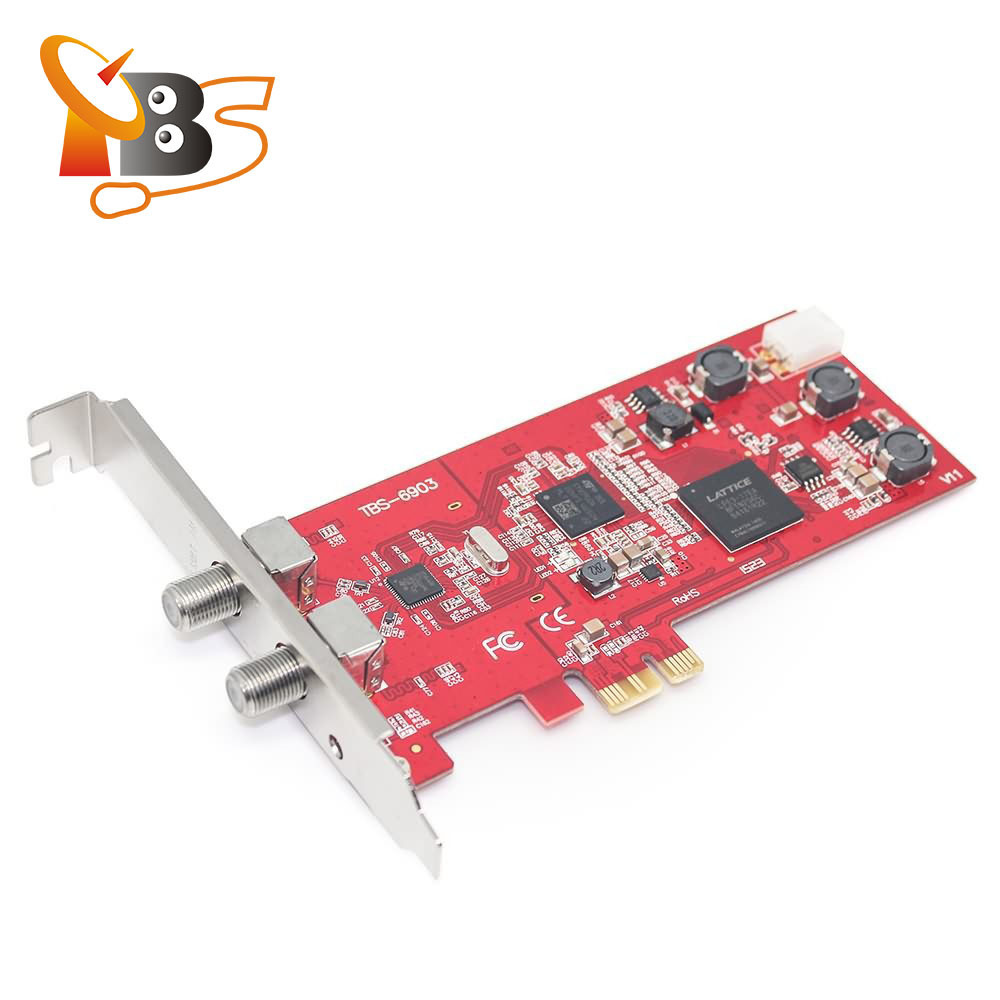

TBS6903 Professional DVB-S2 Dual Tuner PCIe Card supports CCM ACM VCM Multi Input Stream 16APSK 32APSK
TBS6903 is a Professional level digital satellite TV Tuner card with PCI Express interface. TBS6903 supports not only normal DVB-S2/DVB-S QPSK, 8PSK which is supported by normal satellite receivers, but also CCM, ACM, VCM, 16APSK, 32APSK, Multiple Transport Stream, Multiple Generic Stream, Combined Single Generic &Single TS, which most satellite receiving devices can’t support. With use of dedicated TBS tools, those special streams can be captured. The two advanced DVB-S2/S tuners enable you to watch TV channel from one satellite transponder, while recording channels from different satellite transponders from another tuner at the same time.
Main Feature:
DVB-S2/S dual tuner
Watch & record satellite TV/ radio programs on PC
CCM, VCM, ACM and Multi Input Stream support
Generic stream mode Support
Blind scan support
EPG (Electronic Program Guide) support
Unicable/one cable compatible
High-speed data download via satellite
DVB-S2/S dual tuner
Watch & record satellite TV/ radio programs on PC
CCM, VCM, ACM and Multi Input Stream support
Generic stream mode Support
Blind scan support
EPG (Electronic Program Guide) support
Unicable/one cable compatible
High-speed data download via satellite
Multicast H DMI Encoder H.264 H.265 IPTV Encoder, IP Video Encoder IPTV
16 channel UDP Multicast H DMI Encoder H.264 H.265 IPTV Encoder, IP Video Encoder IPTV
|
Frequency range:
|
950~2150 MHz
|
|
Supports:
|
DVB-S2/S 8PSK QPSK 16APSK 32APSK ACM/VCM
|
|
Symbol rate:
|
8PSK QPSK 16APSK 32APSK
|
|
DVB-S QPSK:
|
1/2,2/3,3/4,5/6,7/8
|
|
Input level:
|
-69~-23dBm
|
|
Support:
|
Data Burst & Tone Burst
|
|
Support:
|
DiSEqC2.X and Motor
|
|
System:
|
Windows XP / Vista/ 7/8/10, Linux
|
|
PCI Express:
|
x1, x4, x8 or x16 slot
|
|
Driver
|
Windows Driver and Opened Linux Driver
|
Detailed Images
Packing & Delivery
Dimension: 18cm*16cm*4cm/unit
Net weight: 0.5kg/unit
Carton: 20 units/carton
Carton: 35cm*34cm*22cm
Gross Weight: 7kg
temperature -20℃+ 60℃
Our Company
TBS Technologies International Ltd
TBS Technologies is one of the leading providers for cost-efficient IPTV headend solutions, a company which specializes in developing, producing and marketing of IPTV streamers, HDMI encoding device and digital TV tuner cards for PCs. We are committed to providing customers with high quality products. With years of unremitting efforts, TBS has become one of the worldwide leaders in production of IPTV headend provider.
Our main products include IPTV streaming server, professional HDMI encoder , PCIe DVB-S2 TV Octa/Quad tuner devices, PCIe DVB-S2 Dual TV tuner cards, PCIe DVB-S2 TV tuner CI receivers, USB DVB-S2 TV tuners CI box, USB DVB-S2 TV Box with blind scan, DVB-C TV tuner USB boxes, DVB-C digital Cable TV CI box and so on.
TBS has an excellent R & D team with many years experience in providing a high degree of technology integration and development capabilities. We persist in seeking a breakthrough in technique and strive to provide wider space for designing and developing new products for our customers.
