Quick Details
-
Warranty:
-
2
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Dailymag
-
Model Number:
-
ST Linear Actuator
-
Torque:
-
Customized
-
Certification:
-
CE, CE
-
Voltage:
-
12V 24V
-
Max. Thrust:
-
100-1500N
-
Max. Speed:
-
5-30mm/s
-
Stroke Range:
-
50-600mm(2"-24")
-
Min. Install Dimension:
-
S+105mm(option)
-
Noise Level:
-
Low Noise Design,dB<48A
-
Ambient Temp:
-
-5°C(23F) to +40°C(104F)
-
Application:
-
Dentist Chair,Pet Hospital,etc
Quick Details
-
Speed(RPM):
-
3000rpm
-
Continuous Current(A):
-
Current
-
Efficiency:
-
Other
-
Warranty:
-
2
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Dailymag
-
Model Number:
-
ST Linear Actuator
-
Torque:
-
Customized
-
Certification:
-
CE, CE
-
Voltage:
-
12V 24V
-
Max. Thrust:
-
100-1500N
-
Max. Speed:
-
5-30mm/s
-
Stroke Range:
-
50-600mm(2"-24")
-
Min. Install Dimension:
-
S+105mm(option)
-
Noise Level:
-
Low Noise Design,dB<48A
-
Ambient Temp:
-
-5°C(23F) to +40°C(104F)
-
Application:
-
Dentist Chair,Pet Hospital,etc

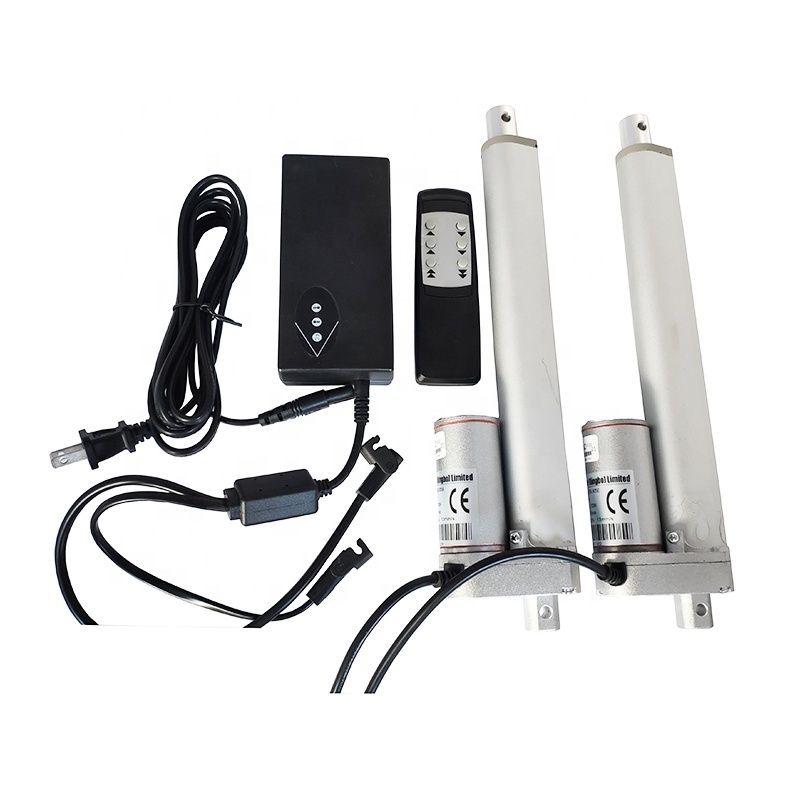

S T Series Electric Linear Actuators ( Electric Linear Actuator) are all-purpose products. They have smart design and excellent performance. They are widely used in furniture, home beds, office tables, massage equipment, sporting equipments and so on.
| ST series Linear actuator | |||||
| Specification | |||||
| Model | ST 750 | ||||
| Voltage | 24VDC or 12VDC | ||||
| Standard Stroke: |
Stroke Length:
50mm/2 inch 100mm/4 inch 150mm/6 inch 200mm/8 inch 250mm/10 inch 300mm/12 inch |
||||
| Max Thrust: | 750N 1500N OR Customized | ||||
| Free Load Speed: | 5mm/s~30mm/s | ||||
| Rated Load Speed: | 5mm/s | ||||
| Duty Cycle | 10% 2 mins continuous Max | ||||
| Ambient Temperature | -26℃(-14.8F)~+65℃(149F) | ||||
| Protection Class | IP56 | ||||
| Color | Black, Grey and White | ||||
| Build in Limited Switch: | not adjustable after leaving factory | ||||
| Low noise design: | dB<50(A); The inspection method is in accordance with DS/EN ISO03746 while linear actuator is unloaded. | ||||
| Certificate | CE | ||||
| Optional function: | Reed Switch/Hall Sensor/Push only/Quick Release | ||||
