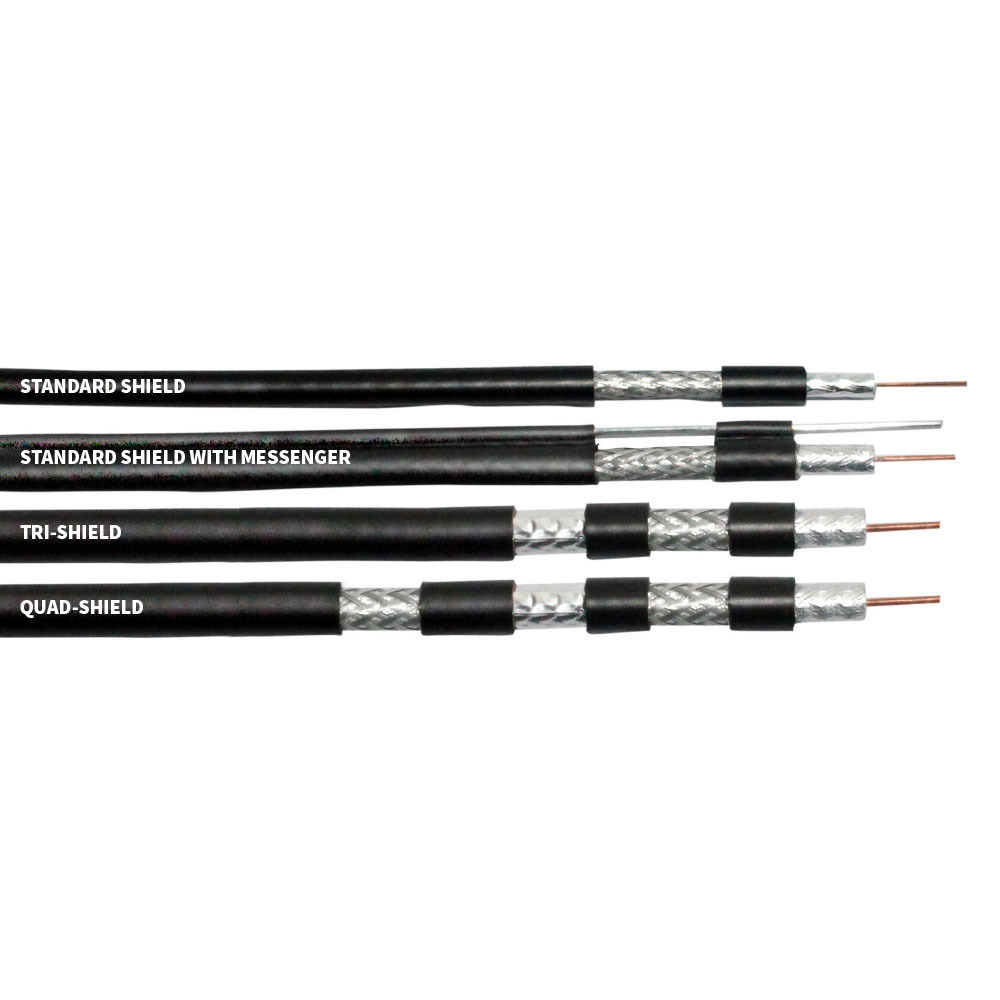

RF Quad Shield Coaxial Cable RG6 75Ohm Coaxial Cable for Distribution Network

RF Quad Shield Coaxial Cable RG6 75Ohm Coaxial Cable for Distribution Network

FOB Reference Price: Get Latest Price

≥10 Rolls

US $25

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Cable type:: RG6

Center conductor:: 2.77±0.01mm Solid Copper/Copper Aluminum

Dielectric:: 11.43±0.05mm foam PE

RG6 75Ohm Coaxial Cable Jacket:: 14.22+0.05mm PVC / PE

Jelly/ADP:: Per Customer' Special Requirement

Impedance:: 75+2Ohm

Capacitance:: 50+3nF/km, 15.3+1pF/ft

Velocity of Propagation:: 88%

impedance:: 75Ohm Coaxial Cable

Quick Details

Brand Name:: Softel OEM

Model Number:: RG66TM

Place of Origin:: Zhejiang, China

Cable type:: RG6

Center conductor:: 2.77±0.01mm Solid Copper/Copper Aluminum

Dielectric:: 11.43±0.05mm foam PE

RG6 75Ohm Coaxial Cable Jacket:: 14.22+0.05mm PVC / PE

Jelly/ADP:: Per Customer' Special Requirement

Impedance:: 75+2Ohm

Capacitance:: 50+3nF/km, 15.3+1pF/ft

Velocity of Propagation:: 88%

impedance:: 75Ohm Coaxial Cable

RG6 RF Quad Shield Coaxial Cable RG6 75Ohm Coaxial Cable for Distribution Network

Characteristics

Min. bending radius: 8.9mm(jacketed)
Max. pulling tension: 68kgf
Min. thickness strength
Of messenger: 816kgf
Impedance: 75 + 2Ohm
Capacitance: 50 + 3nF/km, 15.3 + 1pF/ft
Velocity of Propagation: 88%

Nominal D.C. resistance @20°C

Copper clad:
Inner conductor 4.43ohms/km
Outer conductor 1.21ohms/km
Loop 5.64ohms/km

Attenuation

[@68 ^o F. (20 ^o C.)]
Frequency (MHz)	Maximum (dB/100 ft.)	Maximum (dB/100 m)
5	0.16	0.52
50	0.50	1.64
108	0.73	2.39
150	0.86	2.82
193	1.01	3.31
250	1.15	3.77
300	1.25	4.13
350	1.36	4.46
400	1.47	4.82
450	1.56	5.12
500	1.65	5.41
550	1.75	5.74
600	1.83	6.00
750	2.04	6.69
1000	2.41	7.91

Purchase Notice:
1. Please select the material of inner conductor :BC or CCS
2. Please select the material of jacket:PVC,PVC with RoHs,PE or LSZH.
3. Please select the packing:reel with carton or wooden spool with carton.
4. Please show us your own specification if it’s not the same as ours.
5. Please inform us if you have any other requirement.
