Quick Details
-
Voltage:
-
220/380/400/415V
-
No Load Speed:
-
0.25m/s
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Target
-
Model Number:
-
TG-60A
-
Warranty:
-
2 years, 2 Years
-
Certification:
-
ce
-
Product name:
-
mobile paint booth/spray booth/car painting oven
-
Usage:
-
Car Painting Baking
-
Heating System:
-
RIELLO Brand Diesel Burner
-
Fans kind:
-
Centrifugal Fans CE
-
Color:
-
Client's Requirements
Quick Details
-
Power:
-
12KW
-
External Size:
-
7050*4050*3300
-
Internal Size:
-
6900*3900*2600mm(L*W*H)
-
Voltage:
-
220/380/400/415V
-
No Load Speed:
-
0.25m/s
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Target
-
Model Number:
-
TG-60A
-
Warranty:
-
2 years, 2 Years
-
Certification:
-
ce
-
Product name:
-
mobile paint booth/spray booth/car painting oven
-
Usage:
-
Car Painting Baking
-
Heating System:
-
RIELLO Brand Diesel Burner
-
Fans kind:
-
Centrifugal Fans CE
-
Color:
-
Client's Requirements

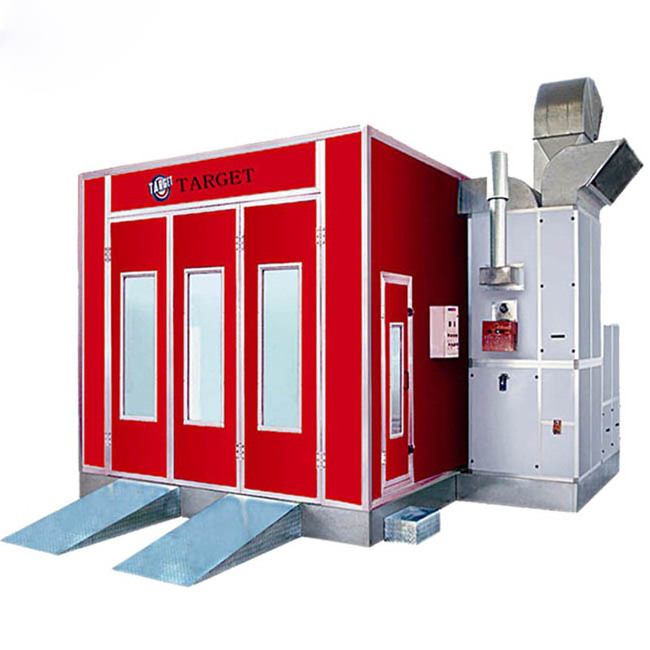

mobile paint booth/spray booth/car painting oven
Specification
|
Inside dimension |
6900*4000*2800 (LxWxH) |
Front door(mm) |
3000*2700 mm(W×H) |
||||
|
Outside dimension |
7000*5400*3450 (LxWxH) |
Total Power(Kw) |
12 Kw |
||||
|
Cabin System |
Wallboard |
EPS (epispastics polystyrene) colorful steel skin panel, EPS foam Density is 12kg/m³ , 50mm thick,steel 0.5mm thick,tongue & groove style,compound construction,Aluminum-alloy frame,anti-flame and heat-insulation, galvanized steel roof panel. |
|||||
|
Basement |
300mm depth ,Galvanized steel sheet and square steel pipe assembling, 2 rows of grid plates made by flat bar and round steel,3 rows of diamond plates , galvanized. 2 ramps, external setting, 750 x 2000 mm ( W * L )/pc |
||||||
|
Air Circulation System |
Intake Fan |
Blower Capacity: 20000m ³ /h |
Exhaust Fan |
Blower Capacity: 12500m ³ /h |
|||
|
Power: 3kw/pc |
Power: 4kw/pc |
||||||
|
Quantity: 2 pcs |
Quantity: 1 pc |
||||||
|
Model: Double-intake centrifugal fan |
Model: Double-intake centrifugal fan |
||||||
|
Air Volume: 20000m ³ /h , Air flow speed in the cabin:0.35m/s |
|||||||
|
Heating system |
Burner |
Italy Riello G20 Diesel Burner, 200000Kcal/h . SUS304 Stainless steel heat exchanger ,argon arc welding. |
|||||
|
Heat energy |
Max Temp:80.C , Heating Time: 4-5min(20-60°C), Fuel Consumption: 4-5kg/vehicle |
||||||
|
Filter system |
Dual-filtering structure |
Primary filter : Can Capture Granules Larger than 10μm |
|||||
|
Ceiling filter :600g high efficiency filter, can Capture Granules Bigger than 4μm |
|||||||
|
Floor filter: fiberglass filter,exhaust activated carbon filter, Filtering rate>95% |
|||||||
|
Lighting system |
Ceiling lights |
8Units×4Pcs=32Pcs×36W 900LUX ,with anti-explosion design . |
|||||
|
Side lights |
6Units×4Pcs=24Pcs×36W 900LUX ,with anti-explosion design . |
||||||
|
Control system |
Spraying, heat spraying, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop. All motors are full voltage start. |
||||||
|
Environmental System |
Multi-Layer Fiberglasses Filter, active-carbon, and ensure a qualified exhaust according to the relevant state standards |
||||||
Advantages
- 2 years warranty
- Effective filter system
- Original Italian RIELLO Burner,hot wind recycling system with SUS304 heat exchanger
- Multi-Layer Fiberglasses Filter and active-carbon ensure a qualified exhaust according to the relevant state standards
- 15 years experienced working team
- Customized service
- Life long technical support service
Successful Cases
Details
Parts
Trade Shows
Packaging&Shipping
Our Services
1. OEM ODM service.
2. Customized service: The color and size of the product can be customized.
3. Two Years Quality warrant service, during the period spare part supplied free if you pay for shipping.
4. Professional team supply service for life long time. Oversea service if need.
