Lianyungang Runlai Quartz Product Factory is a professional manufacture specialized in research and development of quartz plate,quartz tube,quartz flange,quartz ring,cuvette and quartz instrument. The company is located in China Crystal Capital -Donghai City, Jiangsu Prov., China. 70 km far from Lianyungang port, convenient transportation. Covering an area of 1000 square meters,we now have over 30 employees,an annual sales figure exceeding USD 5.2 million. With the philosophy of Technology Orientation, Quality First,Integrity and Responsibility,Sustainable Operation, the company dedicates to establish an international enterprise with standard and sustainable operation capability.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Runlai
-
Model Number:
-
Runlai0805
-
Material:
-
SIO2>99.99%
-
Color:
-
Clear Transparent
-
Working Temparature:
-
1150
-
Density:
-
2.2g/cm3
Quick Details
-
Type:
-
Clear Quartz Plate
-
Application:
-
Optical/Semi/Industry, Semiconductor, optical
-
Thickness:
-
0.5-100mm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Runlai
-
Model Number:
-
Runlai0805
-
Material:
-
SIO2>99.99%
-
Color:
-
Clear Transparent
-
Working Temparature:
-
1150
-
Density:
-
2.2g/cm3
Product details

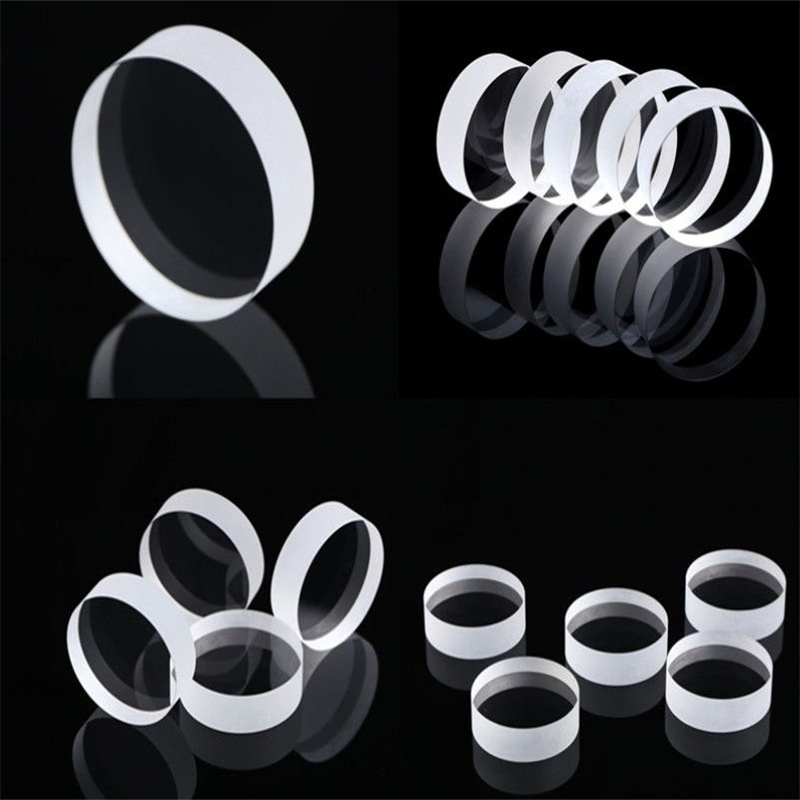

Product Description
|
*Brand
|
|
runlai quartz
|
|
|
|||
|
*SIO2
|
|
99.9%
|
|
|
|||
|
*Density
|
|
2.2(g/cm³）
|
|
|
|||
|
*Degree of hardness moh’ scale
|
|
6.6
|
|
|
|||
|
*Melting point
|
|
1732℃
|
|
|
|||
|
* Working temperature
|
|
1100℃
|
|
|
|||
|
*Annealing point
|
|
1180℃
|
|
|
|||
|
Color
|
Transparent
|
|
Shape
|
Circular / Round
|
|
Standard
|
JGS1,JGS2,JGS3
|
|
Material
|
99.99% sio2
|
|
Application
|
Optics quartz windows
|
|
Light Transmittance
|
>92%
|
|
|
JGS1
|
JGS2
|
JGS3
|
|
Spectral characteristics
|
180-2500nm
|
200-2500nm
|
260-3500nm
|
|
The average transmittance
|
90%
|
85%
|
85%
|
|
Bubble class
|
0
|
2
|
2
|
|
Grain structure
|
1
|
2
|
2
|
|
Fringe
|
1-2
|
2
|
2
|
|
Radiation Performance
|
Does not change clolor
|
Does not change clolor
|
Change color
|
Products range:
1.Quartz tube:outer diameter Φ2-450mm,thickness 0.5-20mm
2.Quartz rod （1.5-80mm）
3.Quartz plate (various shapes and specification,scrubs,Transparency,drilling)
4.Quartz instruments (flask,test tube,beaker, quartz boat)
5.Processing all type of
special shaped and customized instruments.
