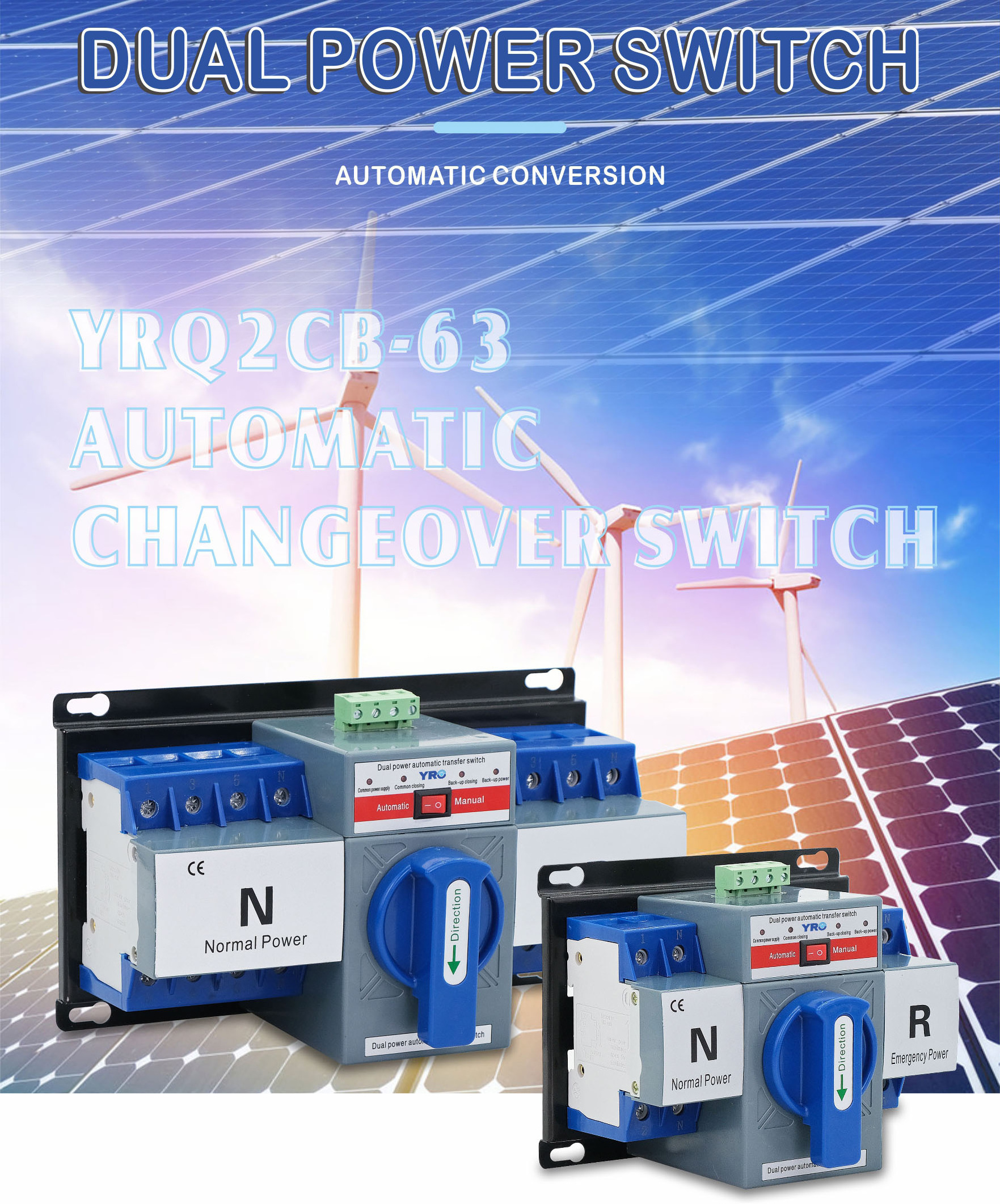

YRQ2CB-63 series automatic transfer switch is designed and developed by our company according to universal customers' requirements.
This switch uses YRCB-63(C45=CB2) miniature circuit breaker as the actating element, is equipped with the new type
control mechanism.
With the smallest volume among the similar products, it also has the functions like the fire control(OPINIONAL) and power generation, and it
is specially used in the important power supply locations where the power failure is not allowed.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
YRO
-
Model Number:
-
YRQ2CB-63
-
Rated Current:
-
63
-
Product Name:
-
ATS transfer switch
-
Pole:
-
2P/3P/4P
-
Frequency:
-
50/60Hz
-
Rated current:
-
63A/125A
-
Warranty:
-
1 Year
-
Whether the smart:
-
Yes
-
Max. Voltage:
-
230V
-
Certification:
-
CE ISO
-
Color:
-
Blue
-
Keywords:
-
Dual power ATS
Quick Details
-
Type:
-
CB
-
Number of Pole:
-
2
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
YRO
-
Model Number:
-
YRQ2CB-63
-
Rated Current:
-
63
-
Product Name:
-
ATS transfer switch
-
Pole:
-
2P/3P/4P
-
Frequency:
-
50/60Hz
-
Rated current:
-
63A/125A
-
Warranty:
-
1 Year
-
Whether the smart:
-
Yes
-
Max. Voltage:
-
230V
-
Certification:
-
CE ISO
-
Color:
-
Blue
-
Keywords:
-
Dual power ATS
Product Description
Specification
|
Type
|
YRQ2CB-63
|
|
Specification current Ie(A)
|
6/10/16/20/25/32/40/50/63
|
|
Rated operating voltage, Ue (V)
|
AC230V/AC400V
|
|
Rated insulating voltage Ui (V)
|
AC 690V
|
|
Rated impulse withstand voltage (KV)
|
4KV
|
|
Rated short circuit making capacity Icm
|
6KA
|
|
Rated short circuit breaking capacity Icn
|
4.5KA
|
|
Service life
|
5000 times
|
|
Electric equipment grade
|
CB Class
|
|
Controller
|
Type A(basic type)
|
|
Rated control supply voltage,Us(V)
|
230V 50/60Hz
|
|
Operating transfer time (no time delay)
|
≤3s
|
|
keyword
|
AC ATS automatic transfer switch
|
