Quick Details
-
Name:
-
Interactive IPS LCD Touch Screen Electronic Signature Pad
-
Key Feature 1:
-
Battery-Free Electromagnetic Resonance
-
Key Feature 2:
-
8192 levels pressure sensitivity
-
Key Feature 3:
-
Dual Touch Bar
-
Contrast Ratio(Typical):
-
1000:1
-
Pen Resolution:
-
5080LPI
-
Tilt:
-
±60°
-
Video Interface:
-
DP,VGA
-
Press Keys:
-
16 Customized Press Keys
-
Keyword:
-
interactive IPS lcd touch screen
Quick Details
-
Type:
-
IPS
-
Brand Name:
-
HUION
-
Place of Origin:
-
Guangdong, China
-
Name:
-
Interactive IPS LCD Touch Screen Electronic Signature Pad
-
Key Feature 1:
-
Battery-Free Electromagnetic Resonance
-
Key Feature 2:
-
8192 levels pressure sensitivity
-
Key Feature 3:
-
Dual Touch Bar
-
Contrast Ratio(Typical):
-
1000:1
-
Pen Resolution:
-
5080LPI
-
Tilt:
-
±60°
-
Video Interface:
-
DP,VGA
-
Press Keys:
-
16 Customized Press Keys
-
Keyword:
-
interactive IPS lcd touch screen
Welcome to HUION
OEM& ODM services are available

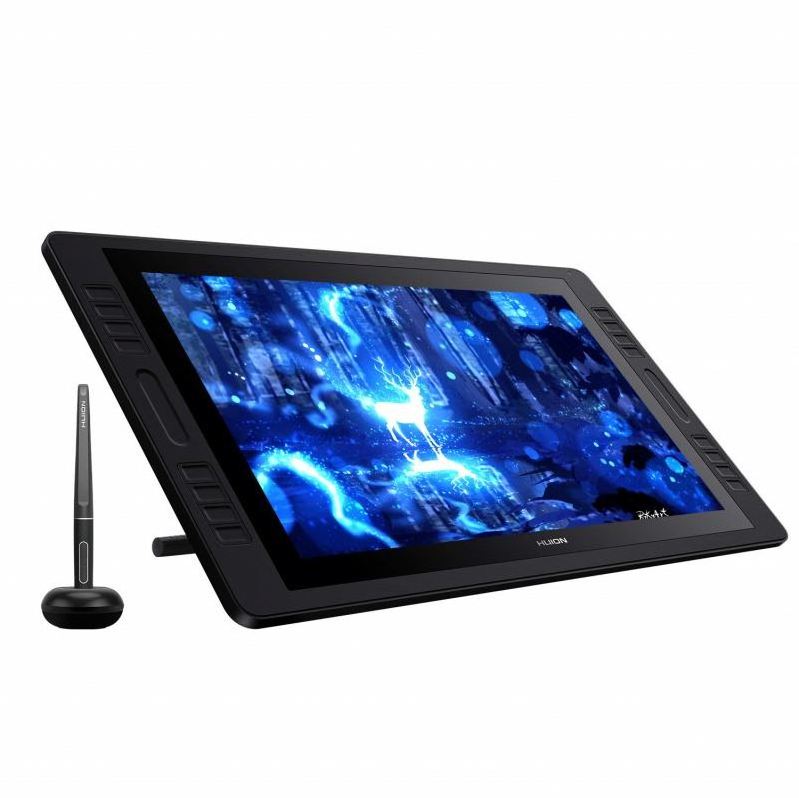

Interactive IPS LCD Touch Screen Electronic Signature Pad Pen Digital Drawing
1. Certificates: ISO 9001, ISO 14001, ROHS, Sedex, CE, FCC, KCC (For Korea), PSE (For Japan), BIS (For India), BSMI, etc.
2. Pattents: More than 100 international patents inlucding Design Patent, Utility Patent and so on.
3. Brand: HUION brand and Logo have been registered in most counries and area such as EU, US, Korea, Japan, India and so on.
Detailed Descriptions:
Click here for more Kamvas graphic pen displays:
Specifications:
|
Panel Size |
19.53inch |
|
Resolution |
1920 x 1080(16:9) |
|
Active Area |
434.88 x 238.68mm |
|
Contrast Ratio(Typical) |
1000:1 |
|
Brightness |
250cd/m2 |
|
Response Time |
25ms |
|
Gamut |
120% sRGB(92% Adobe RGB) |
|
Pen Resolution |
5080LPI |
|
Pressure Level |
8192Levels |
|
Sensing Height |
10mm |
|
Report Rate |
266PPS |
|
Tilt |
±60° |
|
Finger Touch |
Dual Touch Bar |
|
Press Keys |
16 Customized Press Keys |
|
Dimension |
552.2 x 315.3 x 21mm(Without Stand) |
|
Colour |
Black |
|
Adjustable Stand |
20°~80° |
1.Gorgeous colors display
The 120% sRGB wide color gamut can present 16.7 million colors vividly, with the help of full-lamination screen, the parallex is close to none, the brightness is lit up and the colors will be breath taking.
2. Amazing pen performance
Kamvas Pro 20 (2019) comes with a PW500 digital pen which features battery-free and 8192 levels of pen pressure. Precise as you like it and no worry about charging.
The 266 PPS report rate will help to improve your workflow for which you can have an unparalleled cursor tracking effect, enjoying lines without broken and delay.
3. Tilt support
Using the advanced pen tilt technology, the pen can support ±60 degrees tilt recognition which can imitate the brush tilting effect correctly and ensure the accuracy of each movement you make on the screen.
4. More care for your eyes
Adopting the pioneering chemically etched anti-glare glass, the glare reflection on the Kamvas Pro 20 (2019) screen can be effectively reduced, alleviating the visual fatigue of designers and providing more cares for their eyes.
5. Available for right-handed and left-handed users
You can easily access your personalized settings via the 16 customized express keys(with 16 kinds of functions separately) and 2 touch bars, you can set them up to your preference shortcuts. Suitable for both left-hand and right-hand users, no need to flip the screen any more.
6. Compatibility
The supported operating systems of this device are as follow: Windows 7 or later, macOS 10.12 or later.
Payment and warranty:
1. We can accept T/T,Pay Later,VISA,Online Bank Payment and Western Union and Money order,the best ways is direct online payment. If you want other payment terms please let us know before you place the order.
2. The shipping and handling charge is not refundable,customer should be responsible for all the charges of returning and reshipping.The buyer will be responsible for the shipping fees to return the Items.
3. Huion provides one year warranty on this product and its accessories, and the customers can enjoy free exchange in the first month if any non-manmade problem exists.
