Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
WORLD
-
Dimension(L*W*H):
-
4960X3514X2830MM
-
Weight:
-
3600 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
agricultural machine and farm equipment rice wheat combine harvester
-
Engine:
-
YUCHAI
-
Engine Type:
-
Direct injection
-
Fuel consumption:
-
22L/hectare
-
Fuel tank(L):
-
100L
-
Cutting width:
-
2360mm
-
Feeding capacity:
-
6.0 kg / second
-
Threshing type:
-
Axial flow type with Beat Bars
Quick Details
-
Number of Rows:
-
0
-
Working Width(mm):
-
2360 mm
-
Tractor Power(HP):
-
0 - 0.1 HP
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
WORLD
-
Dimension(L*W*H):
-
4960X3514X2830MM
-
Weight:
-
3600 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
agricultural machine and farm equipment rice wheat combine harvester
-
Engine:
-
YUCHAI
-
Engine Type:
-
Direct injection
-
Fuel consumption:
-
22L/hectare
-
Fuel tank(L):
-
100L
-
Cutting width:
-
2360mm
-
Feeding capacity:
-
6.0 kg / second
-
Threshing type:
-
Axial flow type with Beat Bars

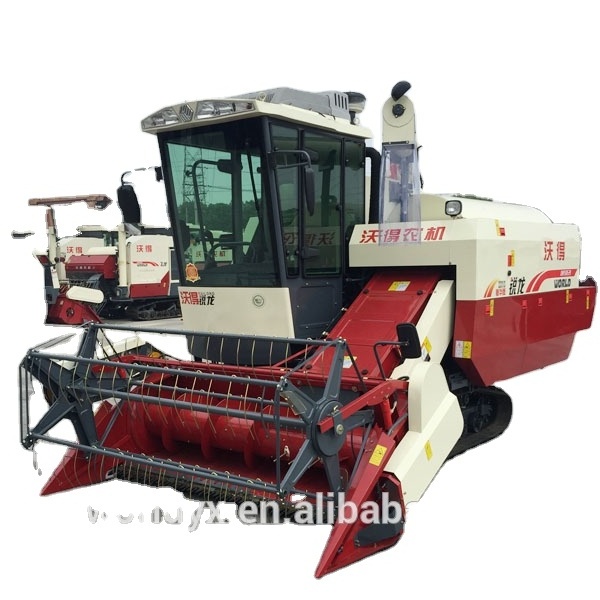

agricultural machine and farm equipment rice wheat combine harvester
Main Detail Specifications
|
Feeding Capacity (kg/s) |
4 |
||
|
Work Dimension L*W*H (mm) |
4900*2890*2700 |
||
|
Weight (kg) |
2900 |
||
|
Cabin/Sun shade |
Sun shade |
||
|
Engine Part |
Model No. |
Changchai 4L88 |
|
|
Power/Speed (hp/rpm) |
88/2700 |
||
|
Fuel |
Light Diesel Oil |
||
|
Fuel Capacity (L) |
130 |
||
|
Fuel Consumption(kg/hm2) |
12 ~ 30 |
||
|
Start |
Motor Starter |
||
|
Gear Box |
ZKB65 made by WORLD Factory. |
||
|
HST |
40CC HST Imported from south Korea. |
||
|
Walking Part |
Rubber Track |
Length of Ground Contact (mm) |
1700 |
|
Center Distance (mm) |
1160 |
||
|
Size(mm) |
450*90*51 |
||
|
Average Contact Pressure (kpa) |
≤20Kpa |
||
|
Min. Ground Clearance (mm) |
300 |
||
|
Gear Shifts |
Variable Sun-transmission 3 Shifts |
||
|
Walk Speed (Km/Hour) |
Low:0 ~ 1.85 Medium:0 ~ 6.5 High:0 ~ 9 |
||
|
Theoretical Work Speed (Km/Hour) |
0.9-6.5 |
||
|
Harvesting Unit |
Grain Lifter |
Divider |
|
|
Working Width (mm) |
2200 |
||
|
Reel Bat |
Dia. × Length (mm) |
900×2028 |
|
|
Gearshift Method |
Constant Speed |
||
|
Adjusting Means |
Hydraulic |
||
|
Stubble Height[Lift] (mm) |
25cm or above |
||
|
Threshing &Harvesting Unit |
Threshing Mode |
Axial Flow Type, Bullet Rotor |
|
|
Threshing Rotor |
Type of Threshing |
Beat Bar |
|
|
Dia. ×Length (mm) |
620*2050 |
||
|
Rotating Speed(rpm) |
662/732 |
||
|
Fan |
Diameter |
400 |
|
|
Separating Type |
Vibrating Sieves +Air Blow |
||
|
Area of Sieves (Lowe and Upper Sieves) (m 2 ) |
1.645 |
||
|
Grain-unload Unit |
Grain Tank Capacity (M3) |
1.4 |
|
|
Grain Discharging Type |
360 Degree Rotary Discharging Pipe |
||
|
Alarm Units |
Water Temperature, Battery, Oil, Grain Tank, Jam of 2# Auger |
||
|
Work Efficiency(hm2/h) |
0.4~0.7 |
||
|
Crops |
Rice, Wheat |
||
Big Capacity 150LFuel Tank, 1.4CBM Big GrainTank :
360 degree discharging pipe:
Vertical discharging pipe
