Quick Details
-
Application:
-
Workshop,Warehouse, Storage, Plant, Market
-
Color Temperature(CCT):
-
4000K/5000K/5700K/6500K
-
Lifespan (hours):
-
100000
-
Working Time (hours):
-
100000
-
Product Weight（kg）:
-
3.5
-
Type:
-
Linear High Bay Light
-
Model Number:
-
LH
-
Working Temperature(℃):
-
-40 - 50
-
Working Lifetime(Hour):
-
50000
-
Beam Angle(°):
-
30°/60°/90°/30*90°/60*90°/75*140°
-
Input Voltage(V):
-
100-277V
-
Light Source:
-
LED SMD 2835
-
CRI (Ra>):
-
80
-
IP Rating:
-
IP44
-
Support Dimmer:
-
1-10V Dimming
-
Dimension:
-
25cm/50cm/75cm/100cm
-
Exclusive patent Linear High Bay:
-
50W/100W/150W/200W
-
Finish:
-
Grey RAL9007
-
High luminous efficiency:
-
up to 140Lm/W
-
Material:
-
1060 Aluminum+ PC Lens
-
Options:
-
Micowave Motion Sensor
-
Lifespan(L70):
-
>100,000 Hours
-
PF:
-
≥0.95
-
THD:
-
≤20%
-
Surge protection:
-
L-N 2KV, L/N-PE 4KV
-
Certificated:
-
CE Rohs
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
140
-
Warranty(Year):
-
5-Year
-
Lamp Body Material:
-
Alluminum + PC
-
Application:
-
Workshop,Warehouse, Storage, Plant, Market
-
Color Temperature(CCT):
-
4000K/5000K/5700K/6500K
-
Lifespan (hours):
-
100000
-
Working Time (hours):
-
100000
-
Product Weight（kg）:
-
3.5
-
Type:
-
Linear High Bay Light
-
Model Number:
-
LH
-
Working Temperature(℃):
-
-40 - 50
-
Working Lifetime(Hour):
-
50000
-
Beam Angle(°):
-
30°/60°/90°/30*90°/60*90°/75*140°
-
Input Voltage(V):
-
100-277V
-
Light Source:
-
LED SMD 2835
-
CRI (Ra>):
-
80
-
IP Rating:
-
IP44
-
Support Dimmer:
-
1-10V Dimming
-
Dimension:
-
25cm/50cm/75cm/100cm
-
Exclusive patent Linear High Bay:
-
50W/100W/150W/200W
-
Finish:
-
Grey RAL9007
-
High luminous efficiency:
-
up to 140Lm/W
-
Material:
-
1060 Aluminum+ PC Lens
-
Options:
-
Micowave Motion Sensor
-
Lifespan(L70):
-
>100,000 Hours
-
PF:
-
≥0.95
-
THD:
-
≤20%
-
Surge protection:
-
L-N 2KV, L/N-PE 4KV
-
Certificated:
-
CE Rohs
Product Description
Specification
|
Wattage
|
50W
|
100W
|
150W
|
200W
|
|||
|
Number of modules
|
1 module
|
2 modules
|
3 modules
|
4 modules
|
|||
|
Luminous Efficacy
|
140LM/W
|
140LM/W
|
140LM/W
|
140LM/W
|
|||
|
Lumens Output
|
7000LM
|
14000LM
|
21000LM
|
28000LM
|
|||
|
LEDs QTY
|
72PCS
|
144PCS
|
216PCS
|
288PCS
|
|||
|
CCT
|
4000K/5000K/5700K/6500K (SDCM<5)
|
|
|
|
|||
|
Beam Angle
|
30°/60°/90°/30*90°/60*90°/75*140°
|
|
|
|
|||
|
Input voltage
|
AC100-277V 50-60Hz（1-10V Dimming）
|
|
|
|
|||
|
CRI
|
≥80
|
|
|
|
|||
|
IP/IK Rating
|
IP44/IK06
|
|
|
|
|||
|
Lifespan(L70)
|
>100,000 Hours
|
|
|
|
|||
|
Warranty & Certificated
|
Warranty & Certificated
|
|
|
|
|||

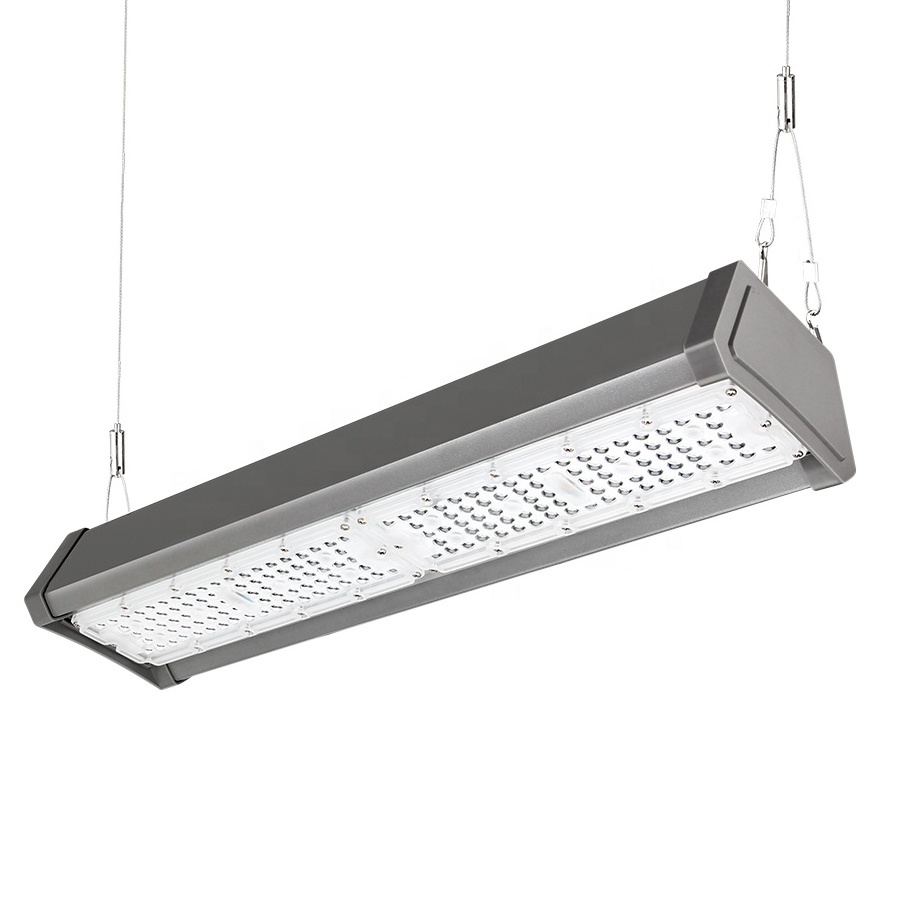

Exclusive patent LED LINEAR HIGH BAY LIGHT
*Born for Warehouse,Beam Angle 30°, 60° 90° 30*90*, 60*90°, 75* 140° Optional
*
1060 Aluminum heat-sink, stable and reliable
*
50W/100W/150W/200W Optional,AC100 27 7V,1-10V dimming,Microwave sensor optional
*
Lifespan(L70):> 100,000 Hours
*5 years warranty
Installation Process
