Portable -30~1200 c Dry Well/ Dry Block/ Dry Body Temperature Calibrator with temperature controller function

Portable -30~1200 c Dry Well/ Dry Block/ Dry Body Temperature Calibrator with temperature controller function

FOB Reference Price: Get Latest Price

≥1 Sets

US $150

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: ET2501-150A

Product Name:: Dry Well Temperature gauge Dry Block Gauge for sensor's calibration

Application:: Machinery, Chemical Industry, Food

Temperature Range:: -30~150c

Resolution rate:: 0.001c

Well depth:: 135mm

Power supply:: 220V,50Hz

Brand:: EAST TESTER

Vertical Temp Field:: 50mm from the bottoom of hole of soaking block is 1c

Color:: Dark Grey

Net Weight:: 10KG

Quick Details

Warranty:: 1 year

Place of Origin:: Zhejiang, China

Brand Name:: EAST TESTER

Model Number:: ET2501-150A

Product Name:: Dry Well Temperature gauge Dry Block Gauge for sensor's calibration

Application:: Machinery, Chemical Industry, Food

Temperature Range:: -30~150c

Resolution rate:: 0.001c

Well depth:: 135mm

Power supply:: 220V,50Hz

Brand:: EAST TESTER

Vertical Temp Field:: 50mm from the bottoom of hole of soaking block is 1c

Color:: Dark Grey

Net Weight:: 10KG

Product Overview

Portable -30~1200 c Dry Well/ Dry Block/ Dry Body Temperature Calibrator with temperature controller function
Portable Dry Block Calibration Dry Type Temperature Calibrator from -30~ 1200c

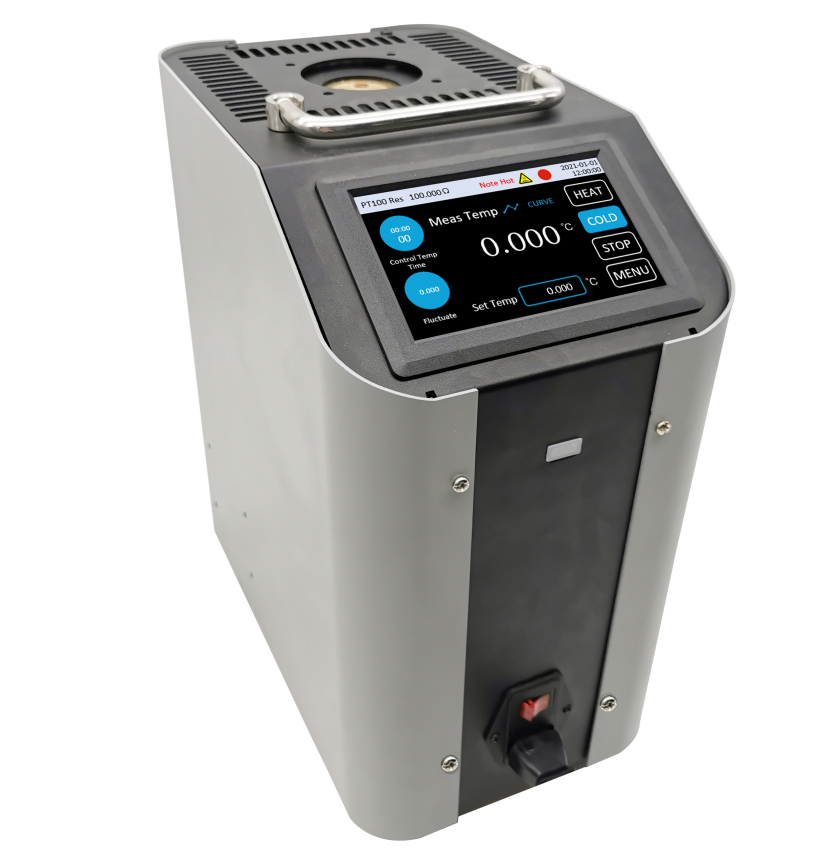

The portable touch screen dry block temperature calibrator (Dry well furnace) is easy to carry, easy to use, fast and reliable temperature efficiency, widely used in machinery, chemical industry, food, medicine and other industries. The problem of slow temperature rise and slow temperature rise is common in the existing dry test furnace in China, which leads to a long time for users to calibrate each time. The latest generation of dry well furnace of our company adopts the most advanced heating principle design in the world. It has the characteristics of fast temperature rise, fast temperature rise and fast temperature drop, which greatly improves the existing calibration efficiency.

Through reliable high precision temperature control circuit and high precision sensor, the precision is higher than that of other domestic manufacturers, and the technology has reached international standards. The first worldwide touching operation, simple and fast to use.

Portable Dry Block Calibration Dry Type Temperature Calibrator from -30~ 1200c

FEATURES AT A GLANCE

Temperature Range: -30~1200c

Resolution Rate: 0.01c

Trademark: EAST TESTER

The heating block could be customized according to customer's requirement.

Dry Well Dry Block Temperature Calibrator

Packed With Aluminum Box

Wooden Box

PRODUCT SPECIFICATIONS

Model	ET2501-150A	ET2501-150B	ET2501-650	ET2501-1200
temperature range	-20℃~150℃	-30℃~150℃	50℃~650℃	300℃~1200℃ /100-1200℃
Heating Rate	25℃~50℃6min 50℃~100℃15mins 100℃~150℃20mins 25℃~0℃15mins 0℃~-20℃15mins -20℃~-30℃ 22mins			50℃~300℃：7mins 50℃~650℃：30mins	25℃~100℃：10mins； 100℃~600℃：15mins； 600℃~800℃：20mins 800℃~1200℃：30mins；
Display accuracy	≤±0.1℃	≤±0.1℃	Below 400℃：≤±0.35℃ 400-650℃：≤±0.5℃	≤±1.2℃
Insertion depth	160mm	160mm	150mm	135mm
Average heat block diameter	36mm	32mm	32mm	39mm
Temperature field stability	≤±0.02℃	≤±0.02℃	≤±0.05℃	≤±0.2℃
Horizontal temperature field	≤±0.05℃	≤±0.05℃	≤±0.05℃	≤±0.25℃
Vertical temperature field	The deviation in the range of 50mm calculated from the bottom of the hole of the soaking block is 1 degree
Temperature unit	℃ or ℉
Temp Accuracy	0.1%
Display resolution	0.01℃ / 0.001℃
maximum power	Negative temperature type: 3000W, medium temperature type: 1200W, high temperature type: 3000W
weight(Net weight)	Negative temperature type: 10kg, medium temperature type: 10kg, high temperature type: 8kg
weight (Containing packaging)	Negative temperature type: 19kg, medium temperature type: 19kg, high temperature type:16kg Packaging includes aluminium box and transport wooden box
Demension	Negative temperature type and high temperature type: 310190340mm, medium temperature type: 250150310mm
Use environment	Ambient temperature 0-50℃, relative humidity less than 95%(no condensation)
Optional USB Communication	The standard dry block temperature calibrator is with no USB FUNCTION, please contact supplier for optional USB function.

Standard Heating Block:

Can be customized according to customer's requiremnet
